Electric Speed Control (ESC) Brushed Speed Control (ESC)
    Hobbywing QuicRun WP-Crawler-Brushed 80A Waterproofing ESC for Cars
    0Q0105050404
    Price(USD):$42.50     Back Order
    Price(USD):Member Price:$42.50     Back Order Sign in for member price
    Price(USD):Buy:$42.50     Back Order
    Add To Cart     Add To Wish List   Notify Me When Available.
    SKU QR-4080
    SKUBrand QR-4080HOBBYWING
    SKUAdded QR-40802021/10/23
    SKUUpdated QR-40802021/10/23
    SKU
    SKU

    Tags: Hobbywing_QuicRun_WP-Crawler-Brushed_80A_Waterproofing_ESC_for_Cars

    Features:



    Specifications:

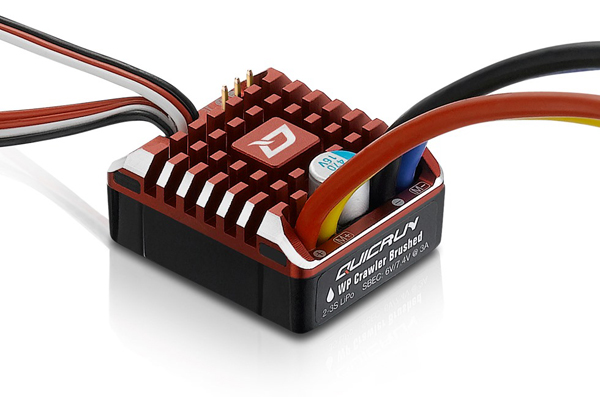

    Hobbywing QuicRun WP-Crawler-Brushed 80A Waterproofing ESC for Cars


    Product Name

    QuicRun WP Crawler Brushed

    Product Number

    30112750

    Type

    Scale

    1/8th & 1/10th

    Brushed/Brushless

    Brushed

    Waterproof

    Waterproof

    Specifications

    Cont./Peak Current

    80A/400A

    Input Voltage

    2-3S Lipo/5-9 Cell NiMH

    BEC Output

    Switch  Mode: 6V/7.4V@3A

    Wires & Connectors

    Input Wires

    Red-14AWG-200mm*1 / Black-14AWG-200mm*1

    Output Wires

    Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1

    Input Connectors

    XT60 Connectors

    Output Connectors

    No

    (Note: All the wire length above is the original length not the length you see from the outside.)

    ESC Programing via

    SET Button on ESC

    Supported

    LED Program Box

    Supported

    LCD Program Box

    Not Supported

    WiFi Module

    Not Supported

    OTA Programmer

    Not Supported

    Program Port

    Separate Program Port

    Firmware

    Firmware Upgrade

    Not Supported

    Size & Weight

    Size

    36.2x31.6x17.0mm

    Weight

    58.5g (w/Wires)

    Applications

    Motors

    Brushed Motor (540/550/775 size motors)

    Vehicles

    1/8th,1/10th Rock Crawlers

    KV Rating/T Count

    Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<30000@7.4V
    Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<20000@7.4V

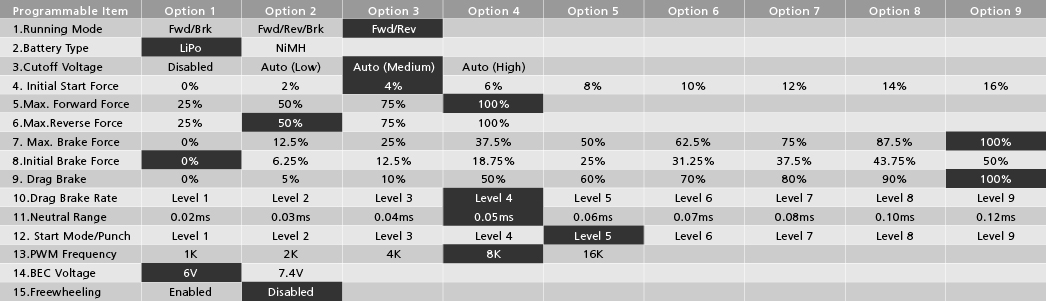

    Programmable Items


    Includes/Requires:

    Includes:
    1 x ESC QuicRun WP-Crawler-Brushed 80A
