| SKU | 2320SL-11 |
|---|---|
| Brand | HOBBYWING |
| Added | 2024/03/06 |
| Updated | 2024/03/06 |
Specifications:

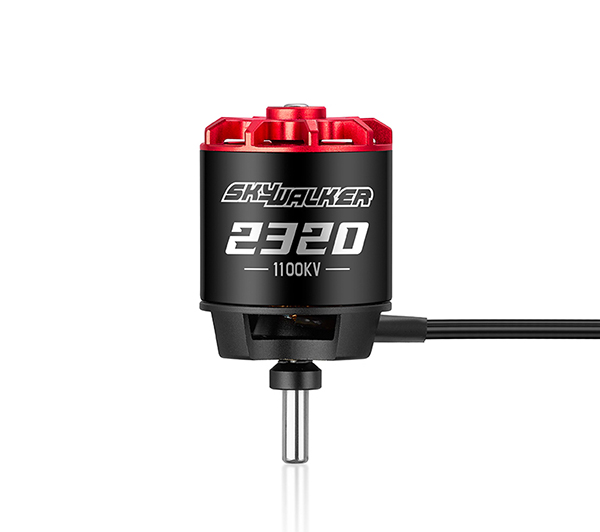

Hobbywing SKYWALKER 2320SL 1100KV Airplane Brushless Motor
Manufacturer code: 30415101
Recommended Battery: 3-4S LiPO
KV: 1100KV
No-load Current: 1.8A/ 14.8V
Internal resistance: 33mΩ
Maximum continuous current: 41A/ 180s
Maximum continuous power: 580W/ 194s
Motor Size: Φ28.8 x 54mm
Shaft Diameter: 4mm
Clip mounting hole thread: Φ12mm-3xM2.5
Base thread: Φ16mm-2xM3/Φ19mm-2xM3
Motor Weight: 92g
Recommend configuration (not included):
ESC: Skywalker-V2 40A - 50A
propeller:
3S：10x5E，10x6E，11x5.5E
4S：8x6E，9x4.5E
Recommended Battery: 3-4S LiPO
KV: 1100KV
No-load Current: 1.8A/ 14.8V
Internal resistance: 33mΩ
Maximum continuous current: 41A/ 180s
Maximum continuous power: 580W/ 194s
Motor Size: Φ28.8 x 54mm
Shaft Diameter: 4mm
Clip mounting hole thread: Φ12mm-3xM2.5
Base thread: Φ16mm-2xM3/Φ19mm-2xM3
Motor Weight: 92g
Recommend configuration (not included):
ESC: Skywalker-V2 40A - 50A
propeller:
3S：10x5E，10x6E，11x5.5E
4S：8x6E，9x4.5E
Includes/Requires:
Includes:1 x motor Skywalker 2320SL
1 x accessory bag
