SKU | 2826SL-85 |
---|---|
Brand | HOBBYWING |
Added | 2024/08/02 |
Updated | 2024/08/02 |
Specifications:

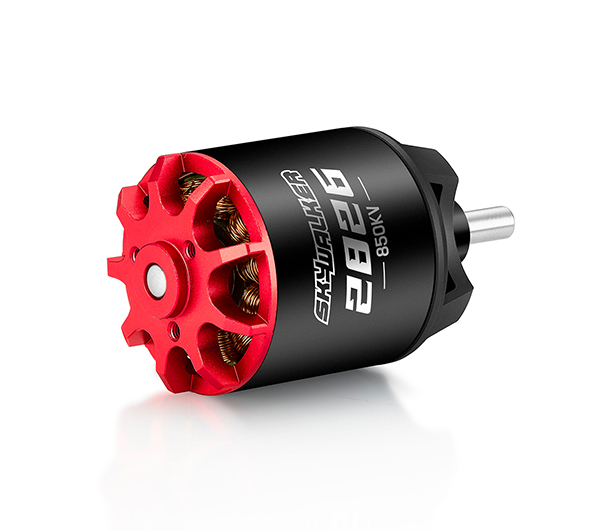

Hobbywing SKYWALKER 2826SL 850KV Airplane Brushless Motor
Manufacturer code: 30415251
Recommended Battery: 3-4S LIPO
KV: 850KV
No-load Current: 2.55A/14.8V
Internal resistance: 20.5mΩ
Number of slot poles: 12N14P
Maximum continuous current: 69A/2min11s
Maximum continuous power: 1006.5W/1min49s
Motor Size: Φ35.1 *66mm
Shaft Diameter: 5mm
Bearing model: 685ZZ(D11*d5*5)
Phase cable: 16AWG
Cable Length: 110mm
Base thread: Φ16mm-2xM3/Φ19mm-2xM3
Motor Weight: 176.2g
Recommend configuration (not included):
ESC: Skywalker 80A
propeller:
4S:12x6E,13x6.5E
3S:14x6E,15x6E,15x8E
Clip mounting hole thread: Φ15mm-3*M2.5
Base thread: Φ19mm-2*M3/Φ25mm-2*M3
Recommended Battery: 3-4S LIPO
KV: 850KV
No-load Current: 2.55A/14.8V
Internal resistance: 20.5mΩ
Number of slot poles: 12N14P
Maximum continuous current: 69A/2min11s
Maximum continuous power: 1006.5W/1min49s
Motor Size: Φ35.1 *66mm
Shaft Diameter: 5mm
Bearing model: 685ZZ(D11*d5*5)
Phase cable: 16AWG
Cable Length: 110mm
Base thread: Φ16mm-2xM3/Φ19mm-2xM3
Motor Weight: 176.2g
Recommend configuration (not included):
ESC: Skywalker 80A
propeller:
4S:12x6E,13x6.5E
3S:14x6E,15x6E,15x8E
Clip mounting hole thread: Φ15mm-3*M2.5
Base thread: Φ19mm-2*M3/Φ25mm-2*M3
Includes/Requires:
Includes:1 x motor Skywalker 2826SL
1 x accessory bag
