    JX4 Quick Release Connector Male/Female
    J01050508010
    Price(USD):$2.30     In stock
    Price(USD):Member Price:$2.30     In stock Sign in for member price
    Price(USD):Buy:$2.30     In stock
    Add To Cart     Add To Wish List
    SKU JX-4MPX
    SKUAdded JX-4MPX2022/05/24
    SKUUpdated JX-4MPX2022/05/24
    SKU
    SKU

    Tags: JX4_Quick_Release_Connector_Male_Female

    Specifications:

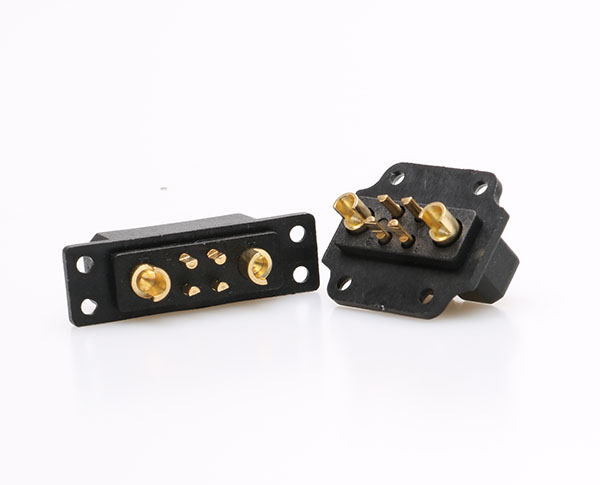

    JX4 Quick Release Connector Male/Female



    - Product name: Servo quick release connector

    - Model: JX-4

    - Metal material: gold-plated brass


    - Plastic material: PA


    - Instantaneous current: (large) 60A / (small) 7A


    - Rated current: (large) 30A/(small) 5A


    - Rated voltage: DC 500V


    - Contact resistance: 0.3 mΩ


    - Flame retardant grade: UL94 V0


    - Operating temperature: -20C ~ 120C


    - Recommended use times: 1000 times


    - Cable specification: (large) 12AWG/(small) 20AWG





    Applications.


    Can be used to connect the following products.


    ● Servos


    ●Nautical lights


    ● Electric landing gear

    Includes/Requires:

    INCLUDES:
    1 x JX4 male connector
    1 x JX4 female connector
