Tags: multi-rotor,  brushless  motor

Features:

The prop adaptor of this series is mounted to the motor can with 3 screws, it gives better centralization and balance.

- Long-life Japanese NMB ball bearings.
- Efficient Japanese Kawasaki stator steel
- Rare earth magnets stable up to 180℃
- Oxygen free pure copper wires
- CNC machined aluminum case
- Silicone wire leads
- Patented balance techniques
- Unique wiring method

Specifications:

Model: V2216-10 900KV

Stator diameter: 22mm
Stator length: 16mm
Shaft diameter: 3mm (no exposing part)
Motor size: Φ27.8×34mm (diameter x length)
Weight: 75g
Idle current @ 10V: 0.4A
Cell number: 2-4S
Max current: 20A
Max power: 210W
Max efficiency current: 5-17A, >80%
Internal resistance: 135mΩ
Prop adaptor shaft diameter: 5mm

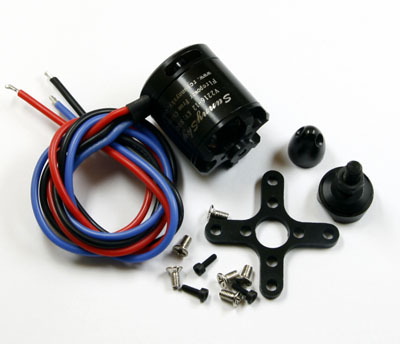

Includes/Requires:

Includes:
1 x motor
1 x prop adaptor
1 x motor mount

*Connectors are not included
