V02080900030

Price(USD):	$24.71     Back Order
Price(USD):Member Price:	$24.71     Back Order Sign in for member price
Price(USD):Buy:	$24.71     Back Order Add To Cart     Add To Wish List   Notify Me When Available.

Tags: multi-rotor,  brushless  motor

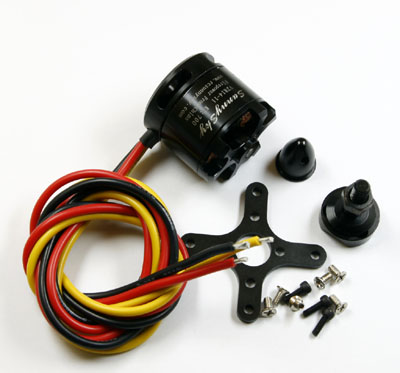

Features:

The prop adaptor of this series is mounted to the motor can with 3 screws, it gives better centralization and balance.

- Long-life Japanese NMB ball bearings.
- Efficient Japanese Kawasaki stator steel
- Rare earth magnets stable up to 180℃
- Oxygen free pure copper wires
- CNC machined aluminum case
- Silicone wire leads
- Patented balance techniques
- Unique wiring method

Specifications:

Model: V2814-11 KV700

Stator diameter: 28mm
Stator length: 14mm
Shaft diameter: 4mm (no exposing part)
Motor size: Φ35×36mm (diameter x length)
Weight: 120g
Cell number: 3-4S
Max current: 21A
Max power: 220W
Prop adaptor shaft diameter: 5mm
Wire gauge: 16AWG

Includes/Requires:

Includes:
1 x motor
1 x prop adaptor
1 x motor mount

*Connectors are not included
