SKU | UP11AC |
---|---|
Added | 2023/10/10 |
Updated | 2023/10/10 |
Features:

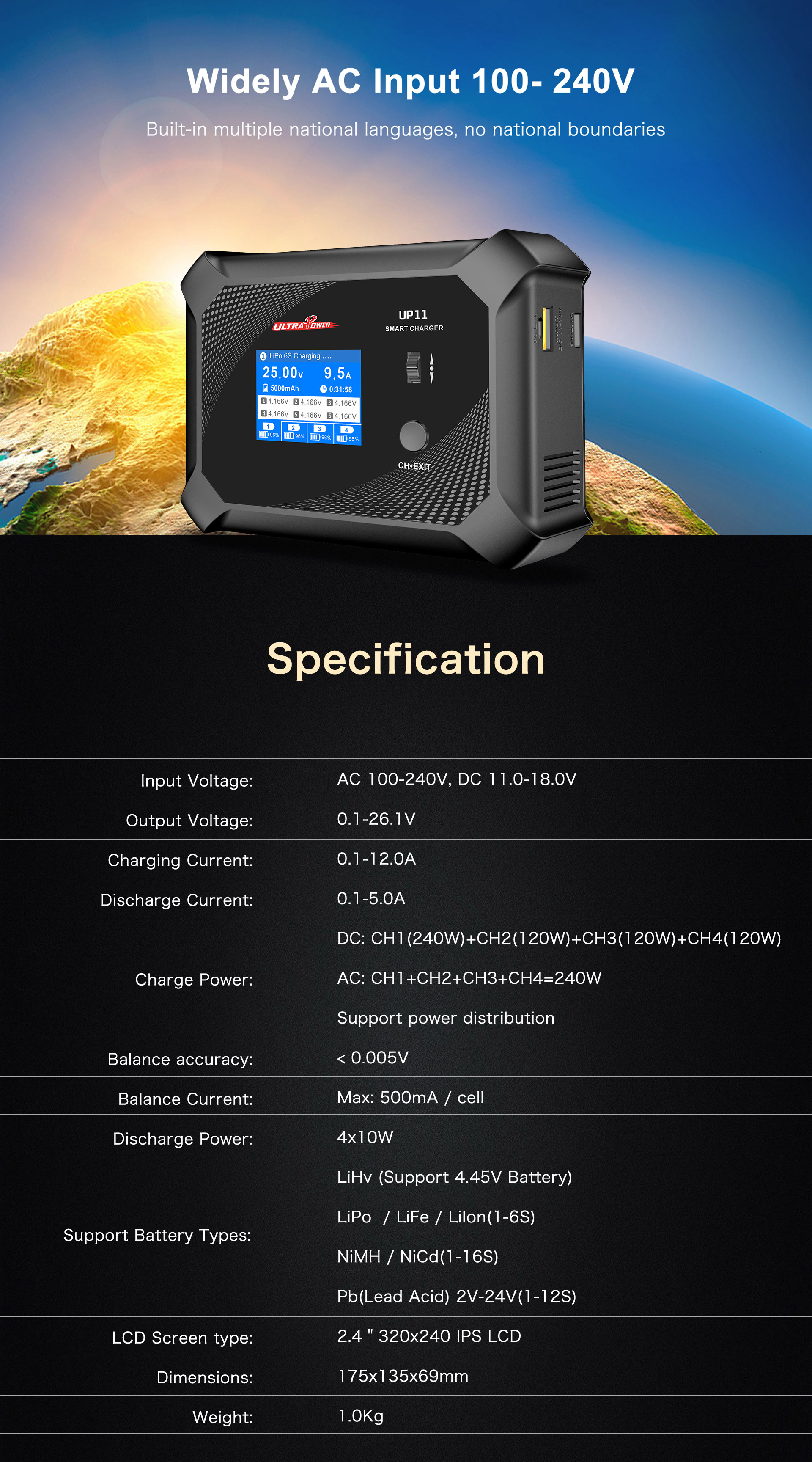

Specifications:

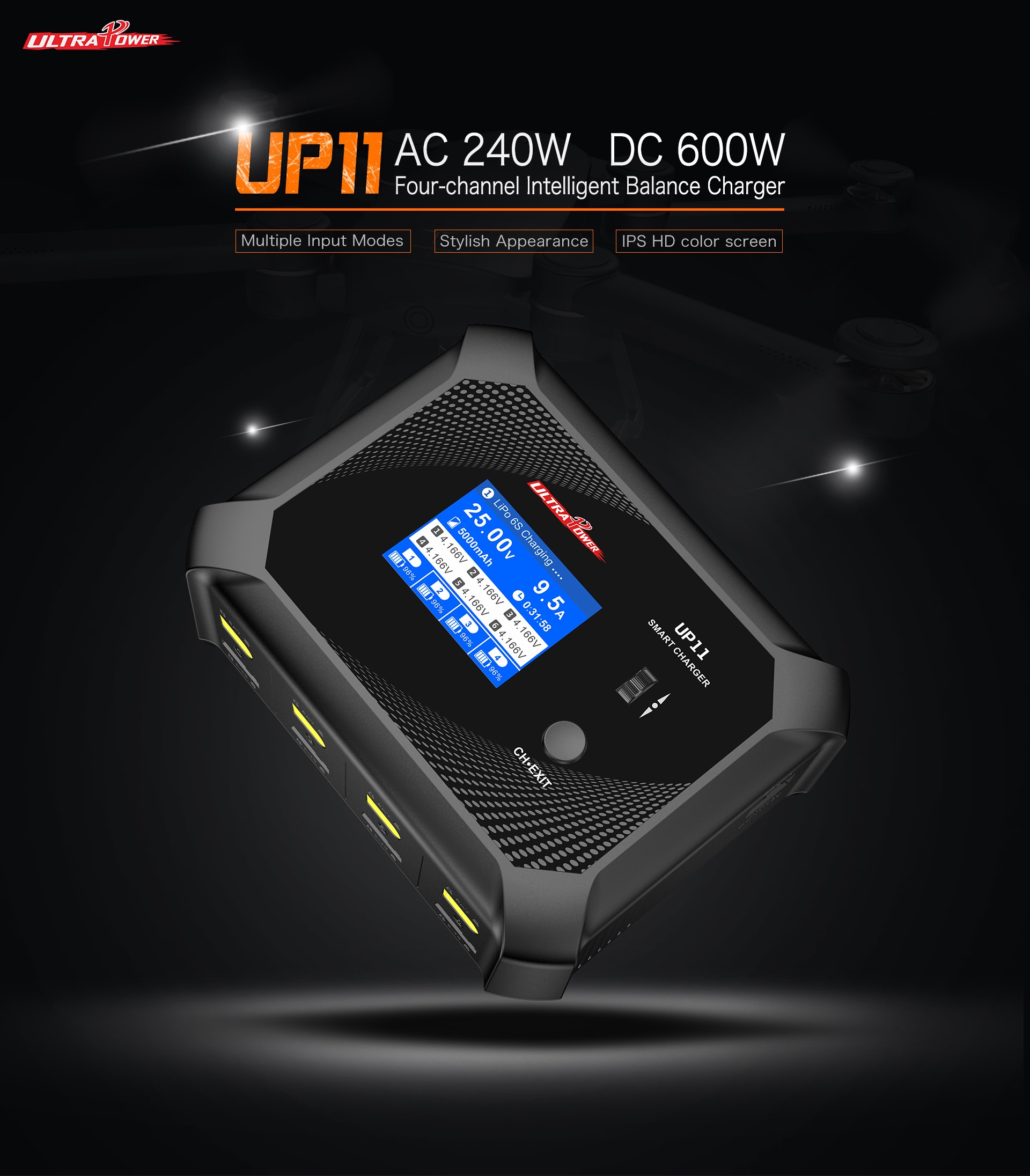

UltraPower UP11 AC 240W, DC 600W 4-Channel Balance Charger/ Discharger
Input voltage:AC 100-240V, DC 11.0-18.0V
Output voltage: 0.1-26.1V
Charge Current: 0.1-12.0A
Charge Power DC Input: CH1(240W)+CH2(120W)+CH3(120W)+CH4(120W)
AC input: Max. 240W
(CH1+CH2+CH3+CH4=240W)

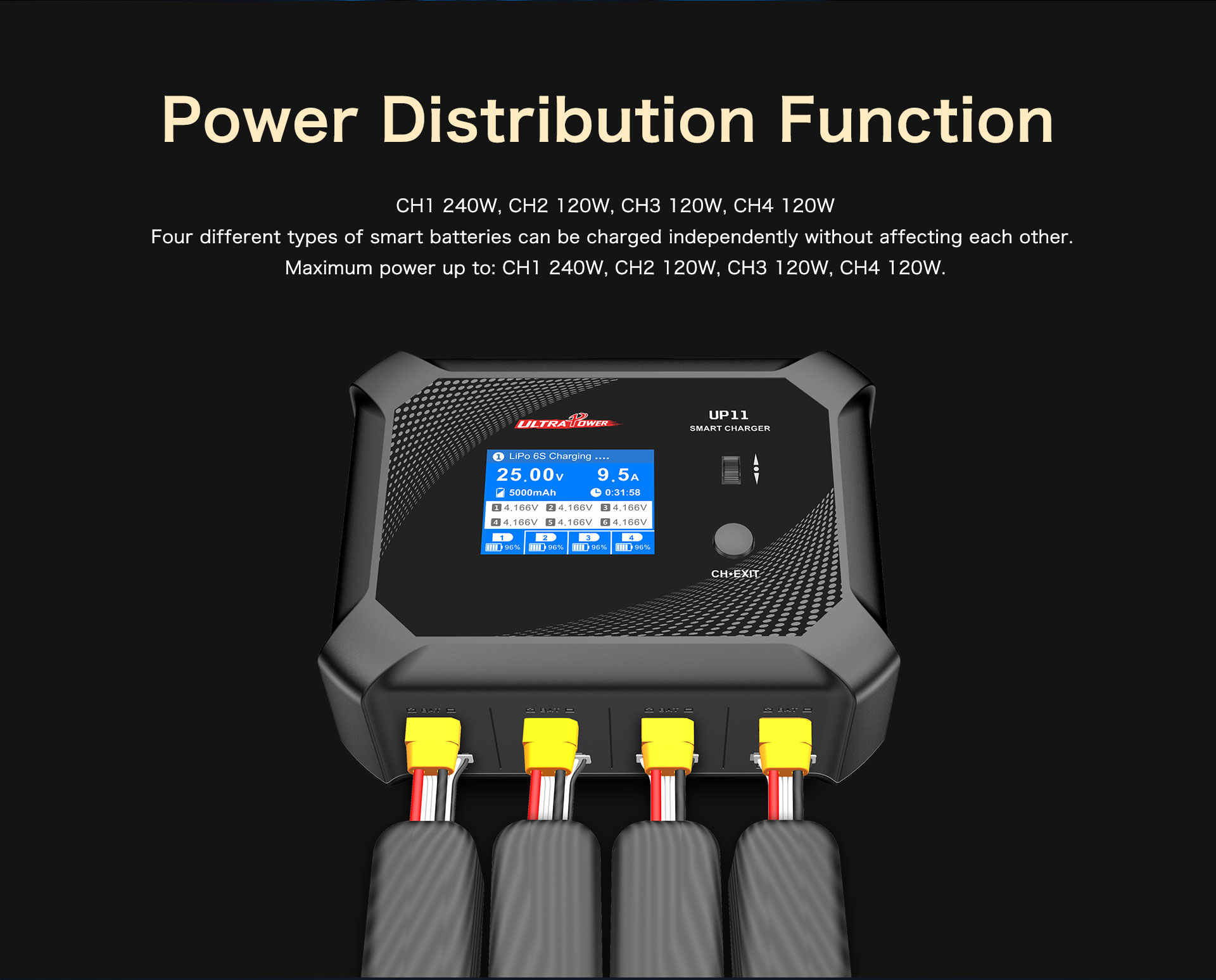

Support power distribution
Balance current: Max.500mA/cell
Discharge Power: 4x10W
LiHV(Support 4.45V battery)
LiPo/LiIon/LiFe cell count: 1-6 cells
NiCd/NiMH battery cell count: 1-16 cells
Pb battery voltage: 2V-24V (1-12 cells)

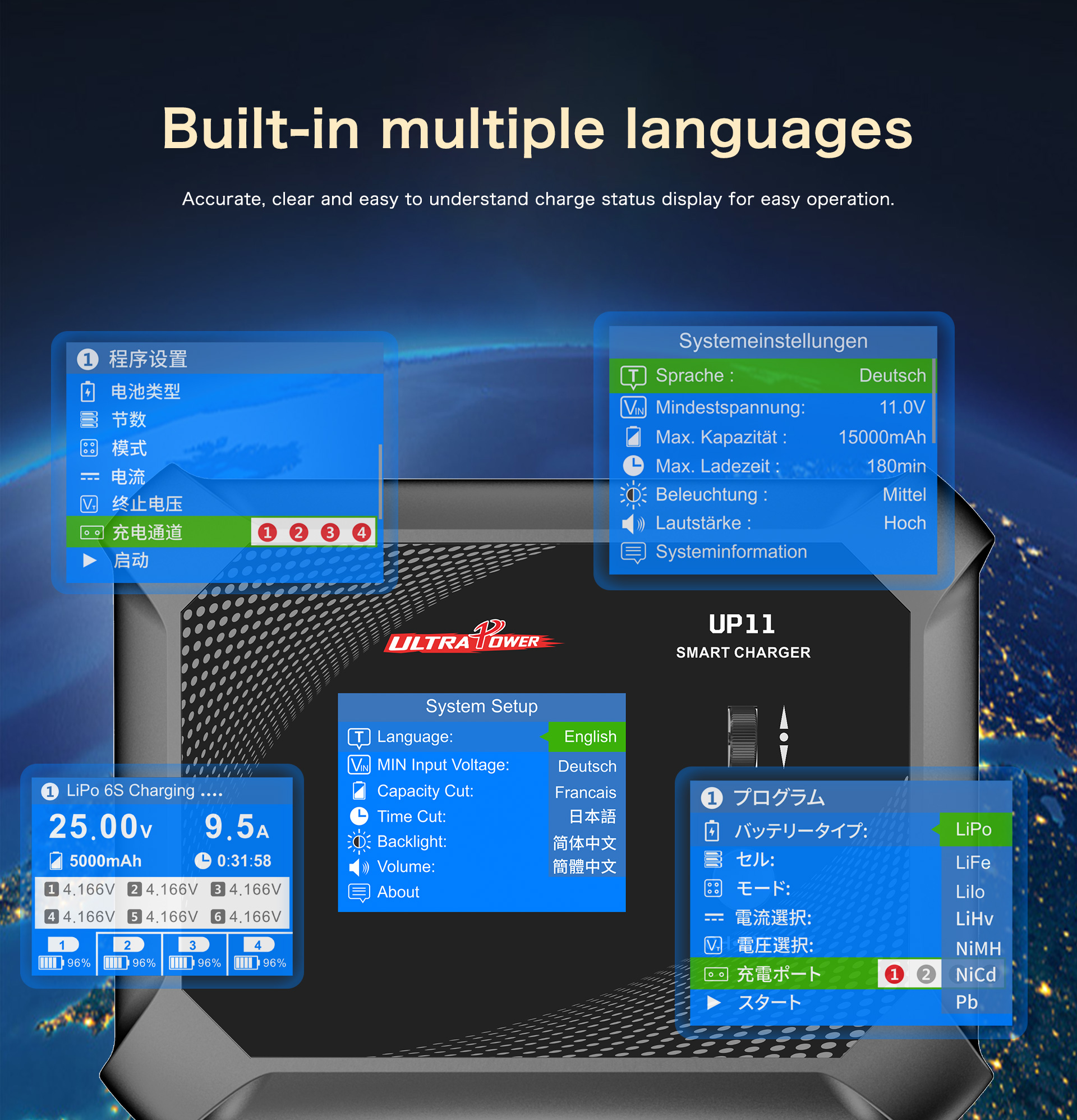

LCD Screen type: 2.4〃320×240 IPS LCD
Dimensions: 175x135x69mm
Weight: 1.0kg
Includes/Requires:
Includes:1 x UP11 charger
