Tags: fpv  carrier,  Quadcopter,  Four-roter,  four-axile  helicopter

Features:

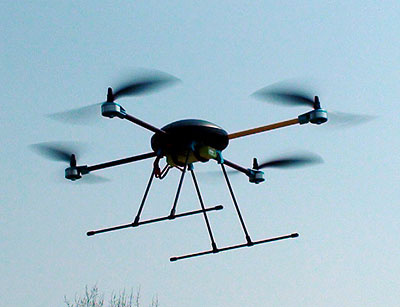

Main features of the T580 quadcopter:

1.ARTF

1)Inertial-based(6DOF IMU) self-stabilization system.Good for AV/AP applications,but not suitable for acrobatics flights.

2)4 channels Tx is enough.No more switchs for the flight modes

3)ARTF,no extra settings needed.Put on the props,the battery and the RX,then turn on the Tx to take off !
.
2.AP/AV based

1).Auto Barometer-based altitude hold if no throttle input changed in 2s..

2)X and Corss flight modes available.Only Cross mode was available in the beginning.But new improvements for the X mode had been tested successfully.

3)Optional single axis camera mount(pitch) with double axis self-stabilization(pitch and roll).

4)Larger MTM distance(580mm),larger payload (<580g),and longer flight time(25 mins with 3S Battery).Special props offered by the manufacture.

3.Powerful

1)Optional GPS position hold(The GPS module still in internal testing, not included in this kit).

2)Buzzer warning for low battery,and optional lights for night flight(The interfaces are available,but soldering should be done before coming out of the factory according to the demands of the costomers.In order to avoid some trouble of making the hardware easy to be damaged).

3)Other features considering to be supported in the future:Configuration Software available and Firmware upgradable.

*This is the ARTF kit, basically speaking, you only need a receiver and transmitter to get it ready for flying.

Specifications:

Machine size	608 × 608 × 243	mm	±3mm
Expand size of the largest	885 × 885 × 243	mm
Motor Wheelbase t	Diagonal line, the two motor centers wheelbase	580mm	±3mm
Propeller	1260, positive and negative special paddle	12”
Battery	LiPo 3S 2200mAh 20C	1P
Single Weight	No battery, receiver, load	730g	±10g
Take-off weigh	3S 2200mAh 1P Battery, receiver, head	950g	standard
Payload	Camera card	≤230g	standard
Maximum power pulled	Using the standard battery 1P	2400g	-
Maximum payload	Using the standard battery 1P	≤580g	-
Maximum takeoff weight	Using the standard battery 1P	1800g	Safety limit
Flight distance	Remote control device and battery capacity by the decision	-	-
Flight Time	3S 2200mAh 1P Battery, receiver	12 minutes	No wind hover
Wind strength	≤4	Class	-

Includes/Requires:

Includes:

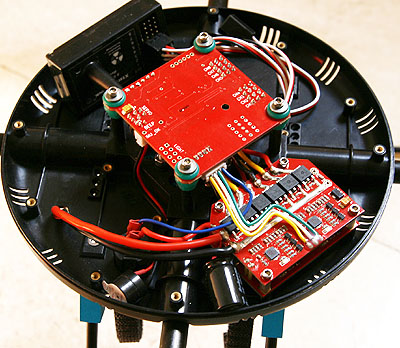

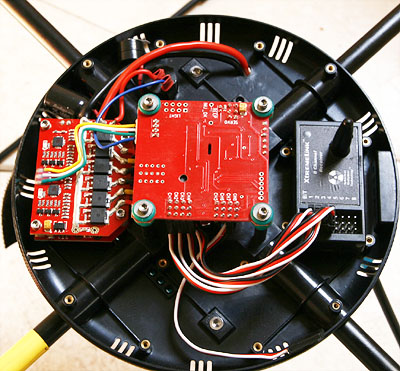

1x Pre-installed aircraft main body, including brushless ESC, flight control panel, motor.

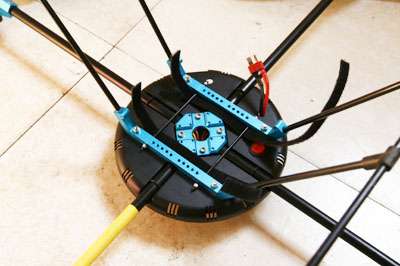

1x pre-installed stands unit, including 4 fixed nuts.

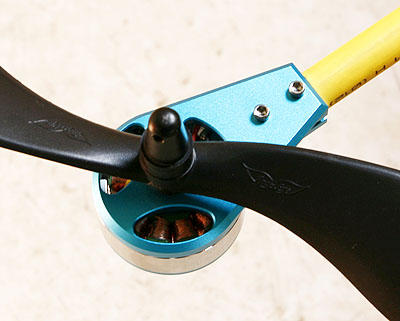

3x pairs of special propellers in positive and negative.
4x bullet blade folders.
1x Velcro


* Pan & tilt for camera is not included.

Comments:

More resources:
Discussion: on-going discussion on rcgroups.
