M0D090105050

Price(USD):	$16.48     Back Order
Price(USD):Member Price:	$16.48     Back Order Sign in for member price
Price(USD):Buy:	$16.48     Back Order Add To Cart     Add To Wish List   Notify Me When Available.

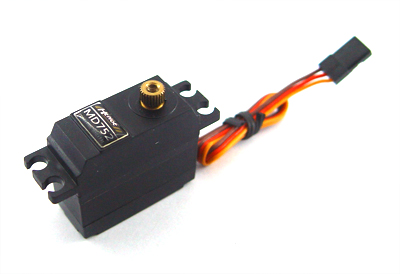

Tags: 28g_6.3kg_.11_sec_Metal_Gear_Digital_Servo_MD-752

Features:

Features：

Use metal gears of high intensity and accuracy, and abrasion resistance to make sure the output deviation of servo varies small after long time running.
Use Japanese raw material to produce outer shell, which is more sturdy and durable and can bear 120℃ temperature.
Use coreless Motor of high quality to develop the efficiency and life of servo
Use potentiometers imported from Japan, which are of the same quality and type as Futaba servos, and the life can b2000,000times.
MD752 applied to 450 and 500 helicopter swash plate

Specifications:

Specifications：
Operating voltage range（V） 4.5～6.0V
Operating temperature range（℃） -20～60
Operating speed 0.13 sec/60°（sec/60° 4.8V）
0.11 sec/60°（sec/60° 6.0V）
Torque 5.1 Kg·cm（Kg·cm 4.8V）
6.3 Kg·cm（Kg·cm 6.0V）
Dead band width（usec） ≤3usec
Midpoint pulse 1520us broadband
Maximum rotation angle ±65°
Motor Five-poles coreless cup
Potentiometer imported from Japan
Size（mm） : 35.0 x 15 x 29.2mm
Weight（g） 28g
Gear 6 Metal Gears
Connecting wire length（cm） 21cm

Includes/Requires:

Includes:
1 x digital servo with servo horns
