| SKU | FT6335 |
|---|---|
| Added | 2020/10/08 |
| Updated | 2020/10/08 |
Specifications:

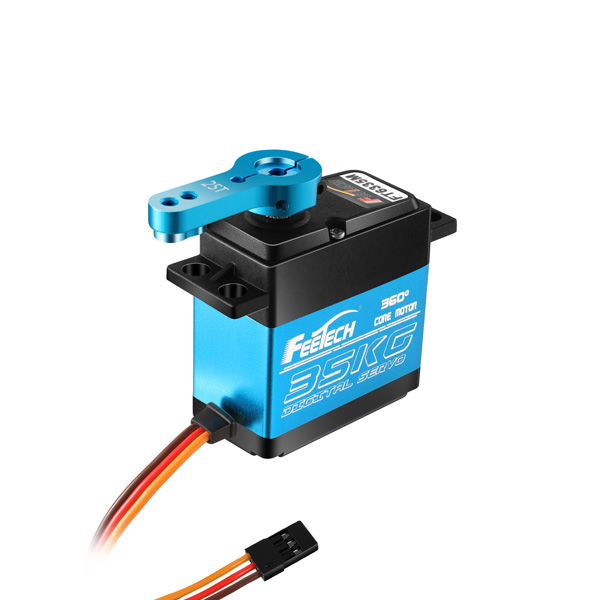

FeeTech 7.4V 35kg Metal Gear 360 degree Magnetic Coded Digital Servo FT6335M
型 号 Model： | FT6335M |
产品名称 Product Name: | 7.4V 35kg.cm数码360度磁编码铝中壳钢齿轮铁芯舵机/7.4V 35kg.cm digital 360 degree magnetically coded aluminum mid-shell servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
尺寸 Size: | A：55mm B：20mm C:43mm |
重量 Weight: | 67土1g |

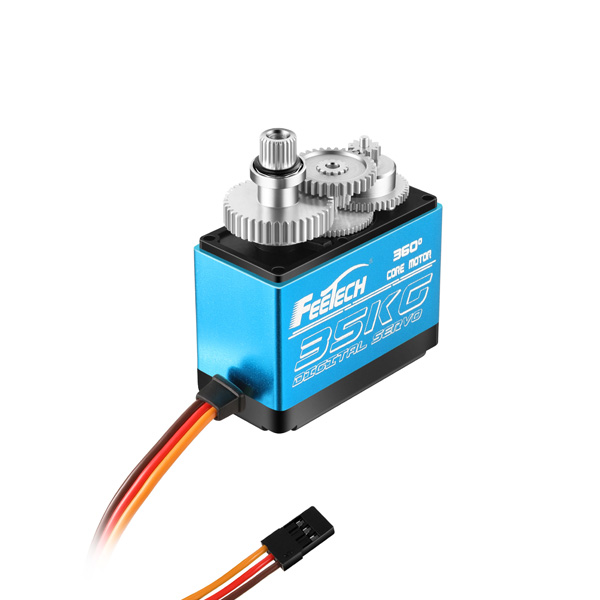

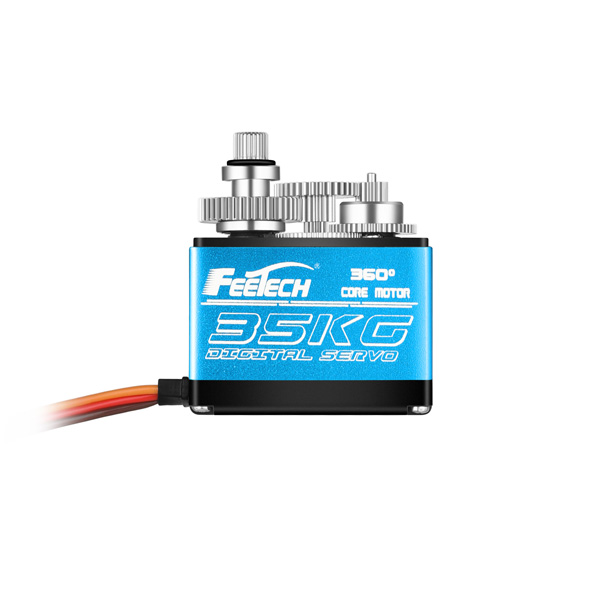

| 齿轮类型 Gear type: | Steel tooth |
| 机构极限角度 Limit angle: | NO limit |
| 轴承 Bearing: | Ball bearings |
| 出力轴 Horn gear spline: | 25T/5.9mm |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | PA+A lumi num |
| 舵机线 Connector wire: | 30CM |
| 马达 Motor: | Core Motor |
工作电压Operating Voltage Range: | 6V-7.4V |
| 静态电流Idle current (at stopped) . | 6MA@7.4V |
空载速度 No load speed: | 0.192sec/60°@7.4V |
| 空载电流 Runnig current(at no load) : | 180mA@7.4V |
堵转扭矩 Peak stall torque: | 35.5kg.cm@7.4V |
额定扭矩 Rated torque: | 11.8kg.cm@7.4V |
| 堵转电流 Stall current: | 3.9mA@7.4V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digitalcompara tor |
| 脉冲宽度范围Pulse width range | 500~2500usec |
| 中立位置Stop position | 1500μ sec |
| 旋转角度Running degree | 360° .at500- > 2500 μ sec) |
| 死区宽度Dead band width | ≤4.μ sec |
| 旋转方向Rotating direction | 逆时针Counterclockwi se (在1 500→2000μ sec) |

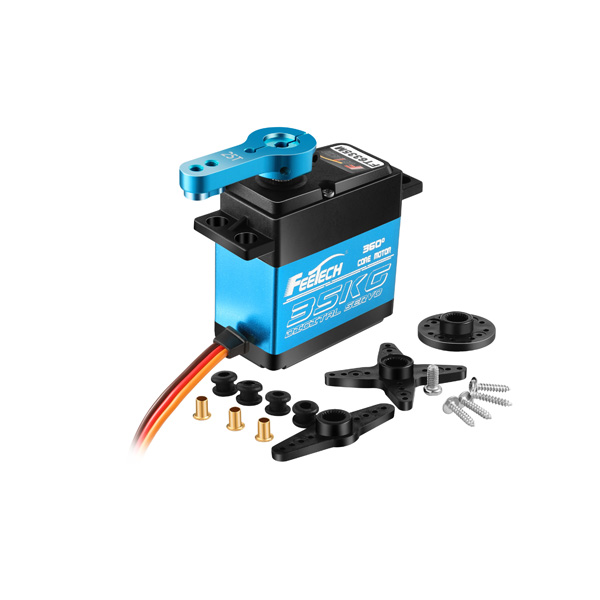

Includes/Requires:
Includes:1 x servo
1 x accessory bag
