| SKU | POWER-H25H |
|---|---|
| Brand | Power HD |
| Added | 2021/05/04 |
| Updated | 2021/05/04 |
Specifications:

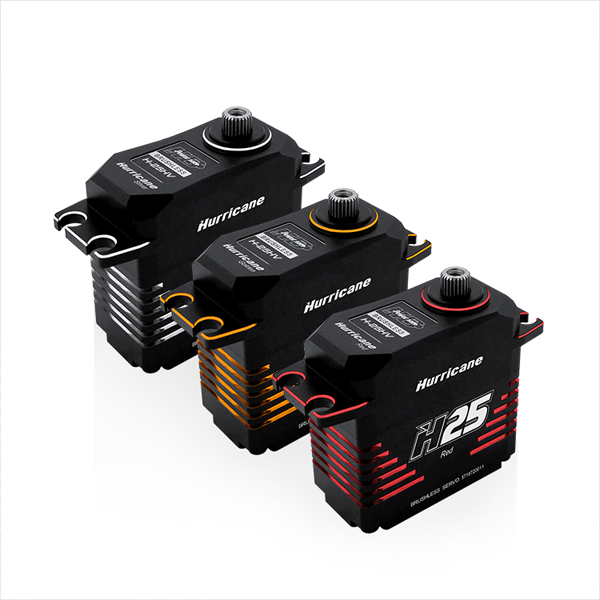

PowerHD H25 High Speed Digital Servo (for Helicpter swashplate)
Torque(6.0V): 21.5 kg-cm (298.6 oz/in)
Torque(7.4V): 25.0 kg-cm (347.2 oz/in)
Torque(8.4V): 30.0 kg-cm (416.6 oz/in)
Speed: 0.085 sec (6.0V) │ 0.075 sec (7.4V) │
Speed: 0.068 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 75.0 g (2.65 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Titanium & Steel
Operating Temperature: -20℃~60℃
Working frequence：1520μs / 333hz
Size：40.0 x 20.0 x 38.5 mm ( 1.57 x 0.79 x 1.52 in)
Includes/Requires:

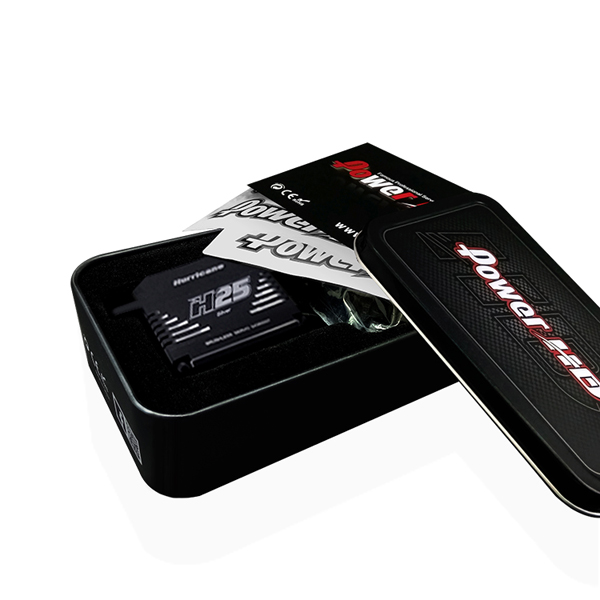

Includes:1 x servo

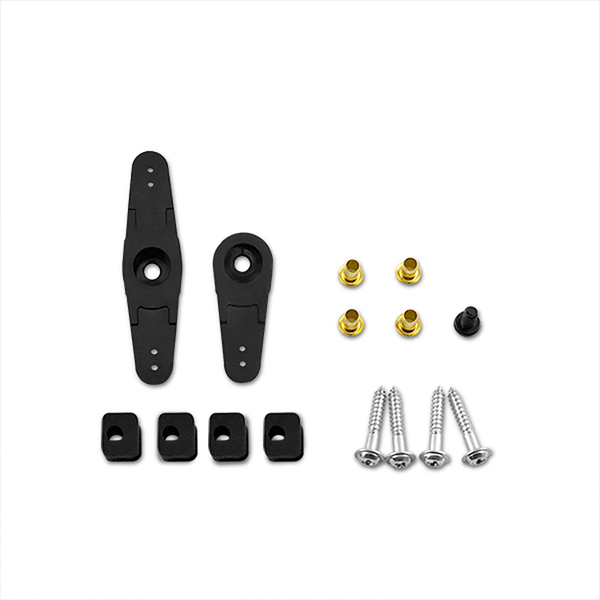

1 x accessory bag
