PowerHD WH-40KG All Metal HV Water-proofing Digital Servo (Compatible with TRX4 KM5)
    SKU WH-40KG
    Brand Power HD
    Added 2021/05/04
    Updated 2021/05/04

    Tags: PowerHD_WH-40KG_All_Metal_HV_Water-proofing_Digital_Servo_Compatible_with_TRX4_KM5

    Specifications:

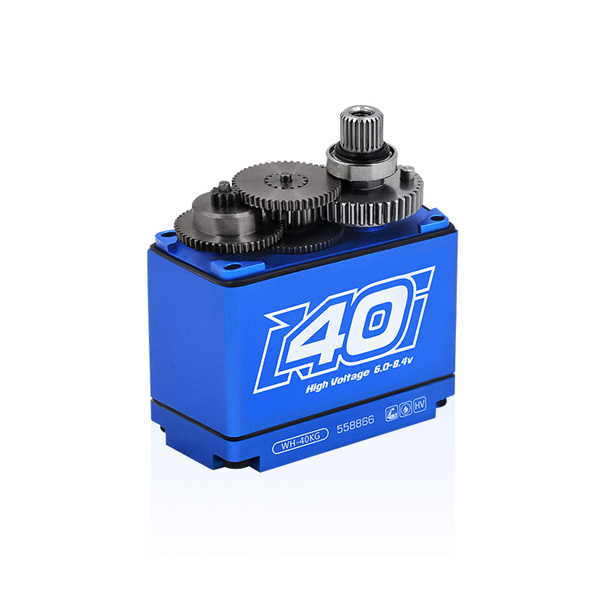

    PowerHD WH-40KG All Metal HV Water-proofing Digital Servo (Compatible with TRX4 KM5)


    WH-40KG
    Torque(6.0V): 29.0 kg-cm ( 402.7 oz/in)
    Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in)
    Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in)
    Speed: 0.20 sec (6.0V)│0.18 sec (7.4V)│0.17 sec (8.4V)
    Operating Voltage:6.0 ~ 8.4V DC Volts
    Weight: 82 g (2.89 oz)
    Bearing Type:Ball Bearing x 2
    Motor Type:Coreless Motor
    Gear Type:Titanium & Steel
    Operating Temperature:-20℃~60℃
    Working frequence:1520μs / 333hz
    Size:40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in)

    Includes/Requires:

    Includes:
    1 x servo

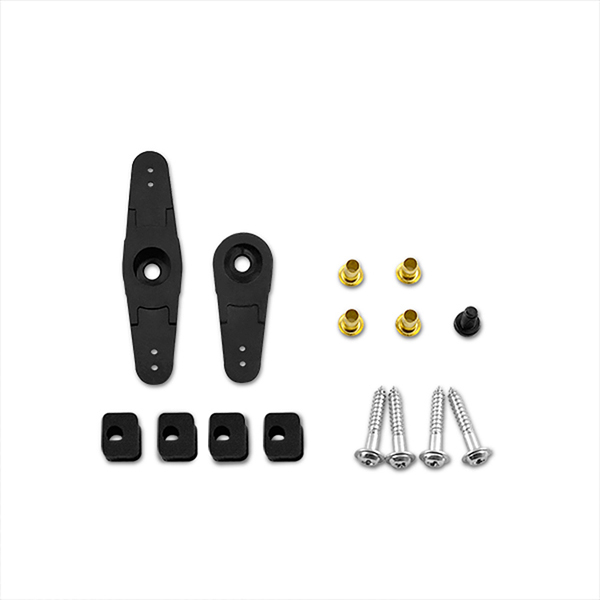

    1 x accessory bag
