   Multi-rotors Flight Controller (FC) NAZE32 32-bit Brush Flight Control for Tiny Mini Racing Drones (support 6-axis)
   FPV/ Aerial Photography Flight Controller/OSD/ GPS/ Stablizer
SKU:  NAZE32B
NAZE32 32-bit Brush Flight Control for Tiny Mini Racing Drones (support 6-axis)
Customers rating.
Add To Wish List
Added:2016/09/02
Updated:2017/02/15
Follow Us on:


  Tags: NAZE32 32-bit Brush Flight Control for Racing Drones (support 6-axis)

Features:
Features:


1. NAZE32_BRUSH is in the revision on the basis of NAZE32 flight control,it is a 32bit brush controller base on NAZE32 firmware .


2. The flight control support 1S (4.2V) and 2S (8.4V) power supply, 2S power can bring flying experience more violence.


3. Independent design of the circuit structure, comes with the pressure reduction technology, whether it is 1S or 2S power input, UART1/2 output 5V, UART3 output 3.3V


4. With a large current NMOS transistors, operating current of up to 10A or more.


5. Support for PPM, SBUS, DSM receiver input signal.


6. With battery voltage detection and buzzer interface.


7.In support of the world almost all hollow cup motor, including 1020 coreless motor.Support 6 motor.




Notice:


Before applying power, pay attention to the battery voltage selection.


The default shipping is 1S (4.2V); When using 2S, first need to disconnect the short contacts 1S, and then put the two pads on the 2S.


Prohibit shorted together the three pads at the same time.






Receiver configuration:


1. DSM receiver soldered directly to the DSM interface 3.3V, GND, RX3, in CF software configuration UART3 for Serial RX, and change the Receiver mode to RX_SERIAL,and then set up the receiver brand with Spektrum1024 or 2048.


2. SBUS receiver soldered on UART2 interface.SBUS signal in CF software configuration UART2 for Serial


RX,and change the Receiver mode to RX_SERIAL,and then set up the receiver brand with SBUS.


3. PPM receiver soldered on PPM interface.No need to open RX Serial, just in the CF software to change the


Receiver mode for RX_PPM.
Specifications:

NAZE32 32-bit Brush Flight Control for Tiny Mini Racing Drones (support 6-axis)

Item Name: ACRO NAZE32_BRUSH Flight Control

Dimension: 22mm*32.5mm

Thickness: 1.2mm

Weight: 3g


Includes/Requires:

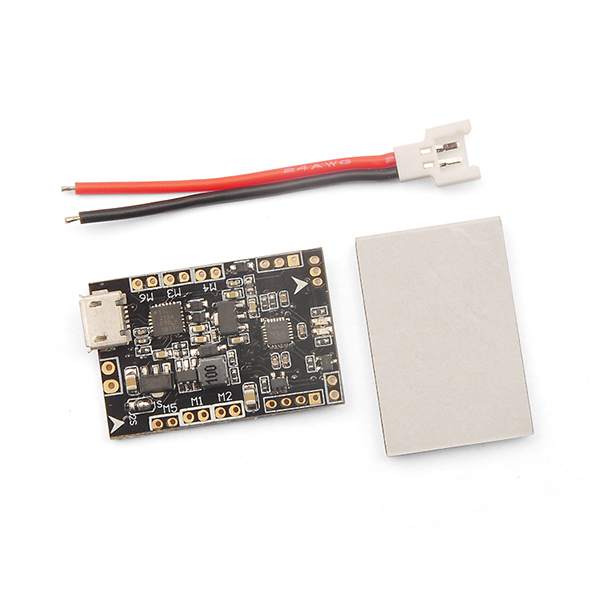

Includes:
1 x  ACRO NAZE32 BRUSH Flight Control Board
1 x power cable
1 x 3M adhesive pad
