Features: The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.
Bidirectional Communication Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel Hopping Frequency This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.
Unique ID Recgnition System Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
Low Power Consumption The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

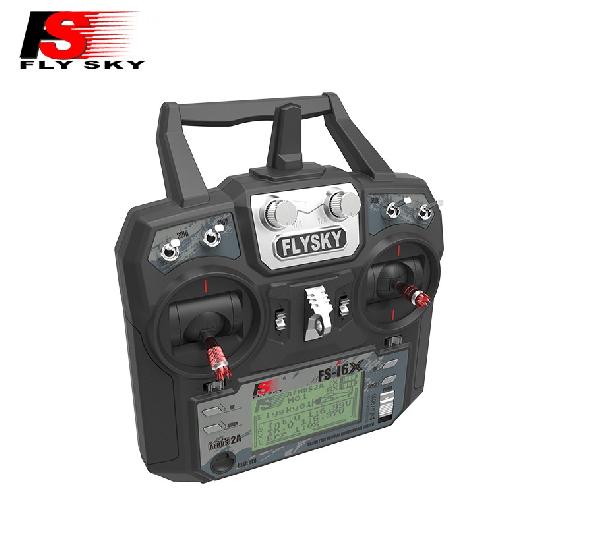

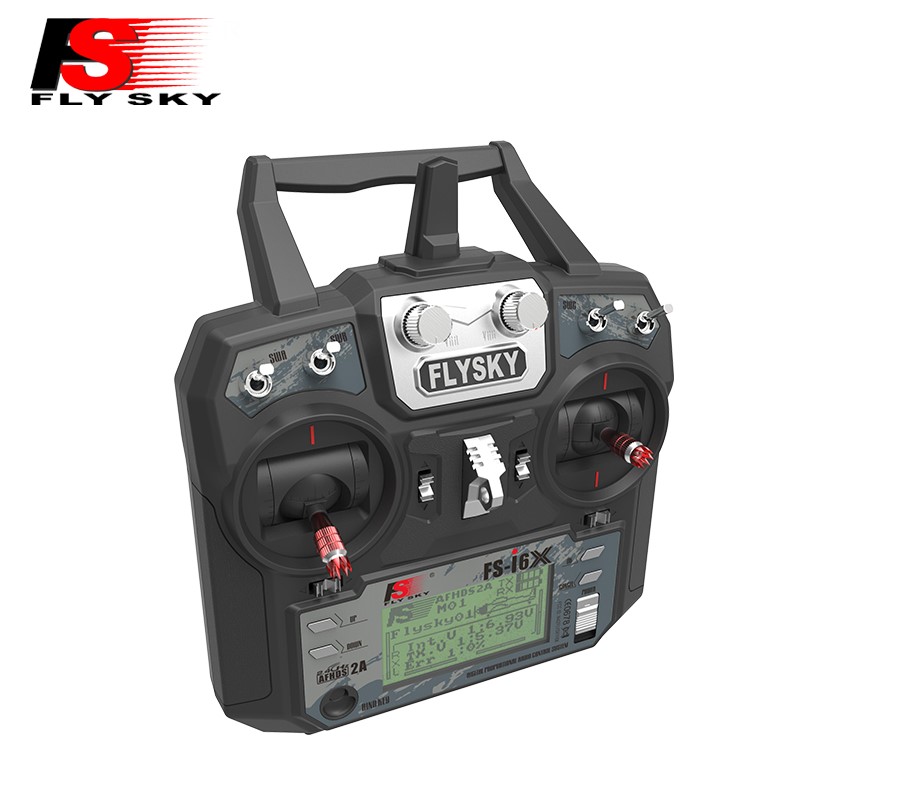

Flysky FS-i6X 2.4GHz 10CH RC Transmitter W/ X6B Receiver For RC Heli Quadcopter Airplane
FS-i6X Specifications: Item: FS-i6X RC Transmitter Channel: 6-10 (Default 6, you could choose 7-10ch in setting) Model Type: Fixed-Wing/Glider/Helicopter RF Range: 2.408-2.475GHz RF Power: < 20dBm RF Channel: 135 Bandwidth: 500KHz 2.4GHz System: AFHDS 2A / AFDHS Modulation Type: GFSK Stick Resolution 4096 Low Voltage Warning: < 4.2V DSC port: PS/2 Port PPM Chargeable: No Antenna Length: 26mm (Dual Antenna) Weight: 392g Power: 6V DC 1.5AA*4 Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight Size: 174x89x190mm On-line Update: Yes Color: Black Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
X6B i-BUS Specifications: Brand Name: Flysky Item: X6B i-BUS Receiver Channels: 6(PWM), 8(PPM), 18(i-BUS) Model Type: Multi-Totor RF Range: 2.408-2.475 GHz Brand Wigth: 500KHz Number of bands: 135 RF Power: No more than 20 dBm RX Sensitivity: -95dBm 2.4GHz protocol: AFHDS 2A Modulation Type: GFSK Stick resolution: 1024 Low voltage alarm: Yes DSC port: PPM/PWM/i-BUS Antenna Length: 93mm (Dual Antenna) Power input: 4.0-8.4V On-line Update: Yes(Wireless) Range: >300m Weight: 4.5g Size: 36*22*7.5mm i-BUS Port: Yes Certificate: CE0678, FCC ID: N4ZX6B00
Includes: 1 x FS-i6X Transmitter 1 x X6B receiver
