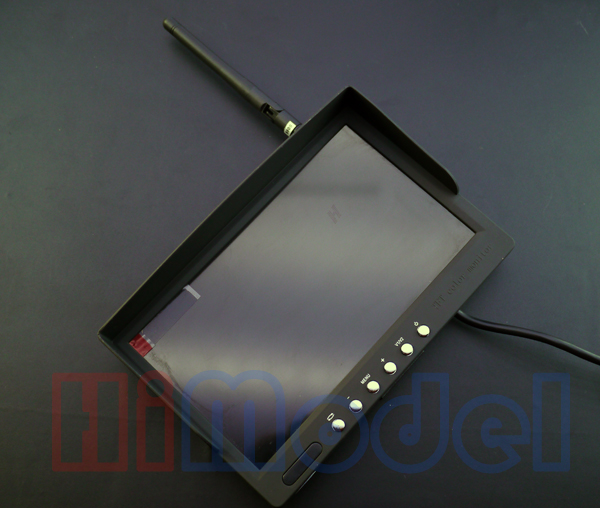

Features: -Built-in 5.8G Receiver -None "blue screen" effect when signal is weak -Small, light weight, durable
Compatible with most 5.8G transmitters sold on our website except Partom TX. (refer to frequency table supported in the specification section)
Upgrading version of this item now available, refer to SKU TV58R2.
Specifications:
Specification:

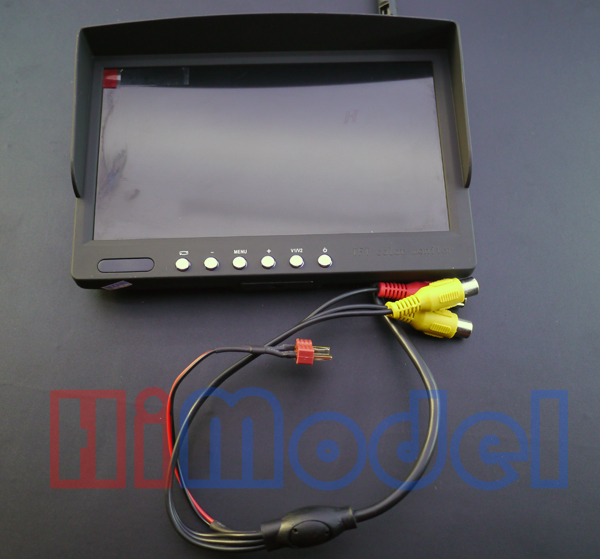

1. Screen size:7” 2. Screen type: TFT LCD Screen/long life, LED backlight 3. Resolution: 800*480 4. Brightness: 450cd/m2 5. Contrast: 500:1 6. View Angle: 140/120degree (Horizontal/Vertical) 7. Working Voltage: DV 7-13V(center positive) or 11.1V Li-battery 8. Power Consumption: < 6w 9. Size: 170mm x 110mm x 40mm 10. Built-in 5.8Ghz receiver (RC305 5.8G) 11. Input: 2 ways video including AV1 for built-in receiver, one way audio 12 Output: 1 way 13. Support 9 languages menu selection including English. 14. Working temperature: -10℃~+ 65 ℃ 15. Receiver antenna connector type: RP-SMA, jack (monitor side) See connector type diagram
* The manufacturer may use same packing for several different types of products, please disregard the discrepancies (if any) on the packing.
Working frequencies (* Check your TX frequency to make sure they are supported by your TX) • CH1: 5705MHz • CH2: 5685MHz • CH3: 5665MHz • CH4: 5645MHz • CH5: 5885MHz • CH6: 5905MHz • CH7: 5925MHz • CH8: 5945MHz
Includes/Requires:

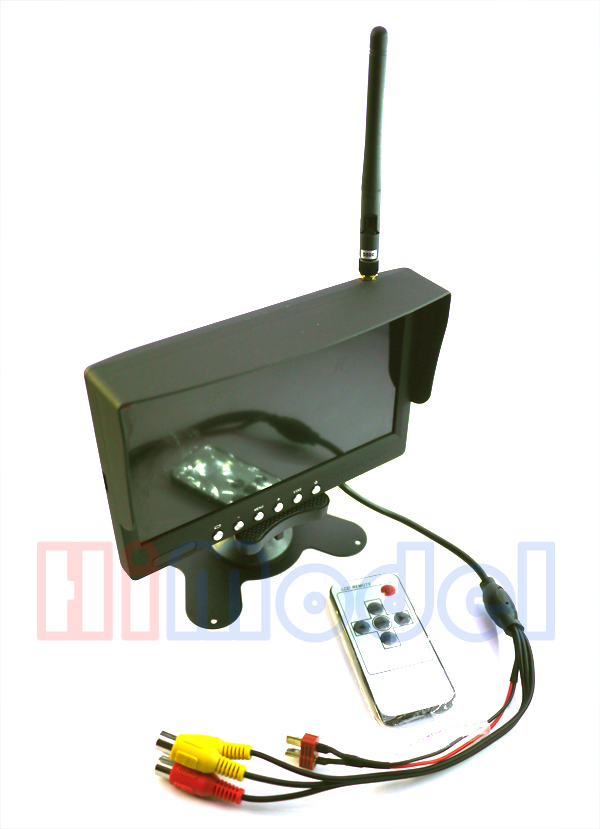

Includes: 1 x monitor 1 x monitor base 1 x light shield 1 x 5.8G 2db antenna 1 x double-side tape
Average Customer Review: 5 customer review(s).[Write a review/question]
funmodel
Question : WHAT THE SWITCH CONFIGURATION ? NON NOTICE IN BOX § July 05 2014 Was this question helpful to you? Yes [ 0 ]
No [ 0 ] [Reply this question]
Discussion of this question:
undefined -- Jan 23 2025 by l****Yeaa
chadica
Question : Has anyone discovered a way to stop the blue screen on signal loss? June 07 2014 Was this question helpful to you? Yes [ 0 ]
No [ 0 ] [Reply this question]
chadica
Grade: This monitor DOES go to blue screen after only a little signal loss
The built in receiver is not very sensitive at all, even with spira antennas
The picture is good and bright,
The default OSD language is Chinese, though this can be easily changed (last menu option)
June 07 2014 Was this review helpful to you? Yes [ 0 ]
No [ 0 ] [Reply this review]
s****amun
Grade: Hi!
This model can not use for fpv.
Because this monitor did not no blue screen and internal wire solder bad.
May be this item loose your trust from buyer.
Don't shell this item for your trust.
June 08 2013 Was this review helpful to you? Yes [ 0 ]
No [ 0 ] [Reply this review]
T****-Toys
Grade: Hi,
Anyone use it before, can anyone confirm its brightness is really 450cd/m2? Viewable under sunlight?
Thanks! March 04 2013 Was this review helpful to you? Yes [ 0 ]
No [ 0 ] [Reply this review]
Discussion of this review:
I didn't measure its brightness, still it is one of the best values for money out there, surely it is better than any other i tested (at least 5 other brand-manufacturers)
Claudio -- Mar 27 2014 by soaringclauz
