   FPV/ Aerial Photography Video Glasses/ Monitors 8 inch 5.8G Receiver Integrated Outdoor LED Monitor
SKU:  819A58G
8 inch 5.8G Receiver Integrated Outdoor LED Monitor
Customers rating.
Add To Wish List
Added:2013/08/09
Updated:2013/08/10
Follow Us on:


  Tags: ground station monitor  outdoor monitor  FPV monitor

Features:
5.8G receiver is integrated.
No blue-screen effect.
NTSC & PAL auto detect.
Supports multiple mounting positions.

Specifications:

8 inch 5.8G Receiver Integrated Outdoor LED Monitor

Screen size: 8"
Physical Resolution: 800x 480
Max display resolution supported: 1920x 1440
Brightness: 450cd/m2 (max)
Contrast: 500:1 (max)
Video singal input:  0.7~1.4Vp-p/75Ω
Supported PC input frequency: H:30~60kHz V:60~75Hz
Power supply: DC12V
Power: ≤8W
Speaker power: ≥250mW/8Ω
Audio output: ≤1W
Dimension: 208×146×34mm
Signal  input:  Standard RCA, one video , one audio

Internal 5.8G receiver frequency:

1CH:5705MHz ;2CH:5685MHz ;3CH:5665MHz ;4CH:5645MHz ;
5CH:5885MHz ;6CH:5905MHz ;7CH:5925MHz ;8CH:5945MHz

*  THE MANUFACTURER USES SAME OUTER PACKING FOR MANY DIFFERENT VERSIONS OF PRODUCTS, SO THERE MAY HAVE MANY DISCREPANCIES  ON THE OUTER PACKING, PLEASE DISREGARD THOSE DISCREPANCIES IF ANY.

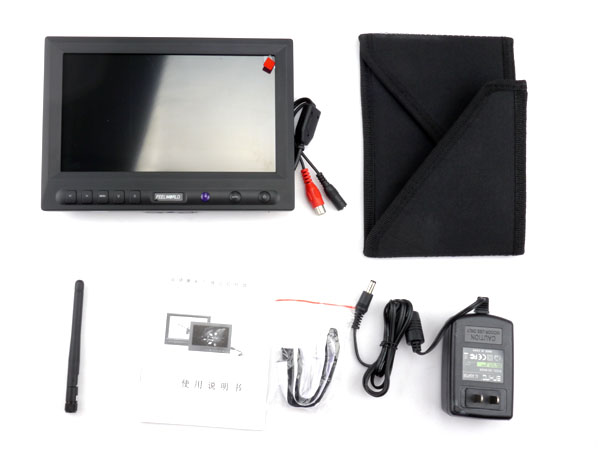

Includes/Requires:
Includes:
1 x monitor
1 x 2db antenna
1 x sunlight shield
1 x AC/DC adapter  12V
1 x instruction manual
