   FPV/ Aerial Photography Video TX/RX & Accy. AOMWAY 5.8G 32CH 1000mW A/V Transmitter (VTX)
SKU:  TX1000
Browse AOMWAY
AOMWAY 5.8G 32CH 1000mW A/V Transmitter (VTX)
Customers rating.
Add To Wish List
Added:2015/07/06
Updated:2016/10/20
Follow Us on:


  Tags: AOMWAY 5.8G 32CH A/V Transmitter VTX

Features:
Special features:

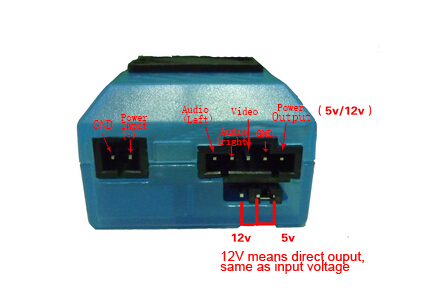

Provide 5V or direct output  (optional by using jumper) ouput for powering camera.

* When it is set to direct output mode, the output volage will be same as the transmitter's main power input voltage, so do make sure your camera input voltage is compatible with your main battery voltage when use the direct output mode.
Specifications:

AOMWAY 5.8G 32CH 1000mW A/V Transmitter (VTX)

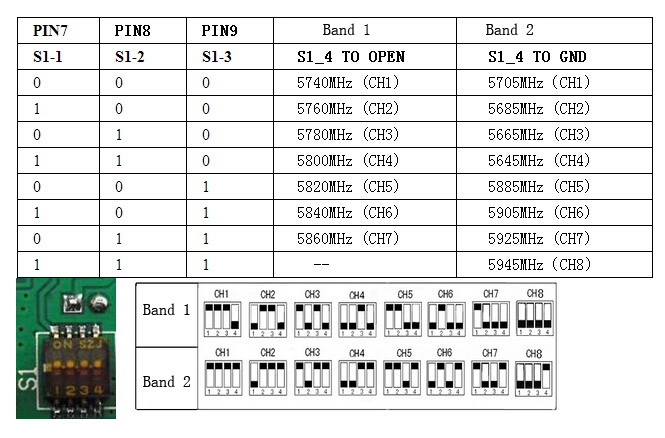

Transmitter channel number: 32-ch
Power input: 9-16V  DC
Transmitting power: 1000mW
Transmitting current: 700mA @12V
Audio: stereo (left and right channels are separated)
Transmitter unit Dimension: 60 x 33x 20mm
Weight: 43g (excluding antenna)
Antenna connection: SMA  jack (modules side)   Refer to here for connector type diagram




Includes/Requires:
Includes:
1 x transmitting module (TX only)
1 x 5db antenna
1 x power cable
1 x video cable

Requires:
1 x Receiver
