BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller

- With latest official firmware
- Firmware upgrade is supported when newer official version firmwares available

For more information and trouble shooting, please refer to developer's official website: http://www.simplebgc.com/eng/downloads/

Basic welding/ironing skills are required.

BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller | V2.2B2 (Firmware upgradeable)

Weight: 17g (including sensor and wire)
Main board size: 50 x 50mm
Power input: max 4S/ 16.8V (12V/ 3S is suggested)

Connection diagram

a. Connection with other official accessories

b. Connection with BGC2.0

General Installation hint: Sensor chips side facing UP (below picture is taken from previous version controller board and for reference only).

Note about brushless gimbals & Controllers:

Brushless gimbals and controllers are very new to the market and it is an emerging technology. You will need some patience and effort to get it to work as seen on youtube etc.. THIS IS NOT A PLUG AND PLAY DEVICE!
You will need some understanding of Microsoft windows drivers, software settings and tuning the gimbal software to your liking and to suit your multirotor.
Getting things to work the way it’s supposed to will be YOUR RESPONSIBILITY. Please understand this before you purchase any Brushless Gimbal Related Item.

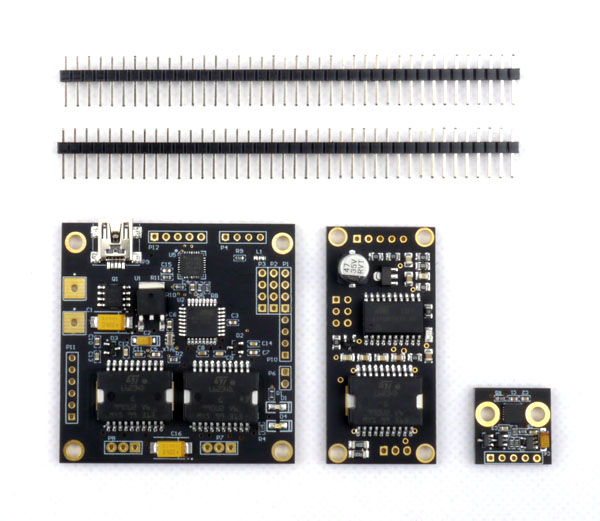

Includes:

1 x GBC Universal Brushless Gimbal Controller main board
1 x 3rd axis expansion board
1 x sensor
1 x metal terminals

Requires:

1 x sensor wire (length may vary from your systems)

Special hint on firmware upgrading error

Some customers report that they received an error code "-1073741515" when they try to upgrade the firmware to the latest version, this is caused by compatibility between GUI software and Microsoft .net edition. The previous edition GUI (2.2b or older) is designed to run under .net 3.5, it doesn't compatible with .net 4, if your .net is upgraded to version 4 (.net upgrading could be done automatically without your acknowledge ), there are two methods can resolve this issue:
Method 1:
Download the latest 2.3b4 version GUI software, then you can flash with official firmware, this version GUI already support .net 4.0.
or Method 2:
Use official recommended software Xloader, you can download the Xloader from official website, when use this tool, when you click "upload", you may receive a message "Upload failed", this is because the main board is rebooted, and actually the upgrading is success, you can check the latest firmware version with your parameter review software.

No customer review yet. [Write a review/question]

crackup007
STD member

Question :
Hello! I buy to you a gimbal controller card, which you advertised as upgradeable SBG, I try to update it and can not, the card is marked as copy, is not an authorized card upgrades to bring them up.

Even now I can not seem to restore it to version 2.2b2 originally was bringing, as the firmware is installed who brought a pirated copy of the original verision of Alexmos.

I am not happy with your scam!

Pirated cards with code Alexmos bought for less than 45 USD

How I can make valid the warranty on this product? Because it is not the original, much less can not update the firmware

BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller | V2.2B2 (Firmware upgradeable)

Order No. L330618

http://www.himodel.com/FPV_Telemetry/BGC_Universal_3-axis_3-axle_Brushless_Gimbal_Controller.html

November 25 2013 Was this question helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this question]

Discussion of this question:

No problems here with loading 2.3 b5 firmware and talking to it with the 2.3 b4 GUI (win7 x64). Where is it marked as copy?
-- Jan 20 2014 by j****use

S****hane C
STD member

Question :
Hello,

where is the sensor wire please ?
November 11 2013 Was this question helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this question]

Discussion of this question:

Mine came with a black flexible silicone wire (four wires) with female connectors on each end. Just snap off four of the pins and solder onto the board and do the same with the IMU. Then plug the silicone jumper wires across between the IMU and the I2C pins as marked on the diagram above.
Then again they may have occidentally omitted the jumper wire.
-- Jan 20 2014 by j****use

H****D

Question :
What is A3 ?
October 28 2013 Was this question helpful to you?

Yes [ 0 ]

No [ 1 ] [Reply this question]

Discussion of this question:

A1=RC_ROLL/SUM_PPM , A0=RC_PITCH , A2=FC_Pitch , A3=FC_Roll. Connect either Rx outputs or analogue joystick outputs to these pins and use those names to select which pins to map to the channels you have connected in the GUI.

-- Jan 20 2014 by j****use
