   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. DJI Ronin 3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM (Battery not included)
SKU:  DJIRONIN
Browse DJI

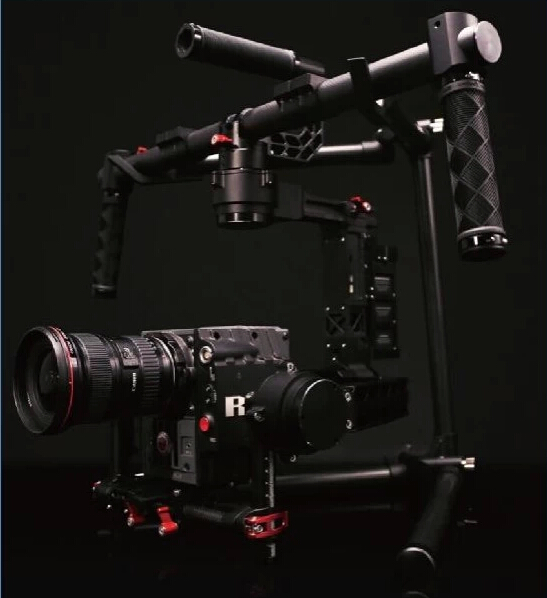

DJI Ronin 3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM (Battery not included)
Customers rating.
Add To Wish List
Added:2014/08/16
Updated:2014/08/19
Follow Us on:


  Tags: DJI Ronin 3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM

Features:

The DJI Ronin has been developed for the filmmaking professional. High build quality standards ensure that it keeps up with the demands of rigorous handheld use in trying environments. Simply hold it in your hands to create smooth and stable footage. Custom built ultra-fast processors, extremely accurate sensors, and advanced algorithms, together with fanatical attention to detail has created a system that offers remarkably precise manipulation of control angles - within the range of ±0.02°. This puts world-class, industry leading technology into your hands and creates unparalleled picture and video stabilization.

Specifications:

 DJI Ronin 3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM

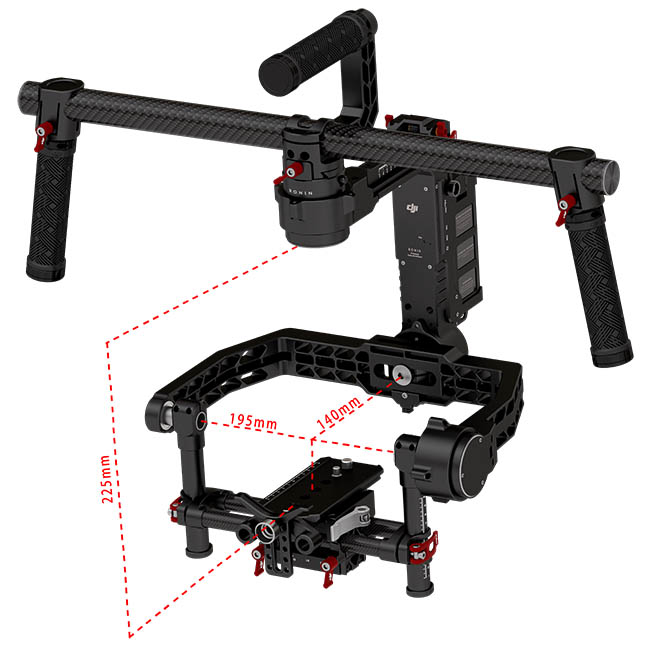

Supported Camera Dimensions

spec

General

Built-In Functions
  1. Three Operation Modes
    · Underslung Mode
    · Upright Mode
    · Briefcase Mode
  2. Built-in independent IMU module
  3. DJI Specialized Gimbal Drive Motors with Encoders
  4. Bluetooth Module
  5. USB Connection
  6. 2.4GHz Receiver
  7. Temperature Sensor
  8. DJI Advanced 32-Bit DSP Processor
  9. D-Bus/PPM Receiver Supported

Peripheral

Accessory Power Connections
12V regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power
4S Ronin Battery
Connections
2.4GHz Remote Control, Bluetooth, USB
PC Assistant Software Requirements
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mobile Assistant Software Requirements
iOS version 6.1 or above Mobile Device iPhone 4s, iPhone 5, iPhone 5s, iPod touch 4, iPod touch 5 , iPad 3, iPad 4, iPad mini

Mechanical & Electrical Characteristics

Working Current
Static current: 300mA (@16V)

Dynamic current: 600mA (@16V)

Locked motor current: Max 10A (@16V)
Operating Temperature
-15°C ~ 50°C (5°F ~ 120°F)
Weight
4.20kg (9.26lbs) fully loaded with handlebar
Gimbal Dimensions
620mm(W) x 280-380mm (D)x 500mm(H)
Supported Camera Dimensions
Maximum depth at center of mass on camera base plate: 140mm

Maximum height measured from top of camera base plate: 225mm

Maximum width: 195mm

Working Performance

Load Weight (Reference Value)
7.25kg (16lbs)
Controlled Angle Accuracy
0.02°
Maximum Controlled Rotation Speed
Pan axis: 90°/sec

Tilt axis: 100°/sec

Roll axis: 30° /sec
Controlled Rotation Range
Pan axis control: 360°
Tilt axis control: Up 45° to Down 120°
Roll axis control: ± 25°

Includes/Requires:
Includes:
1x  DJI Ronin 3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM

* Battery is NOT included (11.1V 5200mAh is recommended).
