   FPV/ Aerial Photography Cameras/Video Recorder/Capture FPV 480 Line Super Light 4.8g CMOS Camera MC91 PAL
SKU:  FVMC91

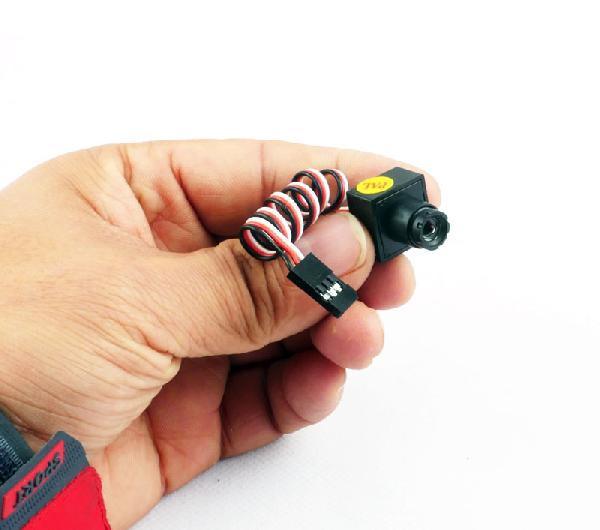

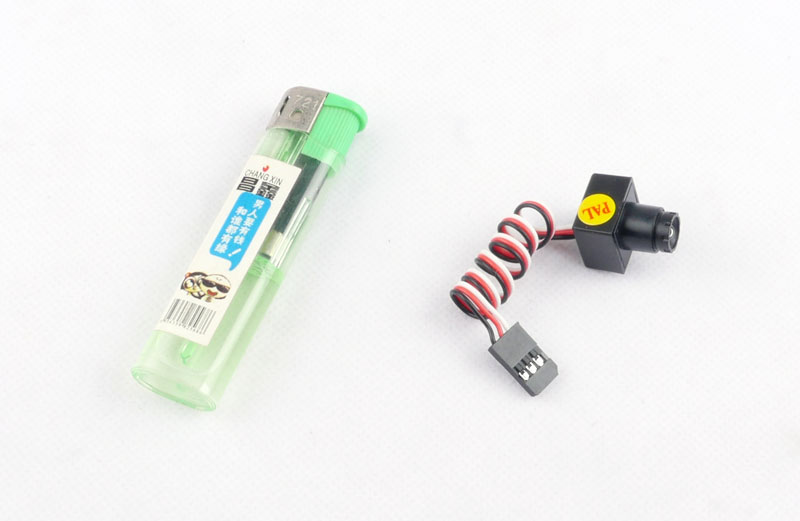

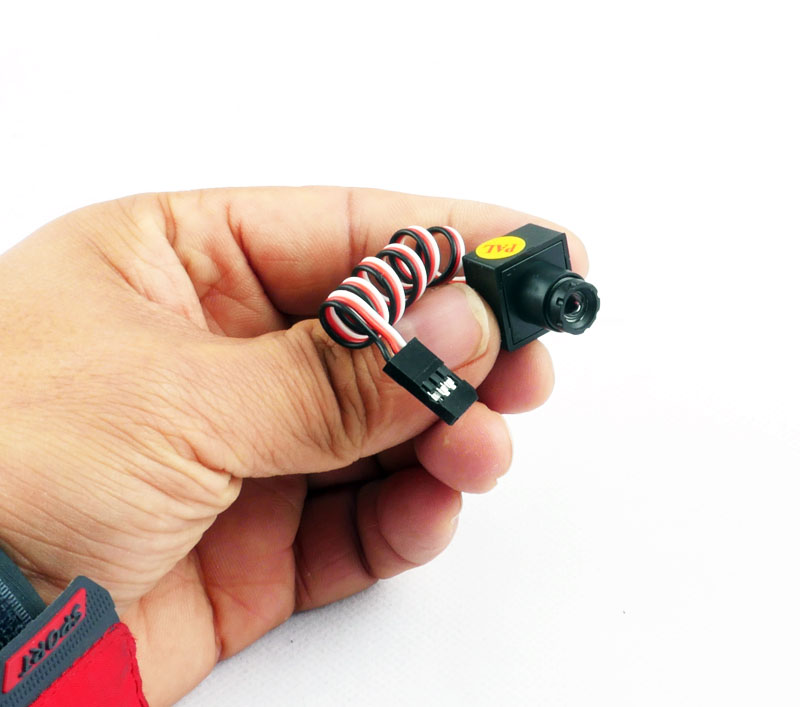

FPV 480 Line Super Light 4.8g CMOS Camera MC91 PAL
Customers rating.
Add To Wish List
Added:2014/11/09
Updated:2014/11/09
Follow Us on:


  Tags: FPV 480 Line Super Light 4.8g CMOS Camera MC91 PAL

Features:

Features:

1. Small Size: easy to install into narrow room and slim tube, etc.;
2. Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;
3. Camera stand can rotate 360 degrees, all-round monitoring
4. High resolution, high sensitivity, high SNR;
5. Day & night dual mode auto switch;
6. Low Illumination, Low Current and power consumption;
7. CMOS sensor generation IV+DSP chip offer true color & HD video.
Specifications:

FPV 480 Line Super Light 4.8g CMOS Camera MC91 PAL



PICK UP ELEMENT

Single chip 1/4CMOS

SYSTEM

PAL

NUMBER OF PIXEL

PAL:720(H)×576(V)

SENSOR DIMENSION

3.584mm(H)×2.688mm(V)

HORIZONTAL RESOLUTION

Approximately 480TV Lines

SENSITIVITY

0.05Lux/F1.2

LENS & VIEW ANGLE

F1.2 / 90°

S/N RATIO

48dB

AUTO GAIN CONTROL

OUT

WHITE BALANCE CONTROL

OUT

BACK LIGHT COMPENSATION

OUT

VIDEO OUT

1.0V p-p/75ohm

AUDIO OUT

1.0V p-p/1Kohm

WEIGHT

4.8g

SIZE(LXWXH)

15.5X15.5X20mm;

WORK CURRENT

DC12V: 45mA   DC5V: 95mA

POWER REQUIREMENT

DC:3.6V-24V

OPERATING TEMPERATURE

- 10° C ~ +50°C ,less than  90% RH

Connection

PIN1-> Red DC5V /12V PIN2-> Black GND PIN3-> Yellow VIDEO OUT PIN4-> White AUDIO OUT




Includes/Requires:
Includes:

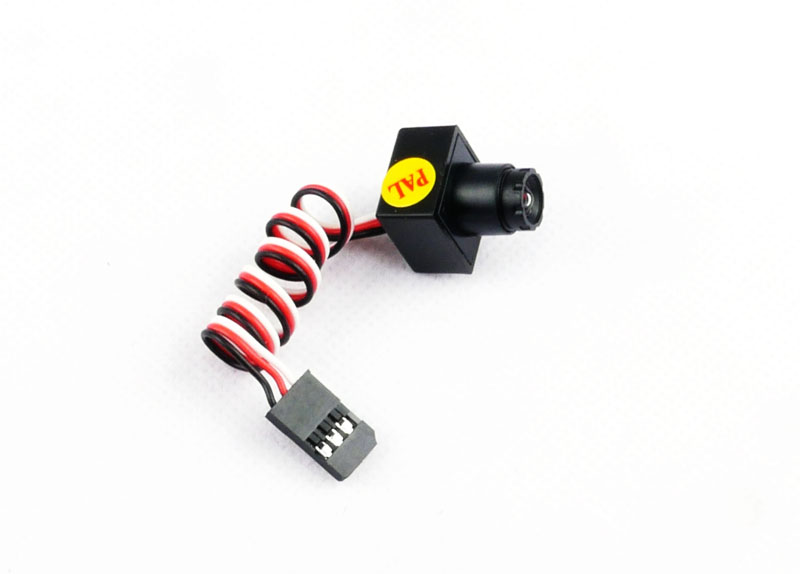

1 x camera with Futaba connector
