THIS IS THE NEW 32-CHANNEL AUTO-SCAN EDITION 5.8G A/V WIRELESS RECEIVER.

Special Features:

Auto-scan by one touch, 32ch working channels, compatible with all popular 5.8G A/V transmitters available on market.

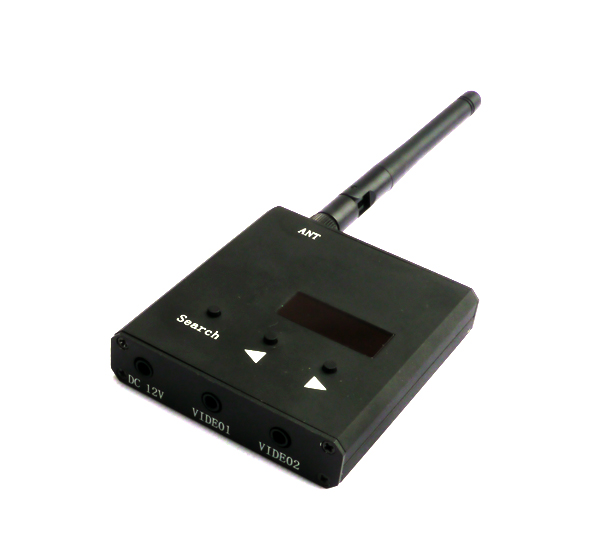

FPV 5.8G 32CH Auto-scan A/V Receiver (RX) RC32S  - 32CH Edition | SMA

Video format supported: NTSC/PAL
Antenna connection: SMA, jack (module side ) See connector type diagram
Power input: 12V (3S Lipo suggested)
Video output ports number:  2
Weight: 80g



Working frequencies:

5705  5685 5665  5645  5885 5905  5925  5945

5733  5752 5771  5790  5809 5828  5847  5866

5740  5760 5780  5800  5820 5840  5860  5880

5865  5845 5825  5805  5785 5765  5745  5725

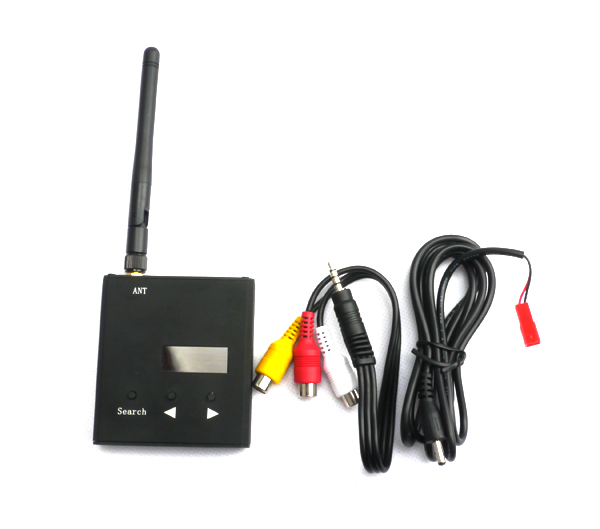

Includes:
1 x receiver (RX)
1 x antennas (2db)
1 x power wire

Requires:
1 x transmitter (TX)
