   FPV/ Aerial Photography Video TX/RX & Accy. FPV 5.8G 500mW A/V Transmitting/receiving System | RP-SMA, jack
SKU:  FV5850
FPV 5.8G 500mW A/V Transmitting/receiving System | RP-SMA, jack
Customers rating.
Add To Wish List
Added:2011/02/19
Updated:2013/06/03
Follow Us on:


  Tags: video recording system  FPV  telemetry system  500mw  TS 352  RC 305

Features:
FPV 5.8G 500mW A/V Transmitting/receiving System, a good choice for avoiding interference for customers using 2.4G radio system.
Specifications:
FPV 5.8G 500mW A/V Transmitting/receiving System

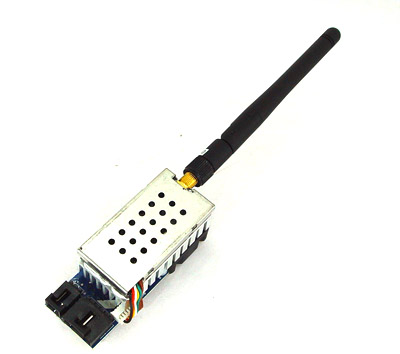

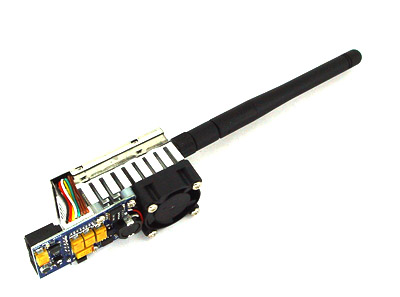

Transmitter specs ( TS352):
Transmitting unit weight: 68.5g (including antenna but excluding wires)
Size: 69mm x 31mm x 26mm
Power input: 7.4-13V
Output power: 500mW
Wording current: 550mA
Channel number: 8-ch
Digital phase-locked loop circuit, no temperature drift.

Receiver specs (RC305):
Video signal resistance: 75Ω
Antenna connection: RP-SMA  jack (module side)   Refer to here for connector type diagram
Power supply: 9-12V
Working current: 170mA
Channel number: 8
A/V output port number: 2
Size: 100mm x 70mm x 18mm
Weight: 50g (including antenna, but excluding wires)
Compatible with PAL and NTSC



* Make sure the correct polarity, damage due to wrong polarity is not covered by warranty.

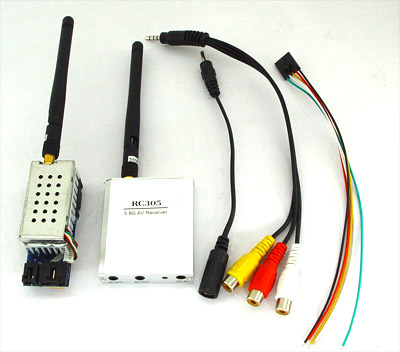

Includes/Requires:
Includes:
1 x transmitting unit
1 x receiving unit
1 x basic wire set

* Plastic bag packing, No instruction manual supplied with this product.
