   FPV/ Aerial Photography Video TX/RX & Accy. FPV 5.8G 600mW 32CH A/V Transmitter Module (TX) (RP-SMA, jack) T600
SKU:  600-TX

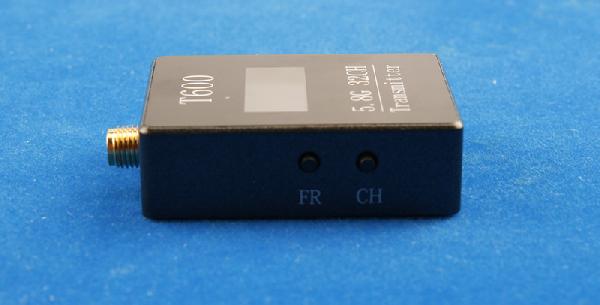

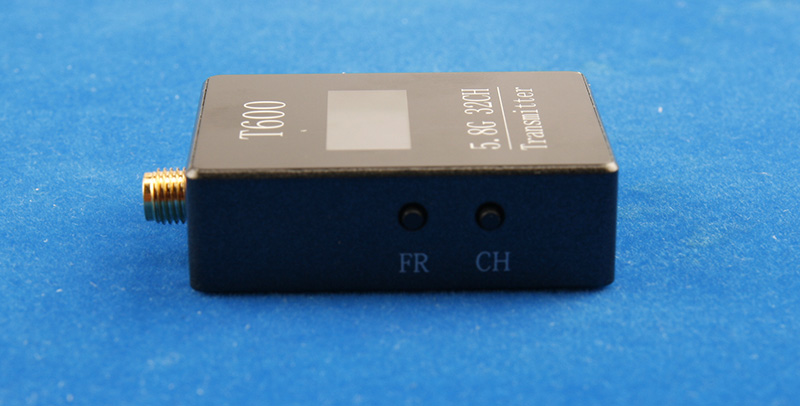

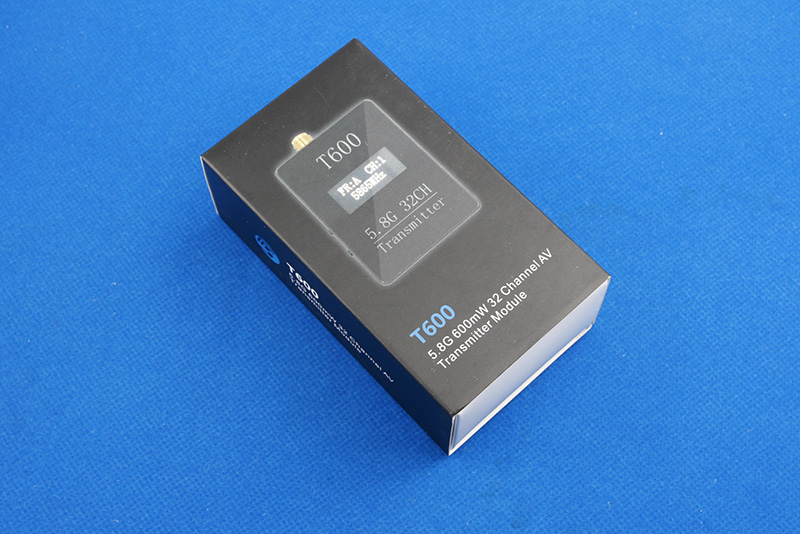

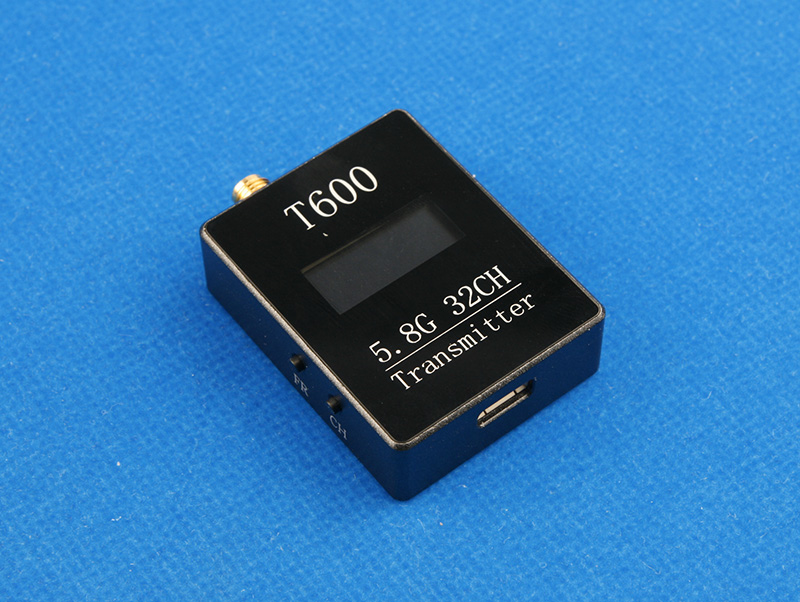

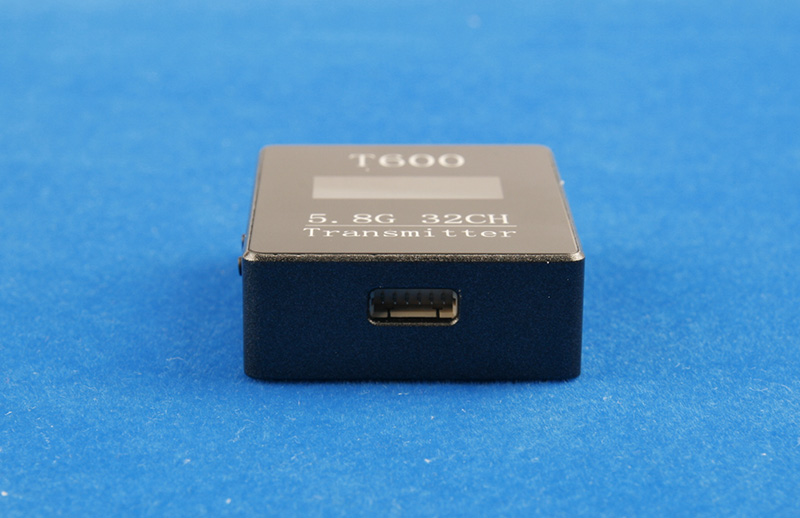

FPV 5.8G 600mW 32CH A/V Transmitter Module (TX) (RP-SMA, jack) T600
Customers rating.
Add To Wish List
Added:2015/09/15
Updated:2015/09/15
Follow Us on:


  Tags: video recording system  FPV

Specifications:

FPV 5.8G 600mW 32CH A/V Transmitter Module (TX)  (RP-SMA, jack) T600

video format supported: NTSC/PAL
Working frequency: 5645-5945Mhz
Power input: 7-24V (3S Lipo suggested)
Transmitting current: 220mA @12V
Video band width: 8M
Dimension:50x35x18mm (excluding antenna)
Transmitting unit weight: 25g (excluding antenna)

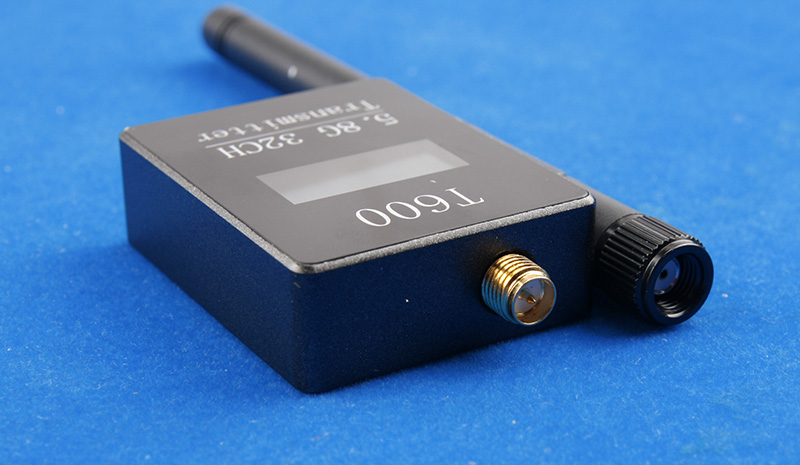

Antenna connection: RP-SMA  jack (TX module side)   Refer to here for connector type diagram


*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.





Includes/Requires:

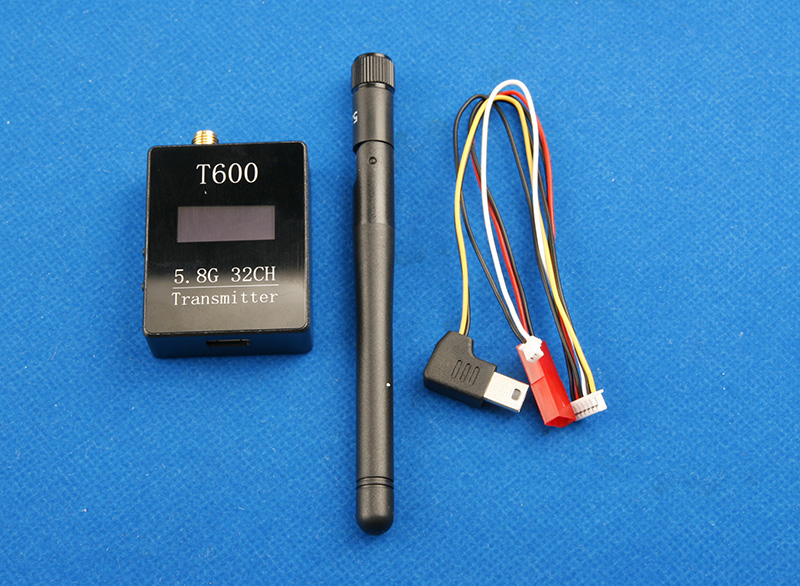

Includes:
1 x transmitting unit (TX)
1 x cable
1 x TX antenna (2db)
* No instruction manual supplied with this product.

Requires:
1 x receiving unit (RX)
