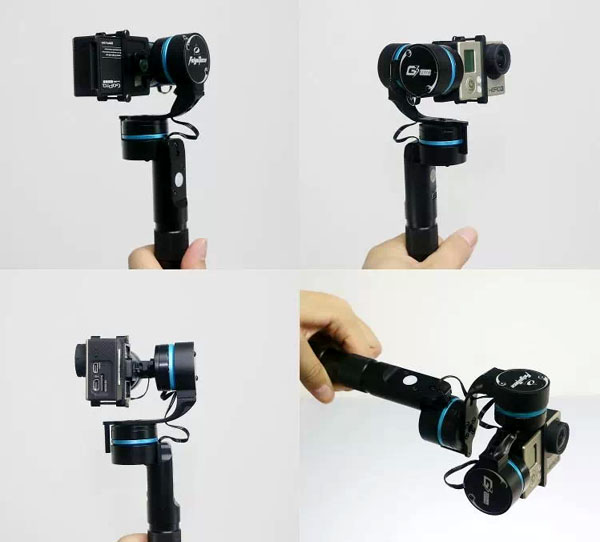

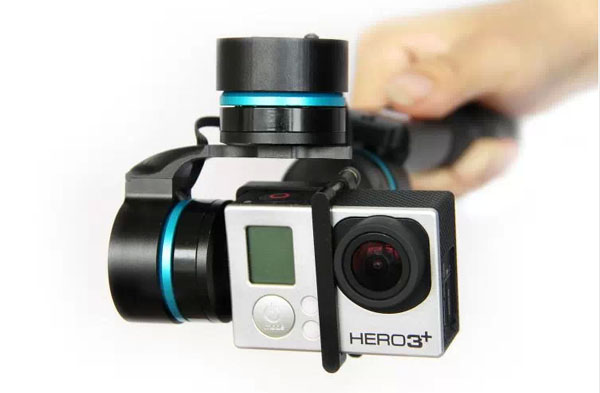

FY-G3 Ultra3-axis Handheld Steady Gimbal for Gopro 3/ Gopro 3+

Function Instruction

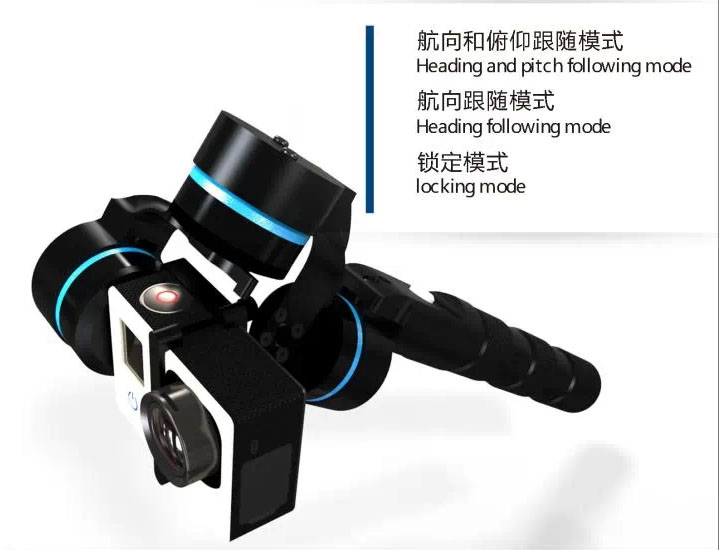

● Heading Following Mode —— Pitch and roll locking, heading smooth rotation follow the direction of the handheld.

● Heading And Pitch Following Mode —— Roll locking ,heading and pitch smooth rotation follow the direction of the handheld.

● Locking Mode —— Heading ,pitch and roll locking.

Function Instruction Video: http://youtu.be/c-PdFuYymIs

How To Use The Button

Identify the operation mode via switch to different status of the indicator light.Please check detailed indicator diagram below。

Operation Skill

The Skills Of Adjusting Pitch: Double click the button first to be in heading and pitch following mode. Adjust the attitude to move the pitch to the angle you want , then press the button once to lock the angle of pitch being in the heading following mode .

Autodyne Mode: Trun 180 degree of the gimbal(the USB port facing you). Adjust the angle of pitching through the method above, then you can autodyne easily.

Indicator

Initialize The FY-G3Ultra Gimbal

FY-G3 Ultra Gimbal needs to be initialized when the following situation appears:

1.  After power on, the angle of pitch has a little angle difference with the horizon line.

2.  After power on, the angle of roll has a little angle difference with the horizon line.

3.  When the heading is in the till condition, the angle of heading amends frequently in a small angle .

【 The method of initializing the FY-G3 Ultra Gimbal 】

Keep the gimbal in the still condition, then power on , it will initialize automatically.After that the gimbal can work normally.

The Maximum Rotation Angle Of The Axis

Specification
