Special features:
- 32 channels, compatible with most receivers available on market.
- 3-6S Wide input voltage range.

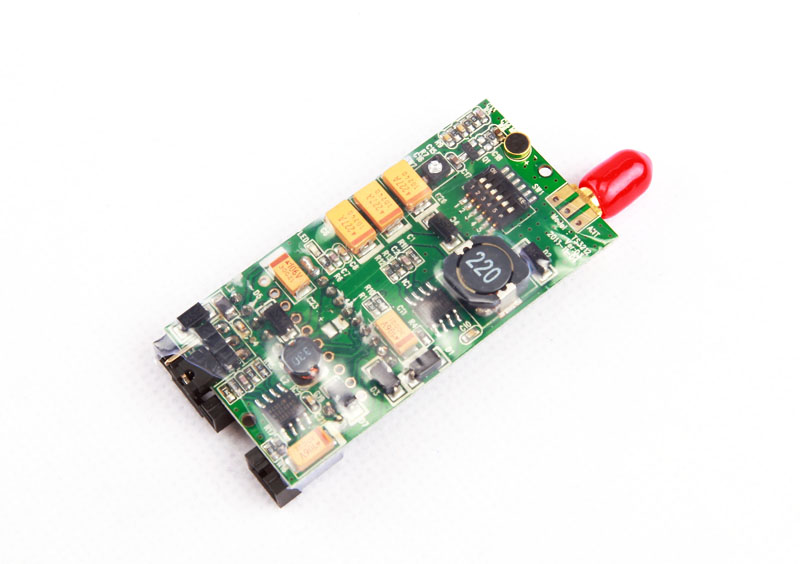

- Large PCB design, ensures heat radiation & reliability during long time transmission.

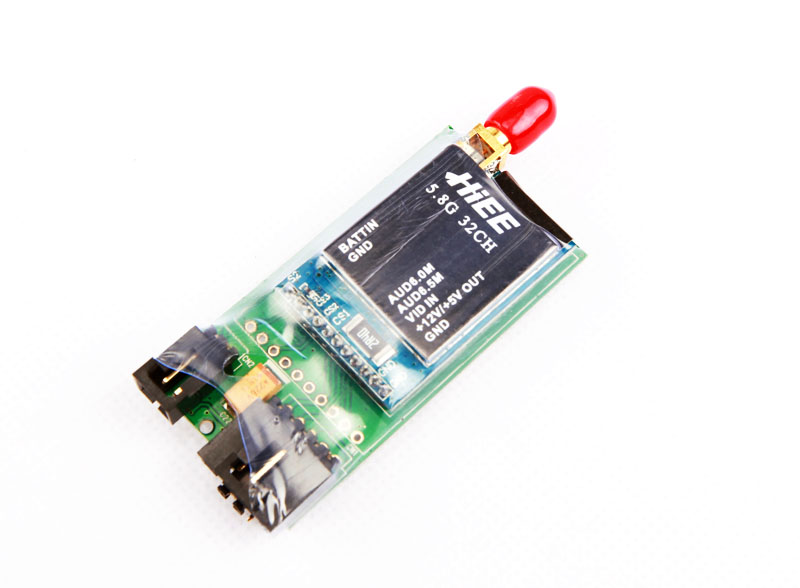

HiEE  5.8G 200mw 32-Channel A/V Transmitter TS3202

video format supported: NTSC/PAL  (auto)
Audio format supported: 6.0M and 6.5M audio coding, support conventional AAT system
Power input: 3-6S
Working current: 210mA @ 12V
Antenna connector: RP-SMA, jack (module side)
Dimension: 64 x 30 x 8mm
Weight: 18g (TX module only)

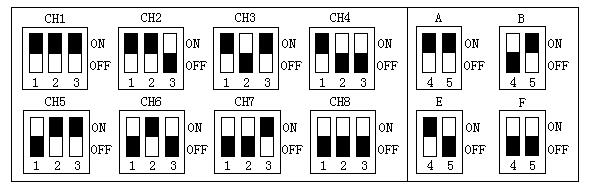

	CH	CH
FR		CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
FR	FR1(A)	5865M	5845M	5825M	5805M	5785M	5765M	5745M	5725M
	FR2(B)	5733M	5752M	5771M	5790M	5809M	5828M	5847M	5866M
	FR3(E)	5705M	5685M	5665M	5645M	5885M	5905M	5925M	5945M
	FR4(F)	5740M	5760M	5780M	5800M	5820M	5840M	5860M	5860M

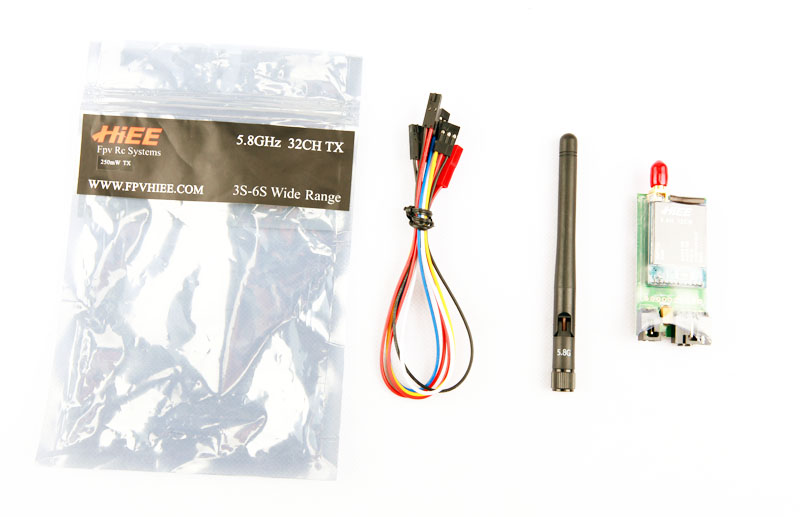

Includes:
1 x transmitting unit (TX)
1 x power supply cable
1 x 5.8G 2db antenna
1 x A/V wire
