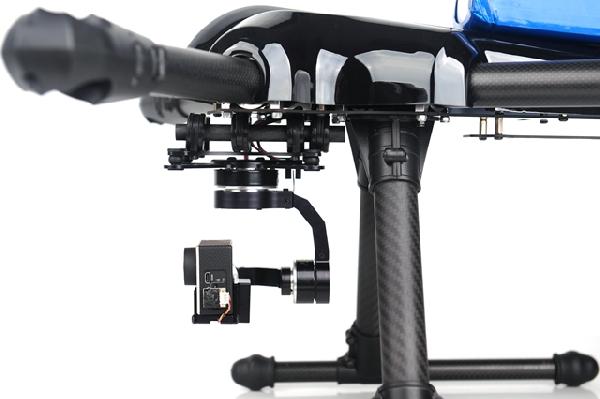

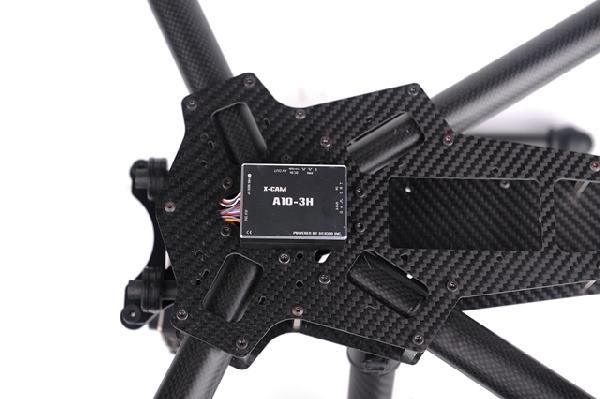

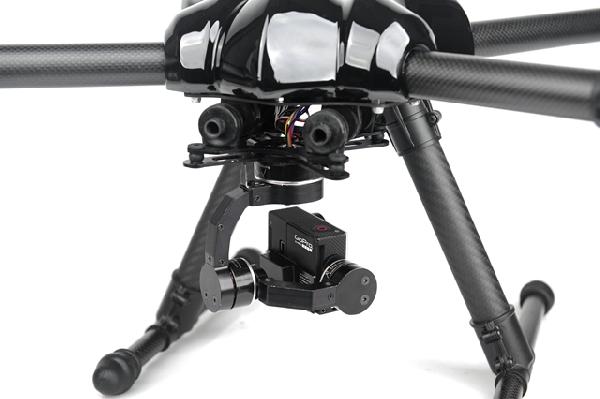

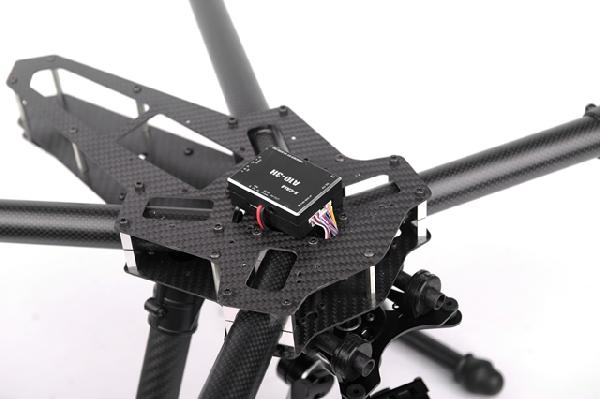

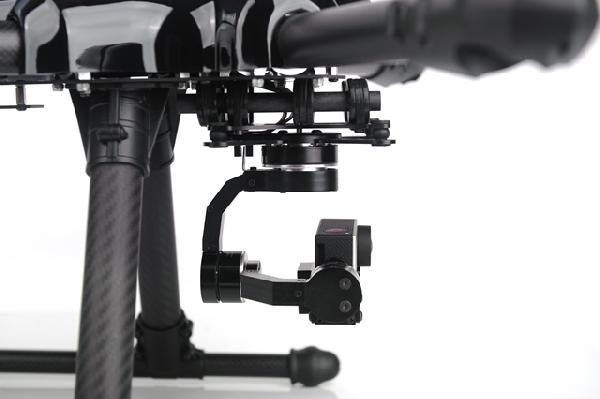

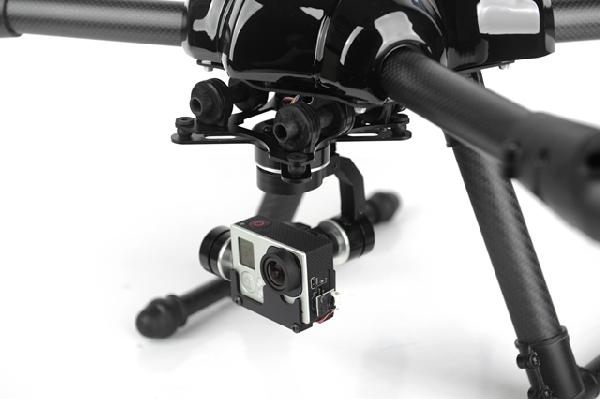

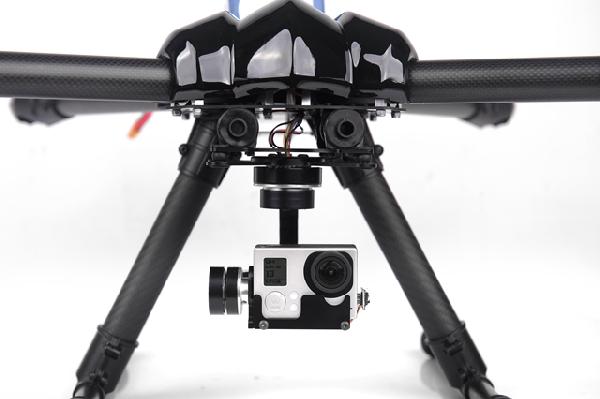

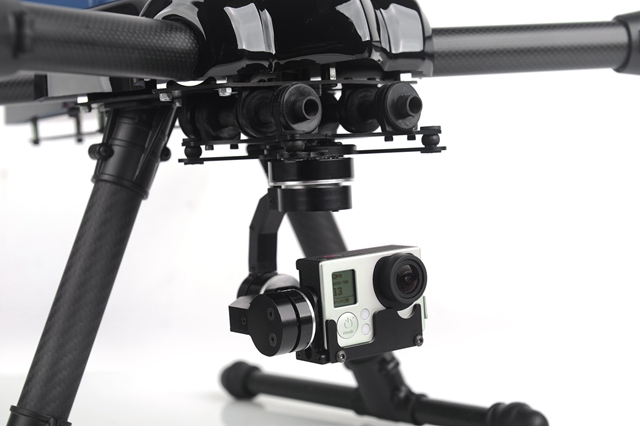

X-CAM 3-axis Brushless Gimbal for GoPro  A10-3H

Weight:  280g ( without GOPRO )
Stabilization frequency:  5200Hz
Input voltage:  7.4v ~ 16.8v ( 2S ~ 4S Lipo )
Tilt travel:  +-90 degree; Roll travel:  +-45 degree
YAW travel:  360 degrees unlimited rotation
AV ouput & Charging Module has been insided
Does not need any Auto Pilot System supporting
3 Gyro sensors & 1 Position sensor inside
Supports automatic location function

The S-BUS output provides full functions, all function has been defined channel number:

Channel 1 : ROLL Control

Channel 2: Return to HOME

Channel 3: TILT Control

Channel 4: YAW Control

Channel 5: Mode switch

The recommend operation ways

1. Single person: Just connect PPM channel for switch HEAD FOLLOWING , HEAD LOCK and AUTO BACK TO HOME, does not need to connect S-BUS channel, One receiver can be used.

2. Two persons: Does not need to connect PPM channel, only S-BUS output channel provides full functions. But needs 2 receivers

  Notice: It does not need provide power to the receiver when you using two person mode, the A10-3H controller will provide the power to the receiver via the S-BUS.

Announcements

1.        Do not touch the gimbal during the initialization after turn on, Keep the gimbal in quietude

2.        Do not use BEC for the gimbal power, pls use 2~4S Lipo battery

3.        Strongly suggest using 12mm tube to mount the gimbal

4.        Make sure the center of gravity of the gimbal  is correct before using.
