12.5mm 12 Circuits Slip Ring for iPower Gimbal Motor GBM5208H-180T etc.

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure.The 12U-12, with 12 wires and compact 12.5mm body diameter. uses fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. 12U-12 is Compatible with data bus protocols,Transfers analog and digital signals.

Features

12 circuits
Compact size: 12.5mm(diamter)*18.5mm(L)
Gold-on-gold contacts
Compatible with data bus protocols
Transfers analog and digital signals
Speeds up to 250 rpm continuous
Precision ball bearings meet or exceed life requirements for most commercial applications

Benefits

Smooth running
Low torque
Compact dimemsions

12.5mm 12 Circuits Slip Ring for iPower Gimbal Motor GBM5208H-180T etc.

Specifications

Contact Material
Gold alloy brush,Gold plated rings
Current Rating
2A, per ring, maximum
Number of Circuits
12
Operating Speed
250 rpm* continuous
Housing Material
Engineering Plastics
Lead Wire
UL Teflon® Awg28,color-coded, silver-plated
Lead Lengths
210mm
Voltage
210 VDC / 240 VAC
Operating Temp.
-40°C to 80°C
Torque
Approx. ≤0.35 g·m (for reference )
Dielectric Strength
≥600V@50Hz between each circuit
Insulation Resistance
600MΩ@ 300VDC
Noise
15 milliohms maximum tested @ 6 VDC, 40 milliamps when running @ 5 - 15 rpm
Resistance to pull
Radial 2KG,Axial 0.5KG
Protection
IP51

*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

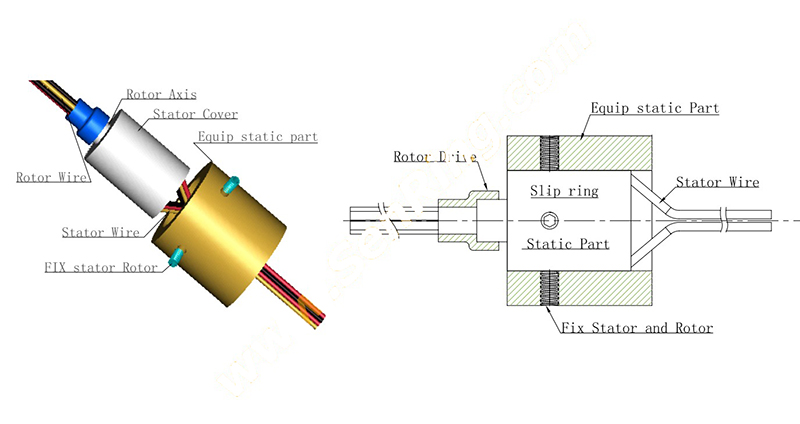

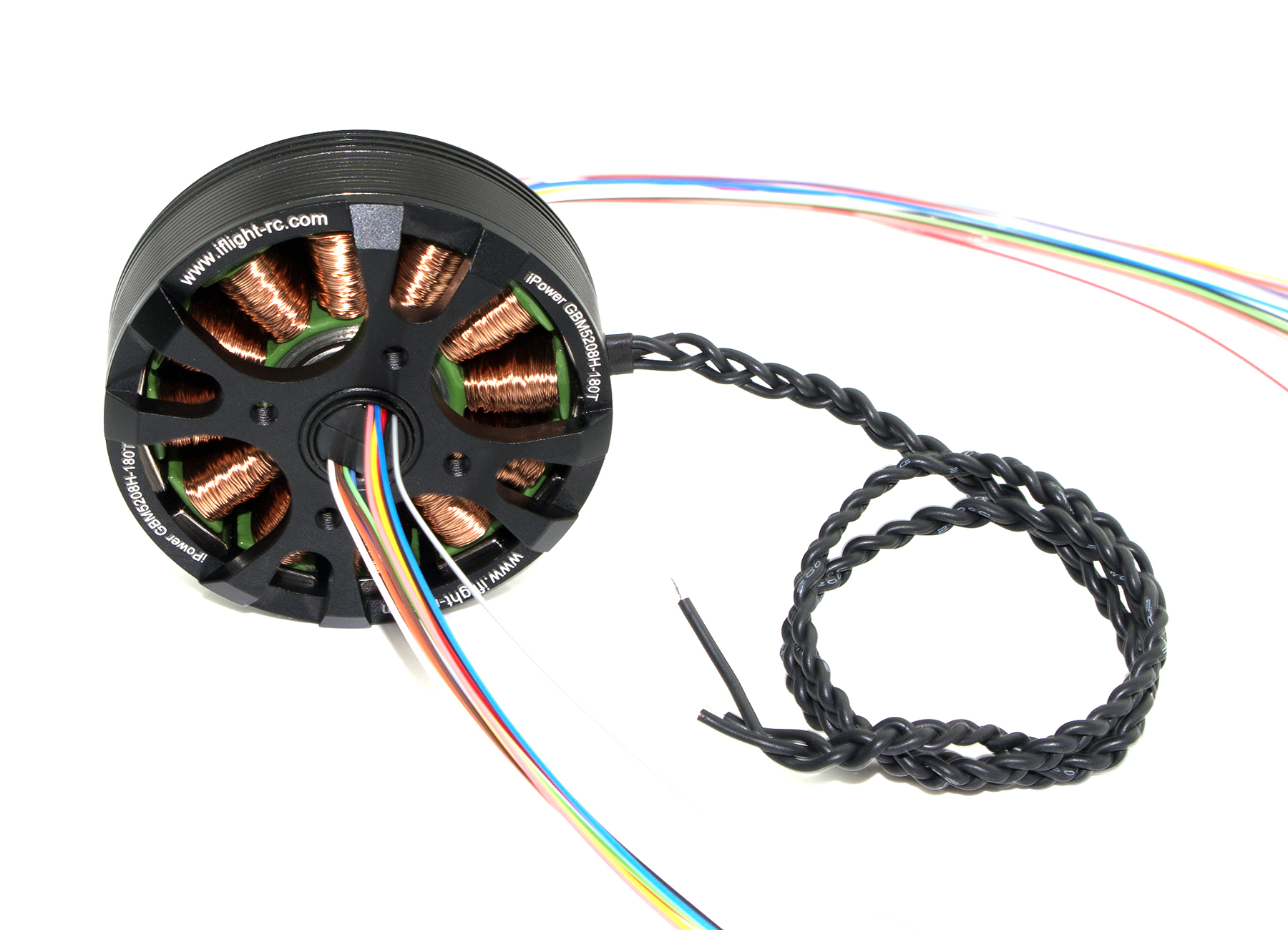

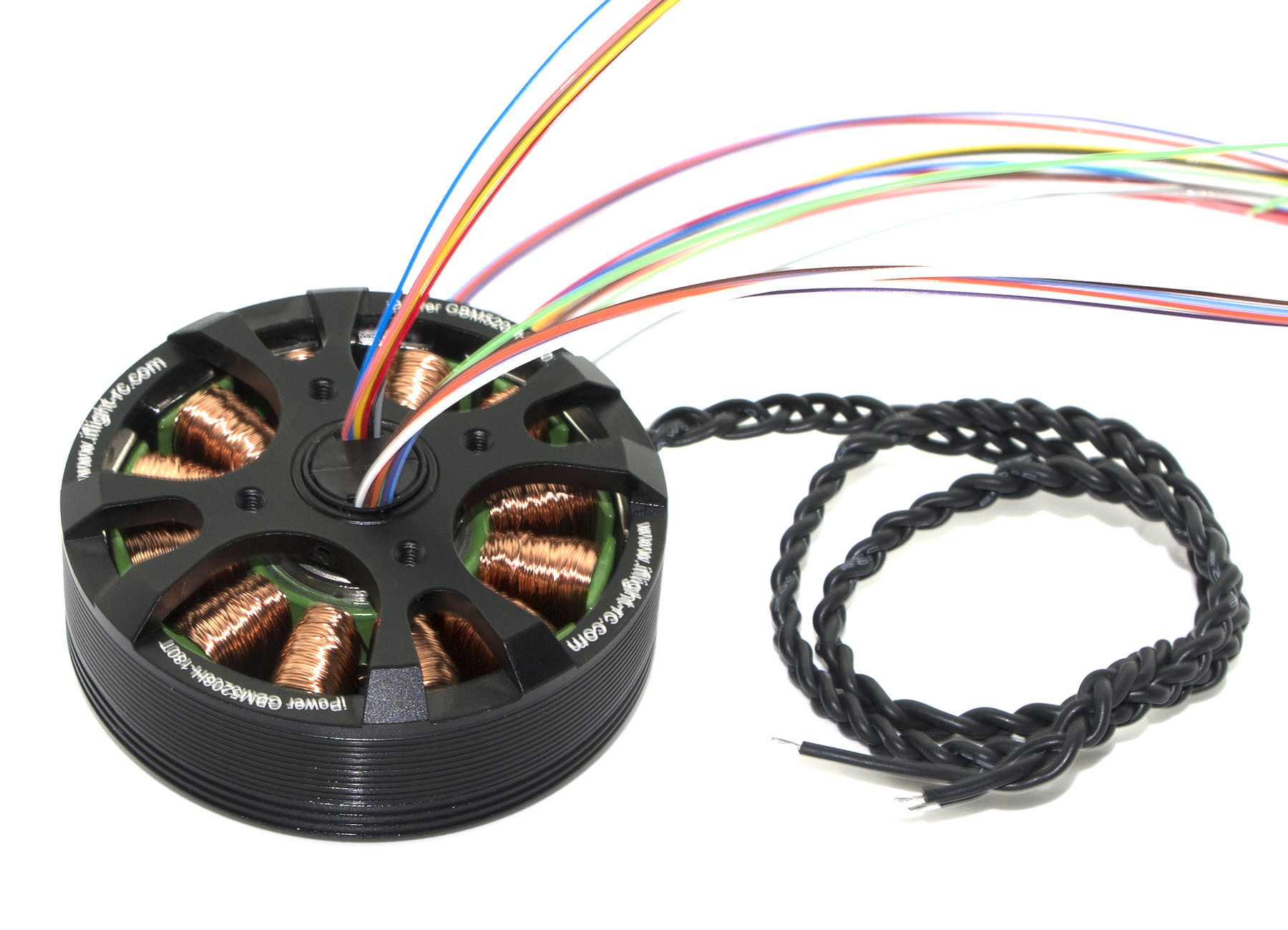

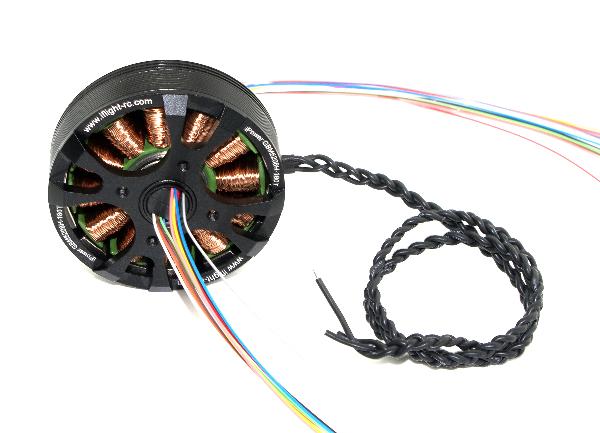

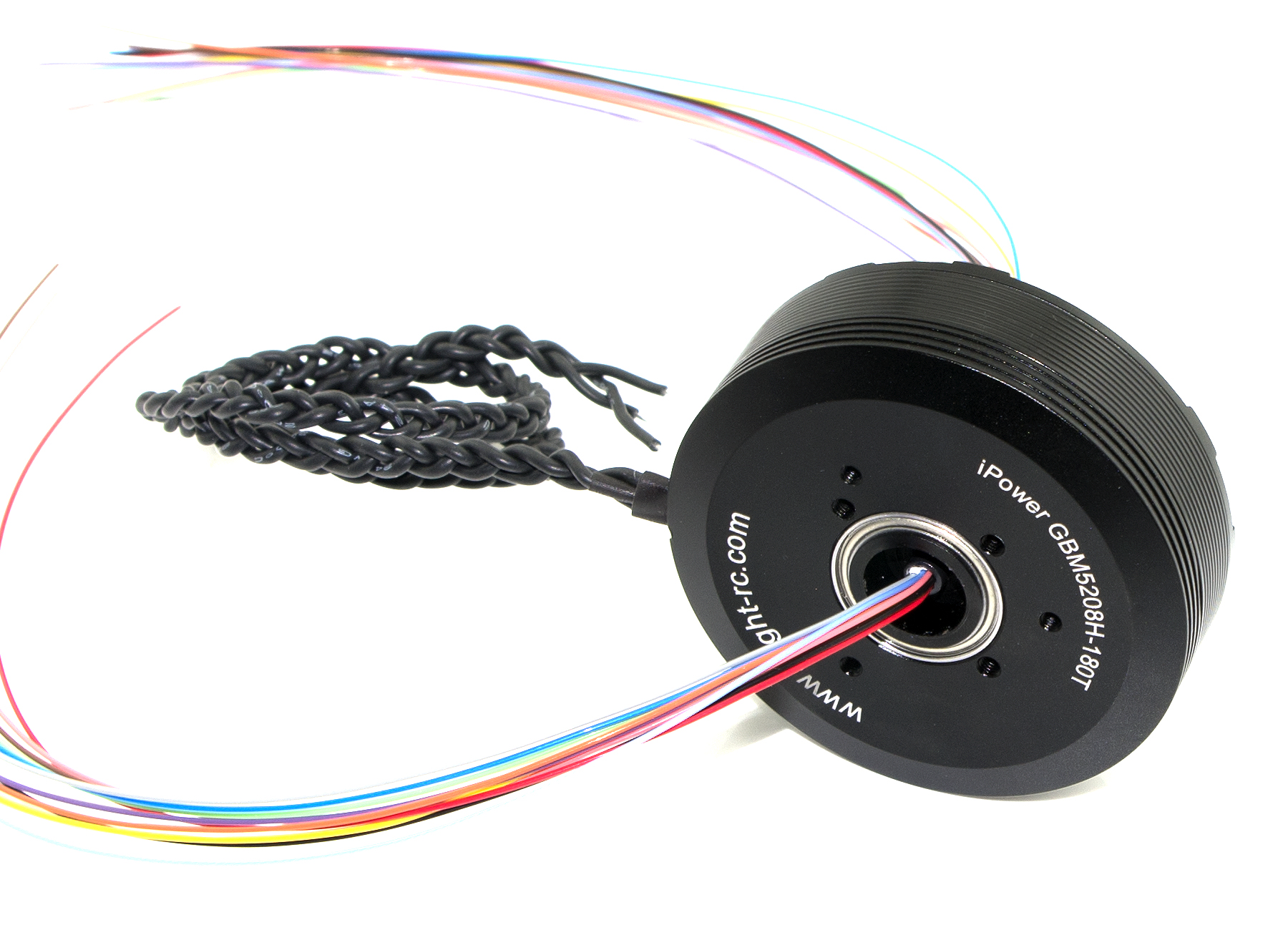

* THIS IS A SLIP RING ONLY, MOTOR IS NOT INCLUDED, MOTORS IN THE PHOTOS ARE FOR DEMONSTRATION PURPOSE ONLY.

Lead Wire Color Code

Circuit No.	1	2	3	4	5	5
Color	BLK	BRN	RED	ORN	YEL	GRN
Circuit No.	7	8	9	10	11	12
Color	BLU	PURPLE	GRY	WHT	RMK	AZURY
6 circuits/per group, groups with tags

Type Application

CCTV pan / tilt camera mounts	Electrical test equipment
Manufacturing and process control equipment	Medical equipment
Robotics	rotary index tables
Miniature cable reels	Laboratory equipment

Includes:
1 x slip ring
