Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Wires/Connectors etc. Connectors AMASS XT30ULB-M 2mm Bullet Male Connector
SKU:  XT30ULB

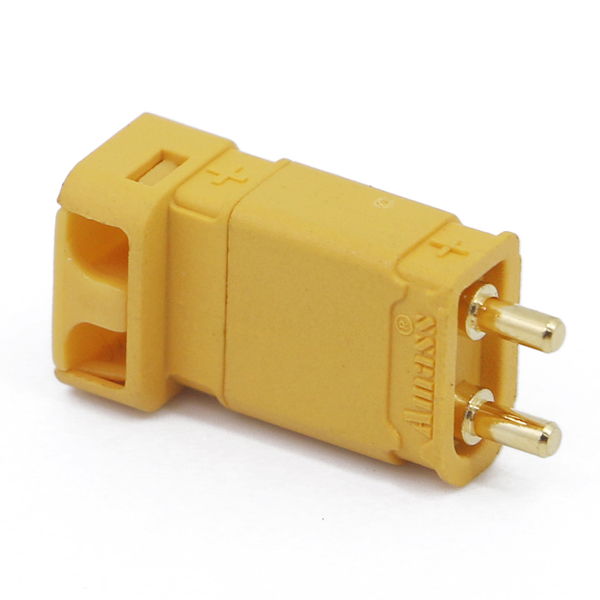

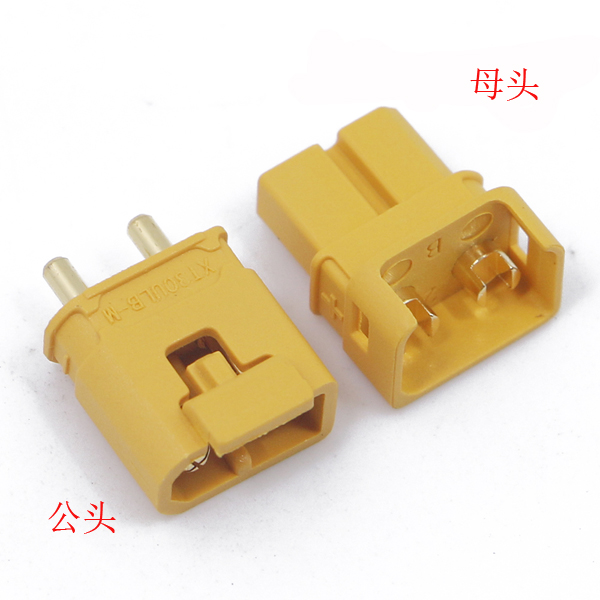

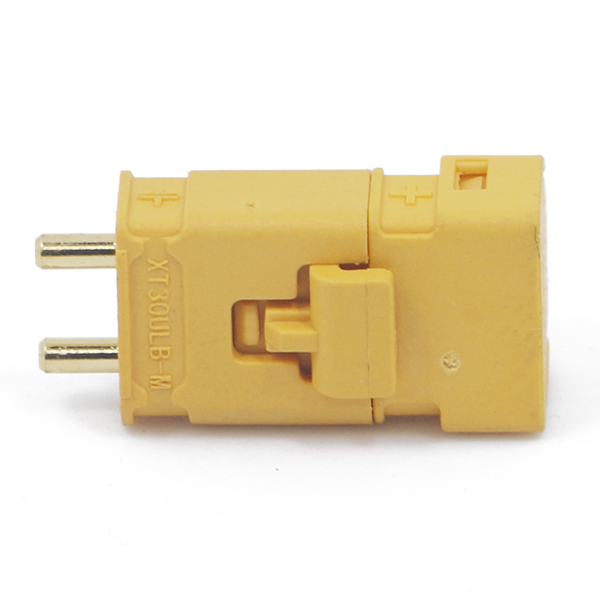

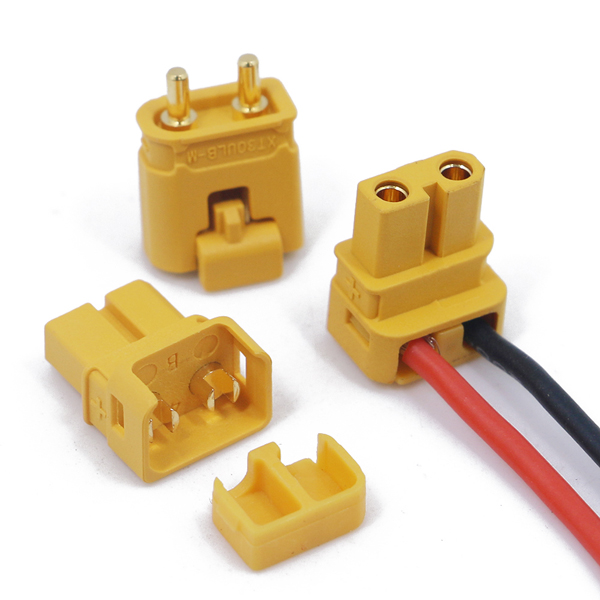

AMASS XT30ULB-M 2mm Bullet Male Connector
Customers rating.
Add To Wish List
Added:2020/07/19
Updated:2020/07/19
Follow Us on:


  Tags: AMASS  XT30ULB-M  2mm  Bullet  Male  Connector

Features:

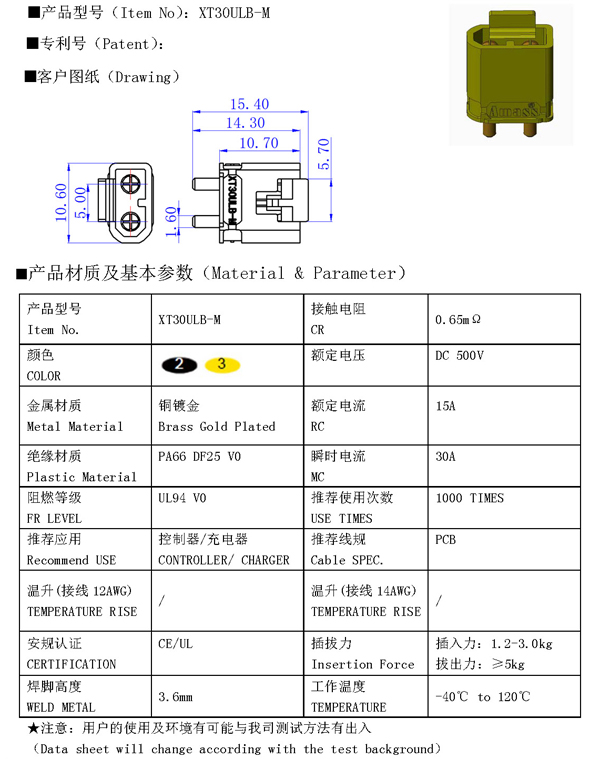

Specifications:

AMASS XT30ULB-M 2mm Bullet Male Connector


Item No.: XT30ULB-M
Rated voltage: DC500V
Rated  current: 15A
Peak current: 30A
Contact Resistance: 0.65mΩ
Metal material: Brass, gold plated
Plastic material: PA
Use times: 1000 times
Cable spec: recommended for PCB
Weld Metal Length: 3.6mm
Insertion force: 1.2-3.0kg
Detach force: ≥5kg
Certification: CE/UL
Working temperature: -40 to 120

Includes/Requires:
Include:
1x XT30ULB-M male Connector

* One male connector only.
