BVM-8S 1-8S Cell Battery Voltage Meter

Features:
* Small size with multiple functions, backlight 128 x 64 lattices LCD and Buzzer Tone Reminder; the interface can be operated smoothly.
* Battery voltage meter can not only measure 1-8cell Lipo battery individual voltage, but also measure NiMh, NiC, Pb battery pack voltage.
* It can be set individual voltage alarm, low voltage alarm, differential voltage alarm. What's more, the extra alarm output can be linkage controlled by the user.
* It has 5 sets default monitor alarm settings which can be selected for different battery packs.

Input Cell number: 1 to 8S Lipo
Pack voltage range: 3.3 to 24V
Cell voltage range: 0.5 to 5V
Alarm cell low voltage range: 2 to 4V
Voltage display resolution: 0.001V
Current loading of test: 24mA
Weight: 23g
Size: 67 x 39 x 13 mm

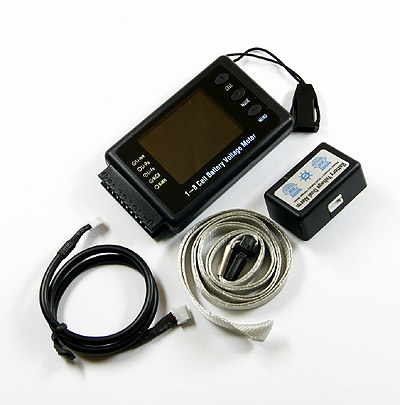

Includes:
1 x cell meter

Average Customer Review: 4 stars

1 customer review(s). [Write a review/question]

b****teeth
STD member

Grade:

Have received this battery checker in 4days within of order. it is compact and simple to use. I like the big colour screen that can customise my prefer display with bar graph
October 03 2013 Was this review helpful to you?
