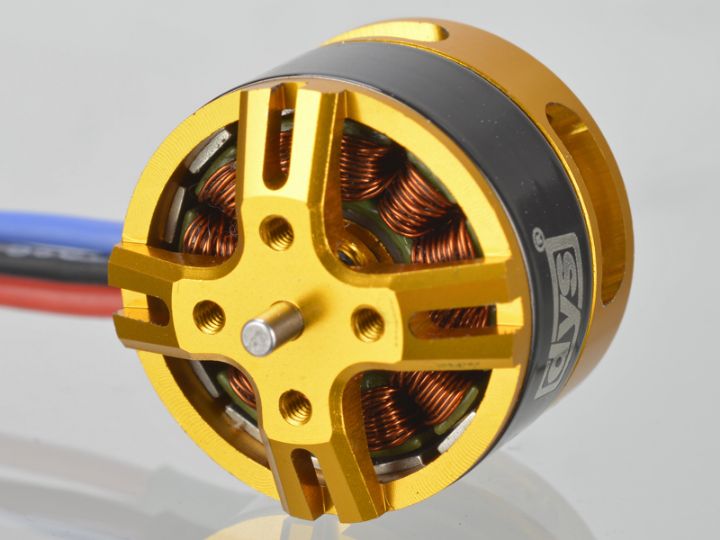

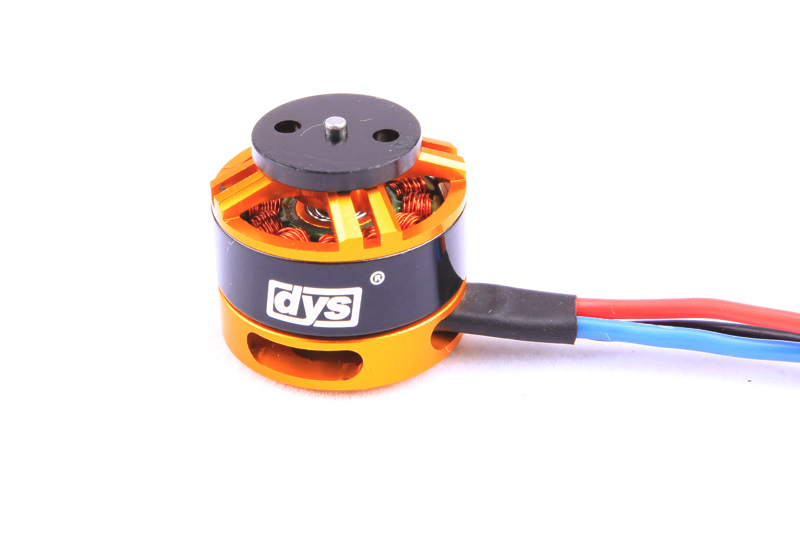

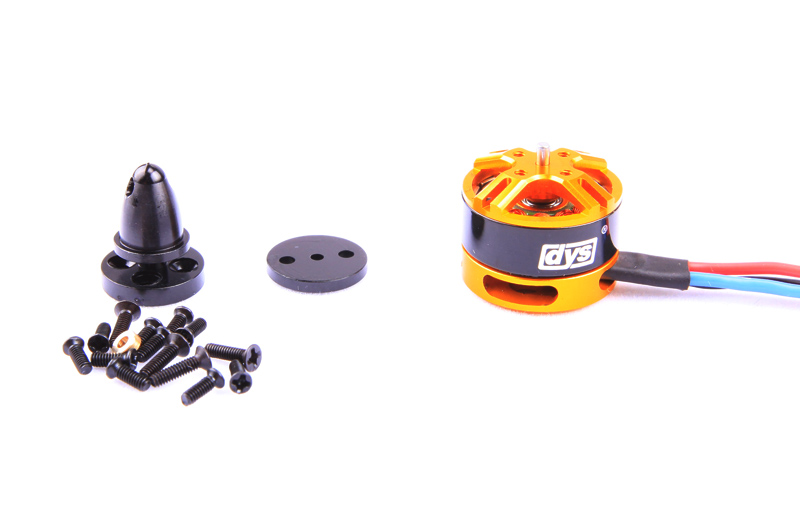

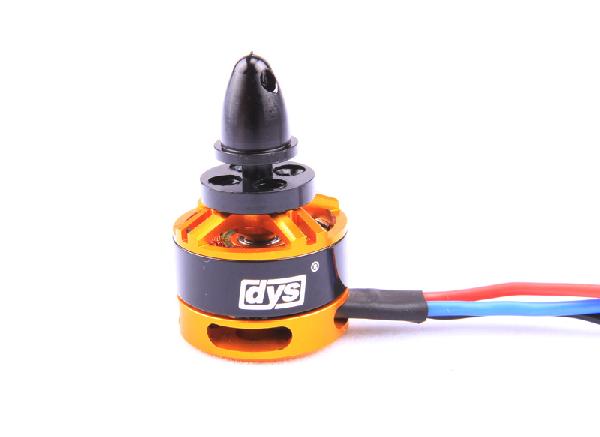

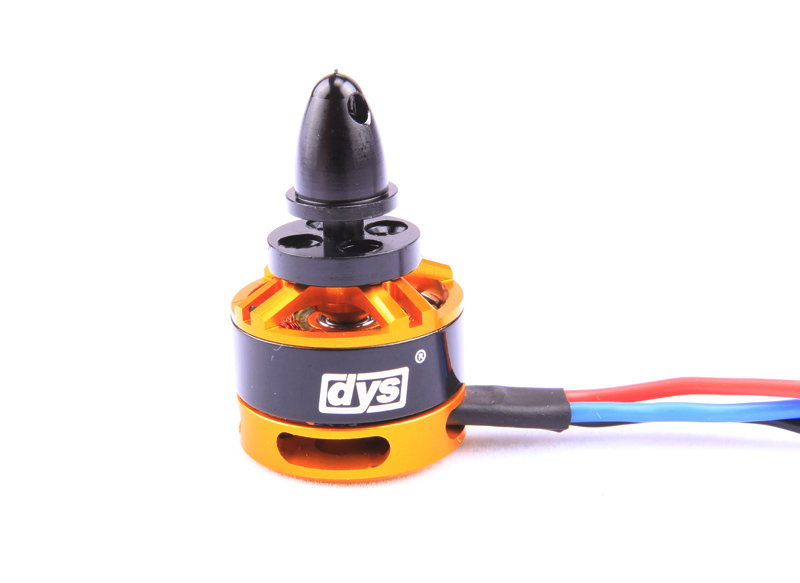

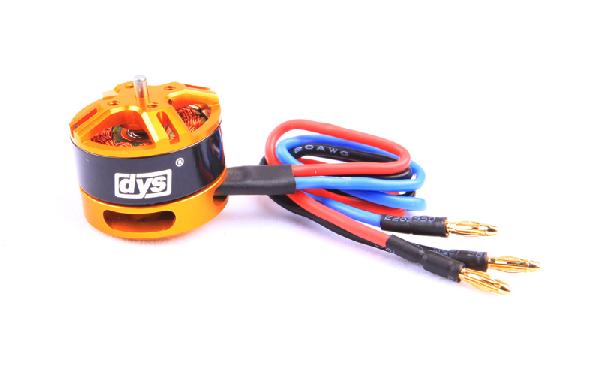

DYS BE1806 / 2300KV 2-3S Outrunner Brushless Motor for Mini Multicopters
Customers rating.
Add To Wish List
Added:2014/06/11
Updated:2014/06/11
Follow Us on:


  Tags: multi-rotor  brushless motor  DYS mini quadcopter

Specifications:

DYS BE1806 / 2300KV 2-3S Outrunner Brushless Motor for Mini Multicopters

Specifications:
KV..............................................................................................................2300
Configu ration....................................................................................NP
Stator Diameter....................................................................................23mm
Stator Length..........................................................................................18.5mm
Shaft Diameter.......................................................................................2.0mm
Motor Dimensions(Dia.*Len)...............................................Φ23×18.5mm
Weight (g)...................................................................................................18g
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)............................................................7.6A
Max Continuous Power(W)...........................................................84.4W

Item No. NO LOADON LOAD   LOAD TYPE
BE1806-13
(2300KV)
VOLTAGECURRENTSPEEDCURRENTPullPowerEEPBattery/prop
VArpmAgW%
7.40.6170606.539048.1 8.1 LiPoх2/6X2
7.652156.2 9.3 LiPoх2/7X2.4
11.10.6255906.539072.2 5.4 LiPoх3/5X3
7.652184.4 6.2 LiPoх3/6X2



Includes/Requires:
Includes:
1 x motor
