   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers EV-Peak AC 110/220V Input 1-6S 4x 100W Balance Charger CQ3 | Latest firmware, support high voltage cell
SKU:  EV-CQ3
Browse EV-PEAK

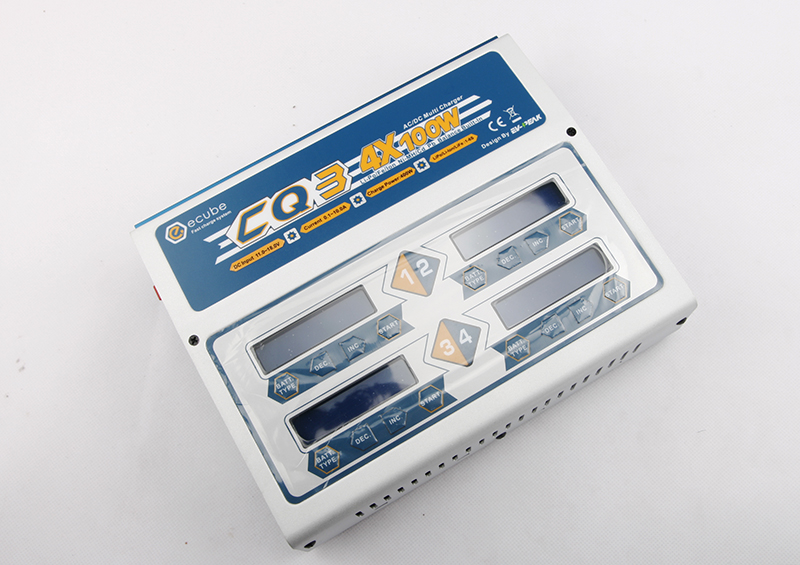

EV-Peak AC 110/220V Input 1-6S 4x 100W Balance Charger CQ3 | Latest firmware, support high voltage cell
Customers rating.
Add To Wish List
Bookmark and Share
Added:2015/08/18
Updated:2016/05/09
Follow Us on:

E11611460115


PRICE(USD):
    $140.79   In stock
Member PRICE:
    Sign in or Sign up for member price

QTY:


  Tags: EV-Peak  AC  110  220V  Input  1-6S  4x  100W  Balance  Charger  CQ3

Features:

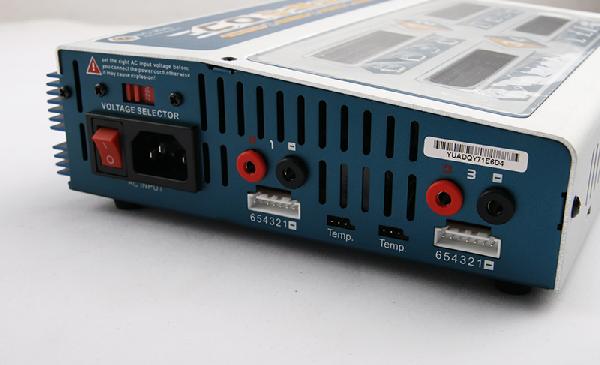

THIS VERSION  SUPPORTS BOTH 110V & 220V INPUT USING A SWITCH.

MAKE SURE THE 110V/220V INPUT SWITCH IS IN CORRECT POSITION BEFORE PLUG IT INTO YOUR AC POWER SUPPLY.
Specifications:

EV-Peak AC 110/220V Input 1-6S  4x 100W Balance Charger CQ3


AC Input voltage range 220V/110V switchable
DC Input voltage range DC 11.0V～18.0V
Charge current range 0.1A～10A
Discharge current range 0.1A～5.0A
Charge power limited  100Wx4
Discharge power limited 10Wx4
Energy transfer discharge: max 400W
Balance tolerance ±0.01V
Balance current: max 400mA
NiCd/NiMH battery cell count 1～16cells
Lithium battery types Li-Po, Li-ion,Li-Fe
Lithium battery cell count 1-6series
Pb battery voltage 2V～20V
Dimension: 220 x 240 x 68mm

*Wall plug type: 2-round pin (EU type) . Plug type is not optional, please use wall plug adaptor in case your country using a different wall plug.
Customer Reviews:
No customer review yet.   [Write a review/question]

e****rodda
Question :
Hi,
I purchased an EV-Peak CQ3 and ended up with the BGUAD model (Red case)
I have found that when I use the Digital Power mode, the voltage varies around what I set it to.
eg. if i set it to 12.0Volts and then turn that channel on the voltage varies up and down around the 12V. ie. varying from about 11.8 to 12.2 random voltages but continually changing.
If you have a CQ3 would you be able to set to the Digital Power mode to see if you get the same result?
You have to turn the channel on to see the changing voltage.
Please let me know what result that you get.
Thanks,
Eric
(Australia)
September 25 2023     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]
