EXTREME Brushless Motor Checker BMC-01

SKU: BMC-01

Browse SKYRC

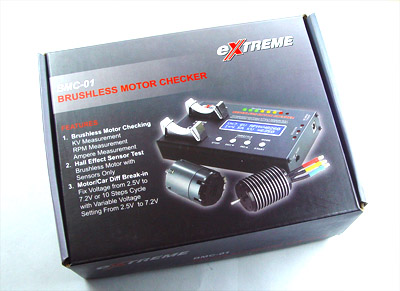

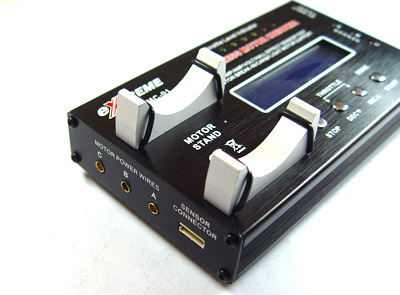

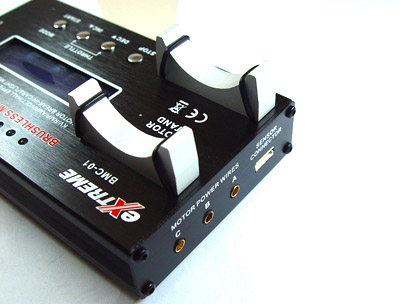

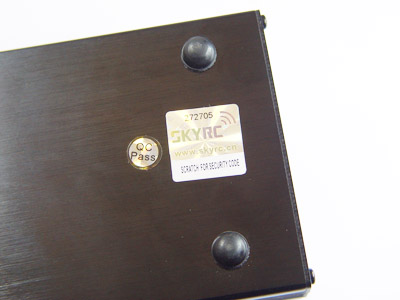

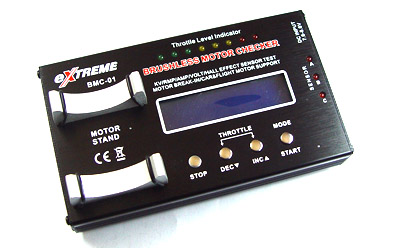

EXTREME Brushless Motor Checker BMC-01

Customers rating.

Add To Wish List

Added:2010/04/06
Updated:2011/05/25

Follow @HiModel

Tags: EXTREME Brushless Motor Checker BMC-01

Features:

1. Brushless Motor Checking
KV Measurement
RPM Measurement
Ampere Measrement
2. Hall Effect Sensor Test
Brushless Motor With Sensors Only
3. Motor/Car Diff Break-in
Fix Voltage form 2.5V to 7.2V or 10 Steps Cycle with Variable Voltage
Setting from 2.5V to 7.2V

Specifications:

Input Voltage:7.4-8.6V (Suggested to use a 7.4V 2S1P LiPo Battery)
LCD Display Screen: Blue Backlight background, white text, 16 characters x 2 lines
Dimension:136.5mm x 80.6mm x 47mm
Net Weight: 290g
Supported Motor: Sensor or Sensor-less Brushless motor.
(a) Standard 540 size RC car motor:2.5 turn or over, 2 Poles(In-runner motor)
(b) Flight Motor: support sensor-less brushless motor, 6 poles(Out-runner motor)
Current Drawn less than 18A at 8.4V without loading.

Includes/Requires:

Includes:

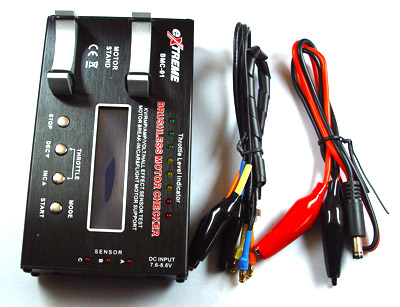

1 x BMC-01 with accessories.
1 x English manual.
