   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner EdgeRacing 2204 2300KV Competition/ Racing Class Brushless Motor CCW
   Multi-rotors Motors
SKU:  EG2204CCW

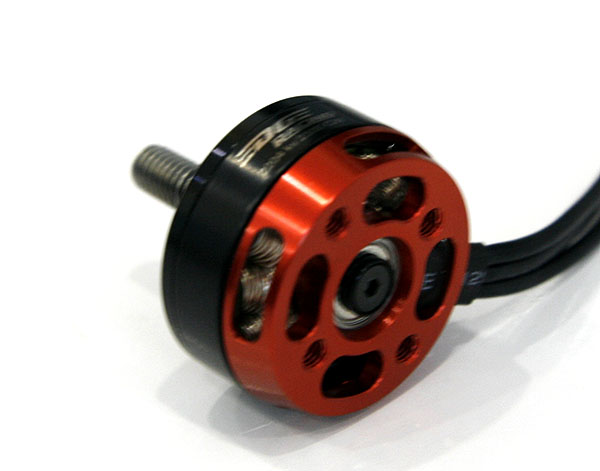

EdgeRacing 2204 2300KV Competition/ Racing Class Brushless Motor CCW
Customers rating.
Add To Wish List
Added:2016/05/27
Updated:2016/07/08
Follow Us on:


  Tags: EdgeRacing 2204 2300KV Competition/ Racing Class Brushless Motor

Specifications:

EdgeRacing 2204 2300KV Competition/ Racing Class Brushless Motor CCW



Stator Diameter22mm
Stator Thickness4mm
No.of Stator Arms12
No.of Stator Poles14
Motor Kv2300
NO-Load Current(A/10V)1.1
Motor Resistance65mΩ
Max Continuous Current20A/15S
Max Continuous Power300W
Weight26.5g
Outside Diameter28mm
Shaft Diameter5mm
Body Length17.3mm
Overall Shaft Length30.3mm
Max Lipo Cell2-4S
ESC30A
Recommend Prop(inch)5x3/ 5 x 4/ 5 x 4.5




PropVoltsAmps Thrust(g)Watts (W)Efficiency
(g/W)
Full throttle Temperature (environment temp. 25℃)
(inch)(V)(A)g/W
HQ5*311.11.510016.656.01
2.415026.645.63
3.520038.855.15
4.625051.064.90
5.830064.384.66
7.335081.034.32
8.540094.354.2440℃
14.81.210017.765.63
1.915028.125.33
2.720039.965.01
3.725054.764.57
4.730069.564.31
5.835085.844.08
6.9400102.123.92
8450118.43.80
9.2500136.163.67
10.6550156.883.51
12600177.63.38
12.9640190.923.3545℃
HQ5*411.11.610017.765.63
2.715029.975.01
3.820042.184.74
5.125056.614.42
6.430071.044.22
7.835086.584.04
9.4400104.343.83
10.9450120.993.72
13.4510148.743.4345℃
14.81.210017.765.63
2.115031.084.83
2.920042.924.66
425059.24.22
5.230076.963.90
6.235091.763.81
7.4400109.523.65
8.8450130.243.46
10.2500150.963.31
11.5550170.23.23
12.9600190.923.14
14.5650214.63.03
16.2700239.762.92
18750266.42.82
19.6800290.082.7660℃
HQ5*4.511.11.510016.656.01
2.515027.755.41
3.620039.965.01
4.925054.394.60
6.130067.714.43
7.635084.364.15
9.2400102.123.92
10.9450120.993.72
13.3520147.633.5245℃
14.81.210017.765.63
215029.65.07
2.920042.924.66
3.925057.724.33
5300744.05
6.135090.283.88
7.3400108.043.70
8.7450128.763.49
10.1500149.483.34
11.5550170.23.23
13600192.43.12
14.6650216.083.01
16.5700244.22.87
18.3750270.842.77
20.1800297.482.6955℃

Includes/Requires:
Includes:
1 x brushless motor
