   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner EdgeRacing Lite 2205 2300KV Competition/ Racing Class Brushless Motor CW
   Multi-rotors Motors
SKU:  LT2223CW

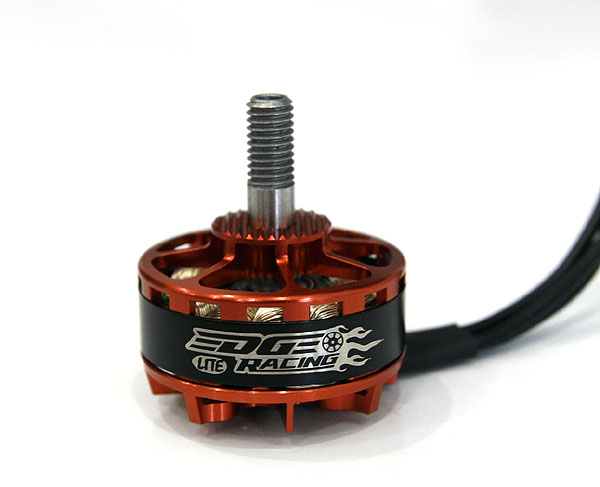

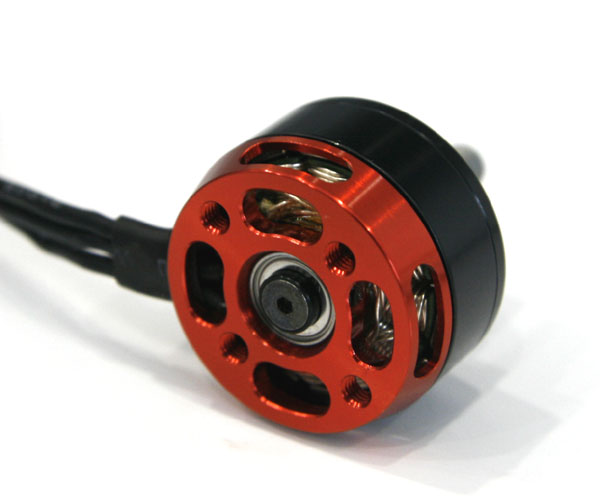

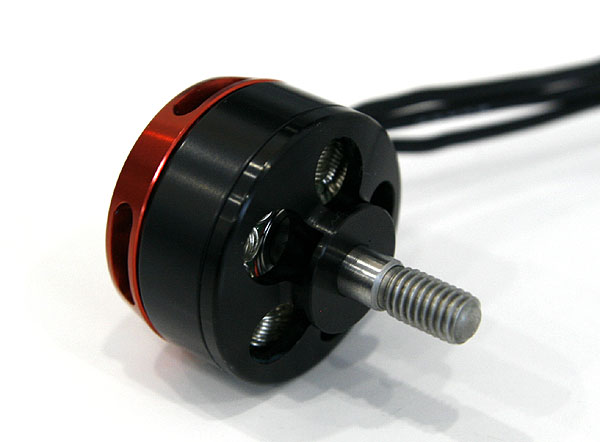

EdgeRacing Lite 2205 2300KV Competition/ Racing Class Brushless Motor CW
Customers rating.
Add To Wish List
Added:2016/05/27
Updated:2016/07/08
Follow Us on:


  Tags: EdgeRacing 2205 2300KV Competition/ Racing Class Brushless Motor

Specifications:

EdgeRacing Lite 2205 2300KV Competition/ Racing Class Brushless Motor CW



Stator Diameter22mm
Stator Thickness5mm
No.of Stator Arms12
No.of Stator Poles14
Motor Kv2300
NO-Load Current(A/10V)1
Motor Resistance53mΩ
Max Continuous Current26A/10S
Max Continuous Power385W
Weight28g
Outside Diameter28mm
Shaft Diameter5mm
Body Length18.5mm
Overall Shaft Length31.5mm
Max Lipo Cell2-4S
ESC30A-40A
Recommend Prop(inch)5x3 / 5x4/ 5x4.5





PropVoltsAmps Thrust(g)Watts (W)Efficiency
(g/W)
Full throttle Temperature (environment temp. 25℃)
(inch)(V)(A)g/W
HQ5*311.11.610017.765.630630631
2.515027.755.405405405
3.520038.855.148005148
4.725052.174.792026069
5.930065.494.580852038
7.235079.924.379379379
8.943098.794.35266727440℃
14.81.210017.765.630630631
215029.65.067567568
2.920042.924.659832246
3.825056.244.445234708
4.830071.044.222972973
5.835085.844.077353215
6.9400102.123.916960439
8450118.43.800675676
9.2500136.163.672150411
10.5550155.43.539253539
11.7600173.163.465003465
12.9650190.923.404567358
13.8690204.243.37837837845℃
HQ5*411.11.610017.765.630630631
2.615028.865.197505198
3.720041.074.869734599
525055.54.504504505
6.230068.824.359197908
7.835086.584.042504043
9.2400102.123.916960439
10.6450117.663.824579296
12.3500136.533.662198784
13.7550152.073.61675544245℃
14.81.210017.765.630630631
215029.65.067567568
2.920042.924.659832246
425059.24.222972973
5300744.054054054
6.235091.763.814298169
7.3400108.043.702332469
8.5450125.83.577106518
9.8500145.043.447324876
11.2550165.763.318050193
12.4600183.523.269398431
13.8650204.243.182530356
15.3700226.443.091326621
16.8750248.643.016409266
18.3800270.842.953773446
20.1850297.482.857334947
21.5900318.22.82840980555℃
HQ5*4.511.11.410015.546.435006435
2.415026.645.630630631
3.420037.745.299417064
4.825053.284.692192192
630066.64.504504505
7.535083.254.204204204
940099.94.004004004
10.4450115.443.898128898
12500133.23.753753754
13.8560153.183.65582974345℃
14.81.210017.765.630630631
1.915028.125.33428165
2.820041.444.826254826
3.925057.724.331254331
4.930072.524.136789851
6.135090.283.876827647
7.3400108.043.702332469
8.5450125.83.577106518
9.8500145.043.447324876
11.1550164.283.347942537
12.4600183.523.269398431
13.7650202.763.205760505
15.4700227.923.071253071
17750251.62.980922099
19800281.22.844950213
20.7850306.362.774513644
22.3910330.042.75724154655℃
HQ5*4*314.81.110016.286.142506143
215029.65.067567568
2.820041.444.826254826
3.825056.244.445234708
4.930072.524.136789851
6.135090.283.876827647
7.3400108.043.702332469
8.4450124.323.61969112
9.7500143.563.482864308
11550162.83.378378378
12.56001853.243243243
14650207.23.137065637
15.4700227.923.071253071
16.9750250.122.998560691
18.5800273.82.92184076
20.3850300.442.829183864
22.1900327.082.751620399
24950355.22.67454955
25.81010381.842.64508694755℃

Includes/Requires:
Includes:
1 x  brushless motor
