   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars Ezrun-SC10 70A Brushless ESC for Short Course Truck
SKU:  WP-80ASL
Browse HOBBYWING

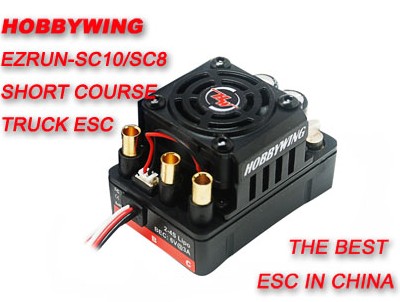

Ezrun-SC10 70A Brushless ESC for Short Course Truck
Customers rating.
Add To Wish List
Added:2010/11/13
Updated:2016/12/21
Follow Us on:


  Tags: eZRun-sc10  Brushless ESC  short course combo

Features:
1 Integrated and compact design, very suitable for short course trucks and buggies.
2 The built-in switching mode BEC of EZRUN-SC8 ESC has a powerful output to supply all electronic equipments even with 4S Lipo input.
3 Excellent start-up, acceleration and linearity features.
4 With 3 running modes: Racing mode (Forward), Forward/Backward mode and Rock Crawler mode.
5 With 4 steps of maximum reverse force adjustment.
6 Proportional ABS brake function with 5 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
7 Compatible with mechanical disc-brake system.
8 With 9 start modes (Also called "Punch" ) from "Soft" to "Very aggressive" to suitable for different tracks.
9 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
10 With 8 steps of timing adjustment to get the best compatibility with various of motors.
11 Easily program with only one button and compatible with pocket-sized LED Program Card and the Advanced LCD Program Box.
12 ESC firmware updatable via an USB adapter on the Advanced LCD Program Box.
13 The major electronic components are sealed against splashing water and dust.
14 2 mounting holes on the bottom are helpful for firmly installing the ESC on the chassis.

4 Programmable Items (Click the following picture to enlarge it)

Specifications:
1.1 Output:
EZRUN-SC10 ESC: Continuous current 70A, burst current 520A;

1.2 Input:
EZRUN-SC10 ESC: 6-9 cells NiMH/NiCd or 2-3S Lipo;

1.3 BEC Output: Note1
EZRUN-SC10 ESC: 6V/3A (Linear mode);

1.4 Resistance:
EZRUN-SC10 ESC: 0.0007 Ohm;

1.5 Motor Supported: Sensorless Brushless Motor
1.6 Suitable Brushless Motor:
EZRUN-SC10 ESC:
With 6 cells NiMH/NiCd or 2S Lipo: KV≤6000;
With 7-9 cells NiMH/NiCd or 3S Lipo: KV≤4000;

1.7 Suitable Car:
EZRUN-SC10 ESC: 1/10th scale 2WD short course truck / buggy / monster;

1.8 Size: 53.5mm(L) * 36mm(W) * 36mm(H).
1.9 Weight:
EZRUN-SC10 ESC: 88g;

Note1: The cooling fan of EZRUN-SC10 and EZRUN-SC8 is powered by the built-in BEC of 6V.
Includes/Requires:
Includes:
1 x ESC EZRUN-SC10
