HL W42-30 630KV Outrunner Brushless Motor - Supports 4S, 2kg pull

Multi-rotors

Motors

SKU: 4230-630

Browse HL

HL W42-30 630KV Outrunner Brushless Motor - Supports 4S, 2kg pull

Customers rating.

Add To Wish List

Added:2012/12/27
Updated:2013/10/22

Follow @HiModel

847249933678

	PRICE(USD): $42.02 Discontinued Suggesting Restock
	Member PRICE: Sign in or Sign up for member price

Tags: multi-rotor brushless motor

Features:

- Improved based on the previous very successful 42-25 series motors, larger in pull and higher in efficiency.

Suit for 3-8kg fly wight 4-8 axles multi-copters.

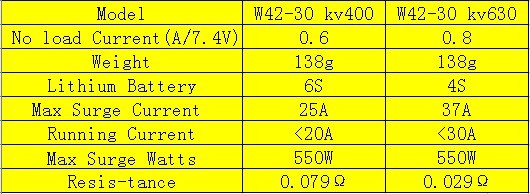

Specifications:

Model: W42-30 630KV
Idel current: 0.8A at 7.4V
Net weight: 138g
Max cell number supported: 4S Lipo
Max current: 37A
Recommended ESC: 40A
Working current: <30A
Max power: 550W
Internal resistance: 0.029Ω
Mounting spacing: 25/25mm
Prop adaptor output shaft diameter: 6mm
Direct mounting support: Yes
Wire length: 50cm

Application: specially designed for quadcopter and multi-rotor aircrafts.

Includes/Requires:

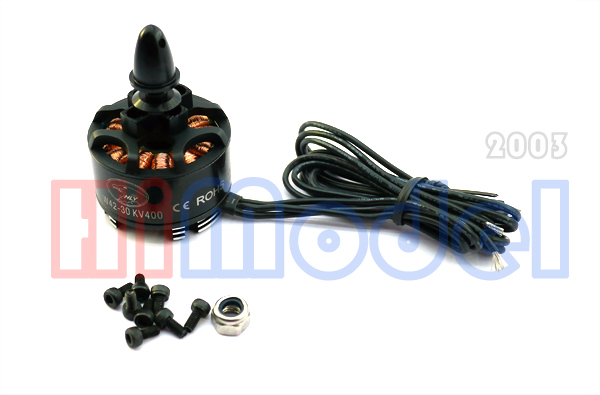

Includes:
1 x motor
1 x prop adaptor
1 x screw bag

*Connectors are not included

Customer Reviews:

Average Customer Review: 4 stars

2 customer review(s). [Write a review/question]

r****n_spb
STD member

Grade:

Just tested 42-30 motor (630kv) with 16x5.5 prop and fully charged 4s LiPo (16v). Max pull was 2.6 kg at 500w (5 g/w :))
September 11 2013 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

r****lf

Question :
Question to this information:

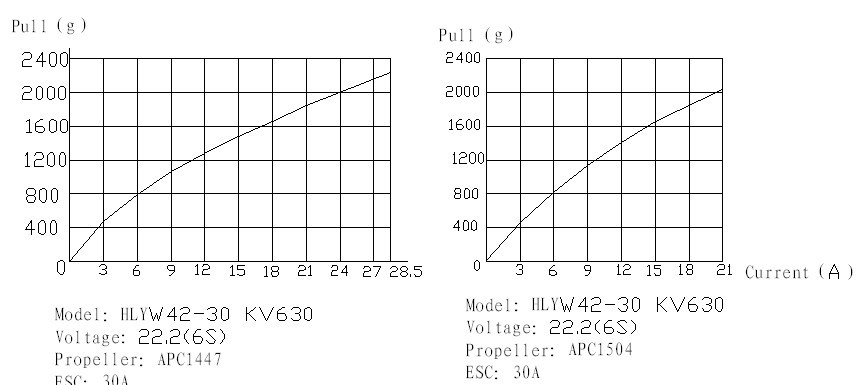

The 42-30 with 630 kV is for 4s, but the diagrams show 22.2 V (6s) and 2kg pull. What is the pull at 4s ?
The data are somehow confusing !!!
January 25 2013 Was this question helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this question]
