Specifications:

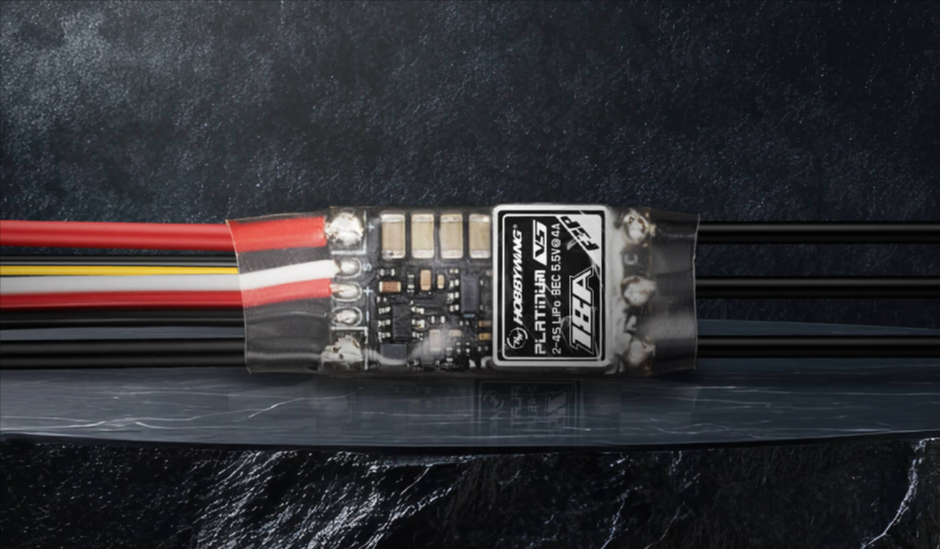

HOBBYWING Platinum-18A-V5-F3P Speed Control ESC


Product NamePlatinum 18A V5 F3P
Product Number
  •
  • 30202100
Type
  • Brushed/Brushless
  • High Voltage/Regular
  • Brushless
  • Regular
Specifications
  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 18A/30A
  • 2-4S LiPo
  • Switch Mode：5.5V & Cont. 4A，Peak 6A
Wires & Connectors
  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Red-18AWG-100mm*1/Black-18AWG-100mm*1
  • Black-20AWG-100mm*3
  • No
  • 2.0mm Gold Connectors (Female)
ESC Programing via
  • Transmitter
  • LED Program Card
  • LED Program Box
  • LCD Program Box
  • OTA Programmer
  • Program Port
  • Not Supported
  • Not Supported
  • Not Supported
  • Supported
  • Supported
  • Separate Program Cable
Firmware
  • Firmware Upgrade
  • Supported
Telemetry Function
  •
  • Futaba S.Bus2；etc.
Size & Weight
  • Size
  • Weight
  • 24.6*12.8*7.5mm
  • 11.9g (INCL wires)
Application
  •
  • 120g-320g F3P electric fixed-wing

Includes/Requires:
Includes:
1 x ESC
