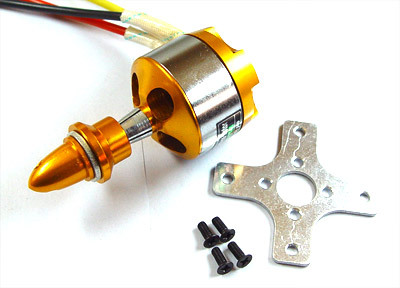

HiModel BM2908 1100KV Outrunner Brushless Motor W/ Prop Shaft Adaptor

DIMENSION:D36.4*51.7mm ( 31.5mm excluding the shaft)
Shaft Diameter: 5mm
WEIGHT:91g
MAX EFFICIENCY:90%
BATTERY:3 LIPO
KV:1100
PROPOLLER:10*5/11*6
CURRENT:1.7-25A
VOLTAGE:7.2-12.6V
IO:2.2A
( Thrust 1.1kg with 10*5 prop and 3-cell Lipo )

Diameter of Motor Mount Screw: M3
Distance of Motor Mount Screw Holes: 20mm

Prop Shaft Adaptor Specs:
Motor Shaft Hole Diameter:5mm
Prop Shaft Diameter: 7.80mm

Suggested configuration when using Towerpro 30A ESC:

Time advance: 2,7
PWM: 8K ( 32K is suit for motors above KV6000 )

2005-11-09

Better to use an ESC around 35-40A rather than the Towerpro 30A, because it may overhot for the Towerpro 30A at continuous full throttle.
2006/08/22
