   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner HiModel BM2915 930KV Outrunner Brushless Motor W/ Prop Shaft Adaptor
SKU:  BM2915
Browse HiModel

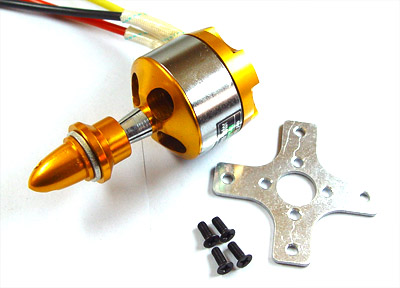

HiModel BM2915 930KV Outrunner Brushless Motor W/ Prop Shaft Adaptor
Customers rating.
Add To Wish List
Added:2005/10/11
Updated:2010/03/27
Follow Us on:

Click for more images

  Tags: HiModel  BM2915  930KV  Outrunner  Brushless  Motor  W  Prop  Shaft  Adaptor

Features:
This motor is a replacement motor for a .30 sized glow engine and is recommended for planes up to 1.8kg / 64 oz flight weight.
Specifications:
DIMENSION:D36.4*51.7mm ( 37.3mm excluding the shaft)
Shaft Diameter: 5mm
WEIGHT:123g
MAX EFFICIENCY:90%
No Load Current:3.1A
BATTERY:3 Cell LIPO
KV:930
CURRENT:3A-35A
Max Watts: 450 W
VOLTAGE:7.2-16.8V
Diameter of Motor Mount Screw: M3
Recommended prop: 9 x 6 or 9 x 7.5 APC
Collet-type prop adapter: for 8mm bore props
Suggested ESC timing advance: 15-25 degrees

Prop Shaft Adaptor Specs:
Motor Shaft Hole Diameter:5mm
Prop Shaft Diameter: 7.80mm

Distance of Motor Mount Screw Holes: 20mm
Includes/Requires:
Include:
1 x Outrunner Motor
1 x Prop Shaft Adaptor
2 x Set Screws for the prop shaft adaptor
1 x Motor Mount Plate
