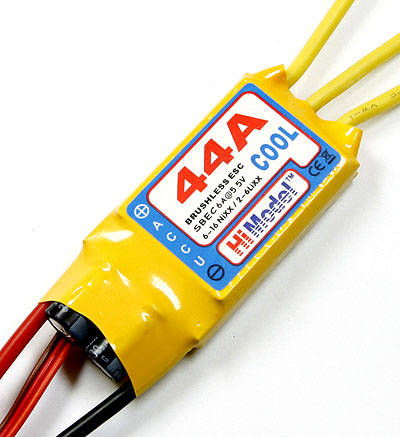

HiModel COOL Series 2-6S 44A Brushless Speed Controller 44A/SBEC

HiModel COOL Series Brushless Speed Controller for airplane/helicopter etc.

Features：

●Super fine and smooth touch of speed controlling, first-rate accurate linearity and quick-respond speed of throttle.
●With High Performance CPU of 24MHZ, Separate voltage regulator IC for MCU (Micro Controller Unit), high capability of anti-interference to decrease the possibility out of control.
●Low-voltage cut-off protection of battery, blocked rotation protection and throttle signal lose protection, etc. All these functions can prolong the service life of ESC effectively.
●Good and safe performance of power-on. The motor won’t be started no matter which position the throttle stick is on when the battery is connected.
●Low torque "soft start," protecting gear box
●LED status indicator (LED keep shine under full throttle)
●Easy Installation, can change motor rotation direction by Prog-card
●Compatible for fixed wing airplane and helicopter; perfect governor mode for helicopter
●BEC circuit，SBEC output 6A
●With new generation MOSFET, lower internal resistance, stronger resistance to impulse current
●MOSFET in independent PCB, the thickness of copper plate reaches 800μm, the thickness of high current ESC copper plate reaches 1200μm). Super low impedance and strongest resistance to high current which could effectively reduce the temperature rise, improve the quality and make the ESC work at optimal efficiency
●It can be compatible with a programming card (optional component), which has a simple and visual surface so as to change the parameters conveniently at any time anywhere (reference to the manual for programming card).

Type: 44A/SBEC

HiModel COOL ESCs for Airplanes/Helicopters

Type

Continious Current（A）

Max Current（A）

Lipo Cell Number

BEC Mode

BEC Volt/Current

Weight

Dimension (LxWxH)mm

COOL 6A/LBEC

２

Linear Mode

5V/0.8A

25*12*4

COOL 11A/LBEC

11A

13A

２- 3

Linear Mode

5V/2A

10G

25*17*3

COOL 13A/LBEC

13A

16A

２- 3

Linear Mode

5V/2A

12g

25*17*5

COOL 22A/SBEC

22A

25A

２- 4

Switch Mode

5.0V/4A

27g

32*24*11

COOL 33A/SBEC

33A

40A

２- 4

Switch Mode

5.0V/4A

29g

32*24*11

COOL 41A/SBEC

41A

50A

２- 4

Switch Mode

5.0V/4A

35g

32*24*11

COOL 44A/SBEC

44A

55A

２- 6

Switch Mode

5.5V/6A

55g

51*31*12

COOL 66A/SBEC

66A

80A

２- 6

Switch Mode

5.5V/6A

57g

51*31*12

COOL 88A/SBEC

88A

110A

２- 6

Switch Mode

5.5V/6A

63g

51*31*13

COOL 110A/SBEC

110A

150A

２- 6

Switch Mode

5.5V/6A

74g

51*31*13

COOL 155A/SBEC

155A

200A

２- 6

Switch Mode

5.5V/6A

79g
