HiModel COOL Series Brushless Speed Controller for airplane/helicopter etc.

Features：

●Super fine and smooth touch of speed controlling, first-rate accurate linearity and quick-respond speed of throttle.
●With High Performance CPU of 24MHZ, Separate voltage regulator IC for MCU (Micro Controller Unit), high capability of anti-interference to decrease the possibility out of control.
●Low-voltage cut-off protection of battery, blocked rotation protection and throttle signal lose protection, etc. All these functions can prolong the service life of ESC effectively.
●Good and safe performance of power-on. The motor won’t be started no matter which position the throttle stick is on when the battery is connected.
●Low torque "soft start," protecting gear box
●LED status indicator (LED keep shine under full throttle)
●Easy Installation, can change motor rotation direction by Prog-card
●Compatible for fixed wing airplane and helicopter; perfect governor mode for helicopter
●BEC circuit，SBEC output 6A
●With new generation MOSFET, lower internal resistance, stronger resistance to impulse current
●MOSFET in independent PCB, the thickness of copper plate reaches 800μm, the thickness of high current ESC copper plate reaches 1200μm). Super low impedance and strongest resistance to high current which could effectively reduce the temperature rise, improve the quality and make the ESC work at optimal efficiency
●It can be compatible with a programming card (optional component), which has a simple and visual surface so as to change the parameters conveniently at any time anywhere (reference to the manual for programming card).

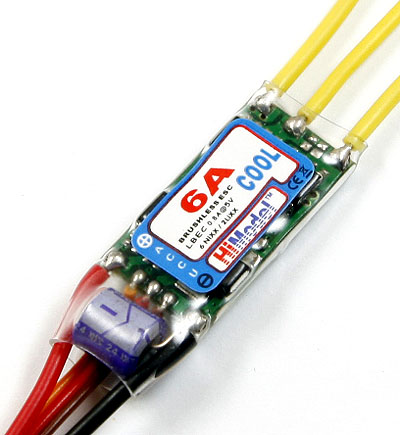

Type: 6A/LBEC

HiModel COOL ESCs for Airplanes/Helicopters
Type	Continious Current（A）	Max Current（A）	Lipo Cell Number	BEC Mode	BEC Volt/Current	Weight	Dimension (LxWxH)mm
COOL 6A/LBEC	6A	7A	２	Linear Mode	5V/0.8A	4g	25*12*4
COOL 11A/LBEC	11A	13A	２- 3	Linear Mode	5V/2A	10G	25*17*3
COOL 13A/LBEC	13A	16A	２- 3	Linear Mode	5V/2A	12g	25*17*5
COOL 22A/SBEC	22A	25A	２- 4	Switch Mode	5.0V/4A	27g	32*24*11
COOL 33A/SBEC	33A	40A	２- 4	Switch Mode	5.0V/4A	29g	32*24*11
COOL 41A/SBEC	41A	50A	２- 4	Switch Mode	5.0V/4A	35g	32*24*11
COOL 44A/SBEC	44A	55A	２- 6	Switch Mode	5.5V/6A	55g	51*31*12
COOL 66A/SBEC	66A	80A	２- 6	Switch Mode	5.5V/6A	57g	51*31*12
COOL 88A/SBEC	88A	110A	２- 6	Switch Mode	5.5V/6A	63g	51*31*13
COOL 110A/SBEC	110A	150A	２- 6	Switch Mode	5.5V/6A	74g	51*31*13
COOL 155A/SBEC	155A	200A	２- 6	Switch Mode	5.5V/6A	79g	52*31*17
Program Card III						10g

Includes:
1 x ESC
