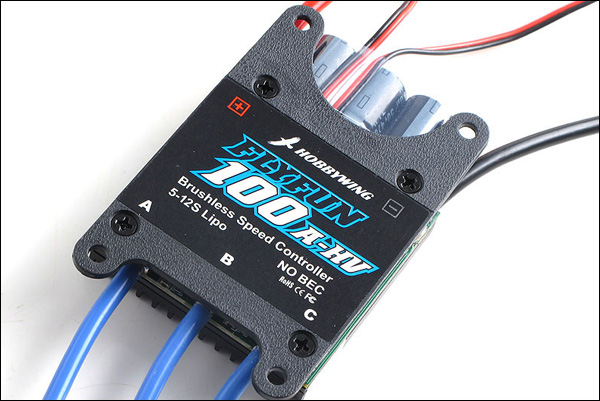

Hobbywing 100A 5-12S Electric Speed Control ESC Flyfun-100A-HV
Customers rating.
Add To Wish List
Added:2015/04/24
Updated:2015/04/24
Follow Us on:


  Tags: Hobbywing 100A 5-12S Electric Speed Control ESC Flyfun-100A-HV

Features:
1 Safety arming feature:  Regardless the throttle stick position, the motor will not spin after battery connected.

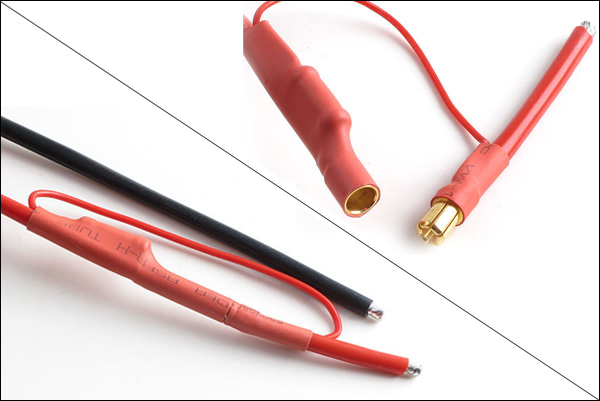

2 Anti-spark circuit eliminates sparks when the battery pack is connecting with the ESC.
3 Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
4 User programmable.
5 Compatible with Lipo battery and NiCd/NiMH battery.
6 Internal timing can be changed to be suitable for different brushless motors.
7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
8 The throttle signal is transfered through optical / electrical coupled system to avoid electromagnetic interference.
9 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
Specifications:

Hobbywing 100A 5-12S Electric Speed Control ESC Flyfun-100A-HV
Specification

1 Output:  Continuous 100A, Burst 120A up to 10 seconds.
2 Input Voltage:  5-12 cells lithium battery or 15-36 cells NiCd/NiMH battery.
3 BEC:  None.
4 Refresh rate of the throttle signal: 50Hz to 432Hz.
5 Control Signal Transmission: Optical / electrical coupled system.
6 Max Speed:  210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
      (BLM = BrushLess Motor)
7 Size:  88mm (L) * 55mm (W) * 18mm (H).
8 Weight:  112g.

Includes/Requires:
Includes:
1 x ESC
