Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushed Speed Control (ESC) Hobbywing 80A QuicRun WP Crawler Brushed Speed Control
SKU:  WPCB-80A
Browse HOBBYWING

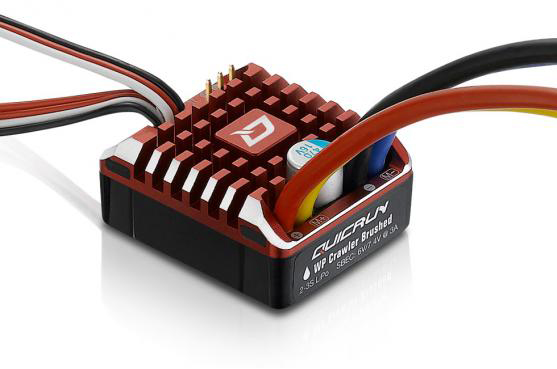

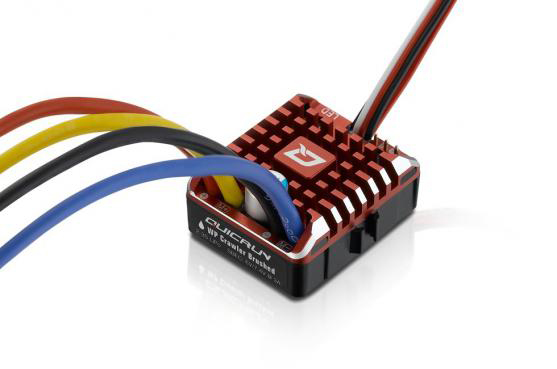

Hobbywing 80A QuicRun WP Crawler Brushed Speed Control
Customers rating.
Add To Wish List
Added:2016/11/18
Updated:2016/11/18
Follow Us on:


  Tags: Hobbywing QuicRun WP Crawler Brushed Speed Control ESC

Features:

Special Design for 1/10th, 1/8th Crawlers

The reliable hardware combined with powerful software (features an array of
programmable parameters like start force, drag brake rate, and etc.)
creates an ideal power solution to 1/10th, 1/8th rock crawlers.


Best For Crawler

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology

The adjustable PWM frequency combined with advanced DEO/freewheeling technology
guarantees users great throttle linearity and driving feel.


Adjustable PWM Frequency

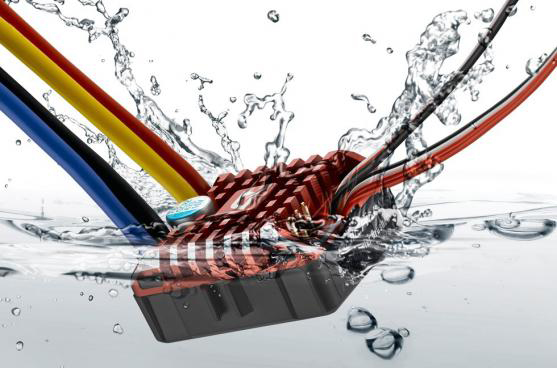

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the WP-Crawler-Brushed
to be used in all weather conditions without any issue of
damage caused to the ESC from water or debris.


Applicable to All
Weather Conditions

Excellent Braking Performance

Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force
greatly improve the brag brake and allow users to have the excellent braking performance.


Excellent Braking
Performance

Super Internal BEC

The built-in switch mode BEC with a maximum output of 6A and voltage
adjustable between 6V and 7.4V allows the use of various standard servos,
high voltage servos and other peripherals.


Super Internal BEC

15 Programmable Parameters

The WP-Crawler-Brushed, which features 15 programmable parameter items,
is applicable to various vehicles and tracks.


15 Programmable
Parameters

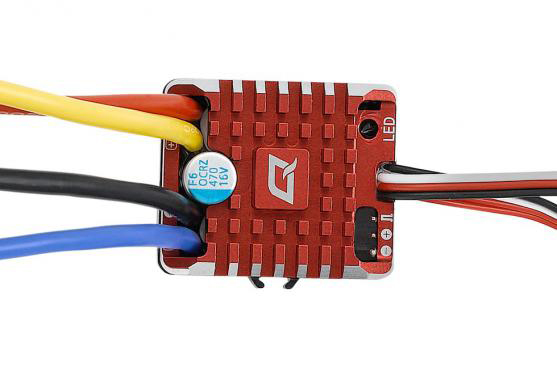

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling
performance or connect the ESC to a LED program box for ESC programming.


Separate Programming/Fan Port

Separate Programming Port

A LED Program Box is Included

A standard, dedicated LED program box (included in the box) allows users to
program the WP-Crawler-Brushed easily.



Specifications:

Hobbywing 80A QuicRun WP Crawler Brushed Speed Control

Product Name

QuicRun WP Crawler Brushed

Product Number

30112750

Type

Scale

1/8th & 1/10th

Brushed/Brushless

Brushed

Waterproof

Waterproof

Specifications

Cont./Peak Current

80A/400A

Input Voltage

2-3S Lipo/5-9 Cell NiMH

BEC Output

Switch  Mode: 6V/7.4V@3A

Wires & Connectors

Input Wires

Red-14AWG-200mm*1 / Black-14AWG-200mm*1

Output Wires

Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1

Input Connectors

XT60 Connectors

Output Connectors

No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

SET Button on ESC

Supported

LED Program Box

Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

Program Port

Separate Program Port

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

36.2x31.6x17.0mm

Weight

58.5g (w/Wires)

Applications

Motors

Brushed Motor (540/550/775 size motors)

Vehicles

1/8th,1/10th Rock Crawlers

KV Rating/T Count

Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<30000@7.4V
Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<20000@7.4V

Includes/Requires:
Includes:
1 x ESC
