   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing FlyFun Series 12A 2-4S Electric Speed Control ESC FlyFun-12AE
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  HP12A3
Browse HOBBYWING

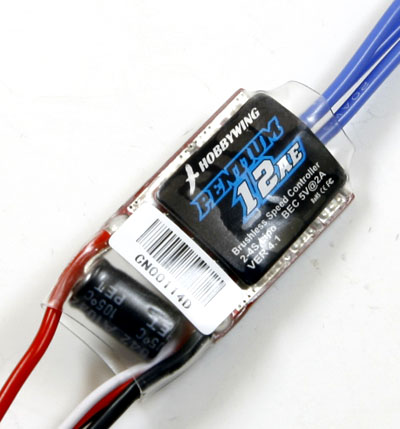

Hobbywing FlyFun Series 12A 2-4S Electric Speed Control ESC FlyFun-12AE
Customers rating.
Add To Wish List
Added:2015/04/14
Updated:2022/03/14
Follow Us on:


  Tags: Hobbywing FlyFun Series 12A 2-4S Electric Speed Control ESC FlyFun-12AE

Features:

Features

1 Safety arming feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
2 Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
3 User programmable.
4 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
5 Compatible with Lipo battery and NiCd/NiMH battery.
6 Internal timing can be changed to be suitable for different brushless motors.
7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.

Specifications:

Hobbywing FlyFun Series 12A 2-4S Electric Speed Control ESC FlyFun-12AE
Specification

1 Output:  Continuous 12A, Burst 15A up to 10 seconds.
2 Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery.
3 BEC: 2A / 5V Linear mode BEC.
4 Refresh rate of the throttle signal: 50Hz to 432Hz.
5 Max Speed:  210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
      (BLM = BrushLess Motor)
6 Size: 38mm*18mm*7mm.
7 Weight:  10.2g.

Includes/Requires:
Includes:
1 x ESC
