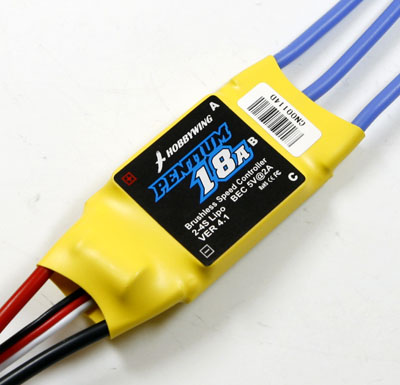

Hobbywing FlyFun Series 18A 2-4S Electric Speed Control ESC FlyFun-18A |
|
|||||||
|
|||||||||
Tags: Hobbywing FlyFun Series 18A 2-4S Electric Speed Control ESC FlyFun-18A |
Features
1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2 Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
3 User programmable.
4 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
5 Compatible with Lipo battery and NiCd/NiMH battery.
6 Internal timing can be changed to be suitable for different brushless motors.
7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
8 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
Hobbywing FlyFun Series 18A 2-4S Electric Speed Control ESC FlyFun-18A
Specification
1 Output: Continuous 18A, Burst 22A up to 10 seconds.
2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery.
3 BEC: 2A / 5V Linear mode BEC.
4 Refresh rate of the throttle signal: 50Hz to 432Hz.
5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
6 Size: 55mm*25mm*6mm.
7 Weight: 21g.
