   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing Platinum 150A 3-8S Speed Control Platinum Pro HV-150A | V5
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  PLT150A
Other Similar Items
Browse HOBBYWING

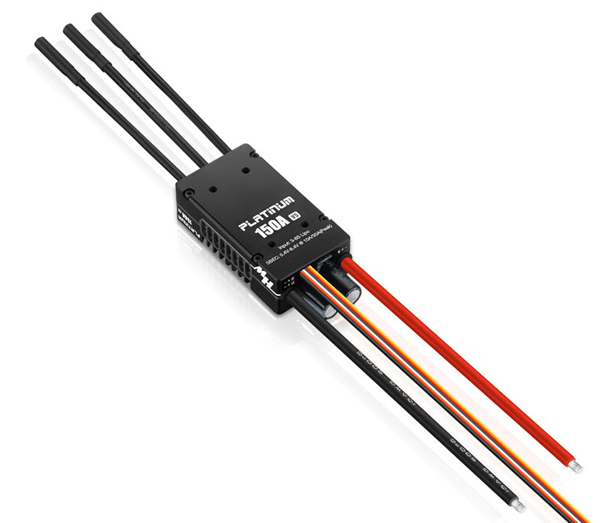

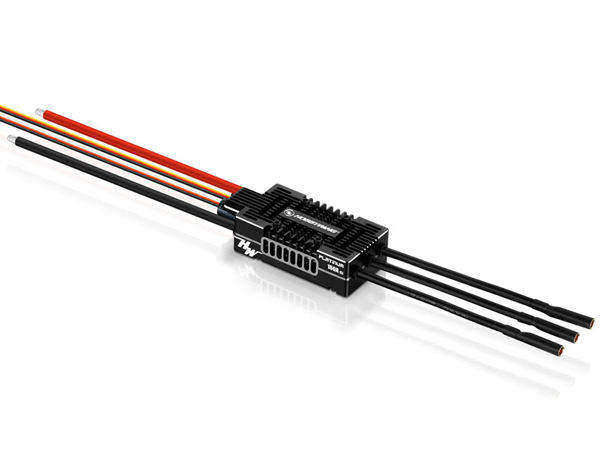

Hobbywing Platinum 150A 3-8S Speed Control Platinum Pro HV-150A | V5
Customers rating.
Add To Wish List
Bookmark and Share
Added:2022/05/26
Updated:2025/02/17
Follow Us on:

P41752545919


PRICE(USD):
    $126.32   Back Order
Member PRICE:
    Sign in or Sign up for member price
 Notify Me When Available.     Freight Calculator
QTY:


  Tags: Hobbywing  Platinum  150A  3-8S  Speed  Control  Platinum  Pro  HV-150A

Specifications:

Hobbywing Platinum 150A 3-8S Speed Control Platinum Pro HV-150A | V5


Product Number

30203500

Type

Brushed/Brushless

BL

High Voltage/Regular

Regular

Specifications

Cont./Peak Current

150A/180A

Input Voltage

3-8S LiPo

BEC Output

Switch Mode:5-8V,10A

Wires & Connectors

Input Wires

Red-10AWG-150mm*1/Black-10AWG-150mm*1

Output Wires

Black-12AWG-120mm*3

Input Connectors

No

Output Connecotors

4.0mm Gold Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

Transmitter

Not Supported

LED Program Card

Not Supported

LED Program Box

Not Supported

LCD Program Box

Supported

WiFi Module

Supported

Program Port

Separate Program Port

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

83x37x21mm

Weight

140g


Includes/Requires:
Includes:
1 x  ESC
