1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected. 2 Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters. 3 User programmable. 4 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field. 5 Compatible with Lipo and NiMH battery. 6 Timing can be changed to be suitable for different brushless motors. 7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Specifications:

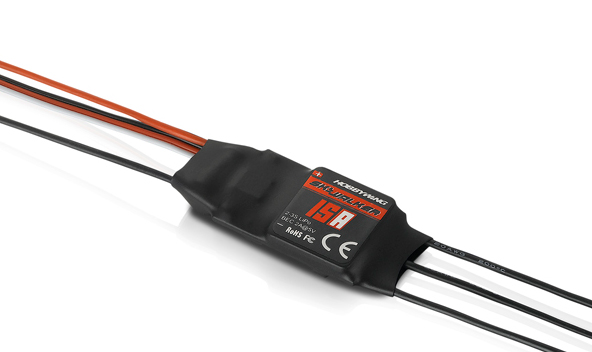

Hobbywing SKYWALKER 2-3S 15A Electric Speed Control (ESC)
1 Output: Continuous 15A, Burst 20A up to 10 seconds. 2 Input Voltage: 2-3S Lipo, 5-9 cells NiMH. 3 BEC: 2A / 5V Linear mode BEC. 4 Refresh rate of the throttle signal: 50Hz to 432Hz. 5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. (BLM = BrushLess Motor) 6 Size: 48mm*22.5mm*6mm. 7 Weight: 16.5g.
Includes/Requires:
Includes: 1 x ESC
