   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Boats Hobbywing Seaking Pro 120A Waterproof Brushless ESC for Boats SeaKing-120A-Pro (Professional Edition)
SKU:  SKP120A
Browse HOBBYWING

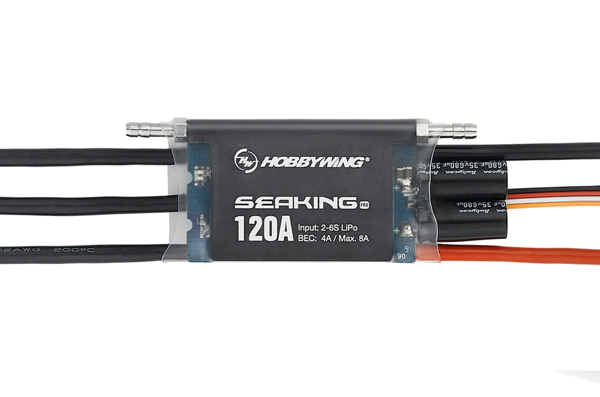

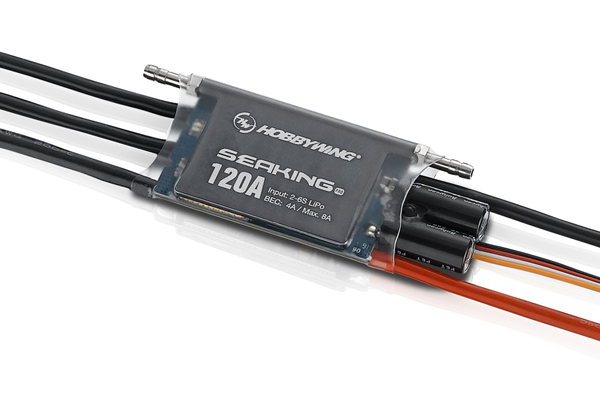

Hobbywing Seaking Pro 120A Waterproof Brushless ESC for Boats SeaKing-120A-Pro (Professional Edition)
Customers rating.
Add To Wish List
Added:2016/11/18
Updated:2016/11/18
Follow Us on:


  Tags: Hobbywing Seaking Pro Waterproof Brushless ESC for Boats

Features:
Competition Design
The light-weight of the Pro 120A is designed to meet the users’ requirements of a light
weight product for all marine competition which weight is a factor of speed and
endurance. The core program for top-level competition products guarantees the user
first-class control and “abundant” programmable parameter items for different
competition environments. (* The ESC is especially applicable to ECO/MONO1)

Splash-proof

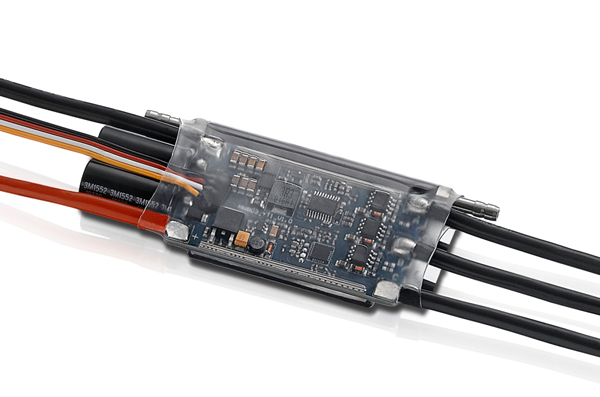

The whole circuit board and all the components on it have gone through nano-coating
treatment; this makes the Seaking Pro 120A ESC splash-proof.

High Voltage Built-in BEC
The built-in switch mode BEC with a maximum output of 8A and adjustable
voltage of 6V/7.4V make the ESC compatible with various high voltage servos.

High Durability & Reliability
Reliable hardware (i.e. MOSFETs with extremely low internal resistance) combined with advanced
software (features low-voltage cutoff protection, thermal protection, throttle signal loss protection, and
etc) guarantees the durability and reliability of the ESC and relevant electronic devices.


Innovative Turbo Function
The world’s first marine ESC to have implemented the turbo timing function
which will give the user the edge over the competition with instant turbo boost.


Programming/Upgrading Wirelessly

With Hobbywing’s WiFi module and iPhone or an Android phone (with the
HOBBYWING WiFi Link software installed), the user can remotely program
parameters or upgrade firmware without leaving the control stand.


Efficient Cooling System
The Hobbywing patented heat-conductive copper bar cover on the power board
of the ESC combined with the water cooling module efficiently and effectively
transfers heat to the outside thus keeping your ESC as cool as possible.

Regular Firmware Updates Free of Charge
You can upgrade the ESC with the Hobbywing WiFi/USB LINK software, a WiFi
module/LCD program box and a smartphone /laptop. Hobbywing updates its ESC
firmware regularly giving you upgraded features more often when available.
Specifications:

 Hobbywing Seaking Pro 120A Waterproof Brushless ESC for Boats  SeaKing-120A-Pro (Professional Edition)

Product Name

Seaking Pro 120A

Product Number

30302361

Type

Brushed/Brushless

BL

Waterproof

Waterproof (IP55)

Specifications

Cont./Peak Current

120A/760A

Input Voltage

2-6S Lipo/6-18 Cell NiMH

BEC Output

Switch Mode: 6V/7.4V,4A

Wires & Connectors

Input Wires

Red-12AWG-200mm*1/Black-12AWG-200mm*1

Output Wires

Black-12AWG-150mm*3

Input Connectors

No

Output Connectors

4.0mm Gold Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

Transmitter

Supported

LED Program Box

Not Supported

LCD Program Box

Supported

WiFi Module

Supported

Program Port

Separate Program Wire

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

96.6x37.9x10.3mm

I.D./O.D. of the Water Cooling Pipe

Ф2.0/5.5 mm

Weight

87.5g

Applications



ECO, Mono1/Other Competition Boats (≤100cm)


Includes/Requires:
Includes:
1 x ESC Seaking Pro
