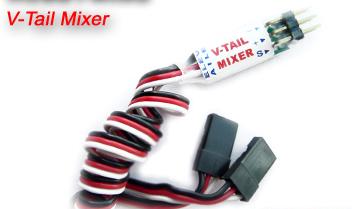

Hobbywing V-TAIL MIXER

Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.

This device is an advanced electronic servo mixer for "Flying Wings" or "V-Tail Aircraft". With such a device, both elevator and aileron/rudder functions can be combined together.

1 Specification
1.1 Size: 31mm(L) * 8mm(w) * 8mm(H)
1.2 Weight: 4g (Input wires are included)
1.3 Mixing Rate: 1:1 (Fixed)
1.4 Precision: 200 Steps

Note：

Always be sure to observe the proper housing on the connector pins and receiver sockets. Please install this device as the diagram shown.

1.

Plug the AILE and ELEV connector into the receiver aileron and elevator channels respectively as the wiring diagram shown.
2.

Connect the AILE and ELEV control servos to SERVO 1 & SERVO 2 of the V-tail mixer in accordance with the wiring diagram.
3.

Do not get wet on the V-tail mixer.
4.

Any Modification will void warranty at owner's risk.
