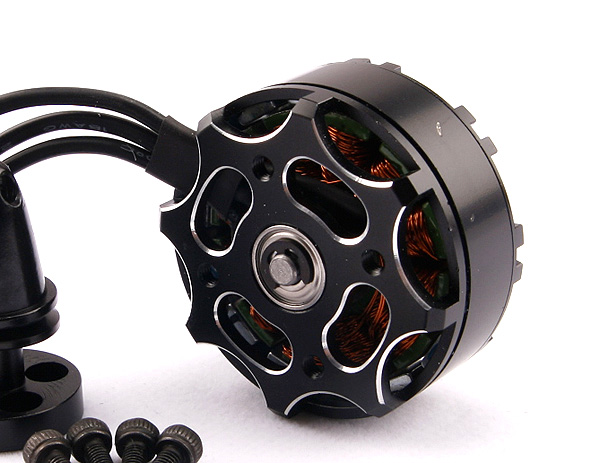

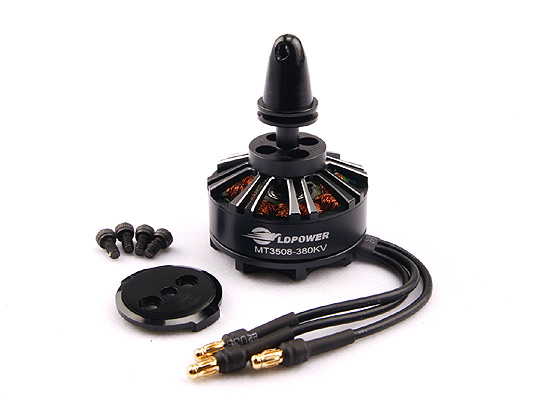

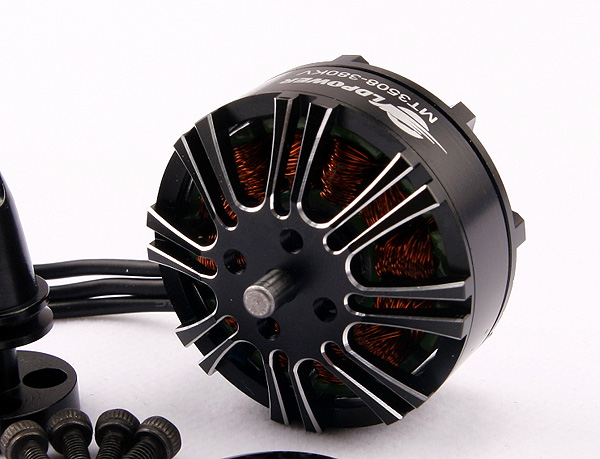

LD-Power MT3508 380KV Brushless Motor for Multicopter (5-6S)

SKU: MT350838

Browse LD-Power

LD-Power MT3508 380KV Brushless Motor for Multicopter (5-6S)

Customers rating.

Add To Wish List

Added:2013/12/05
Updated:2013/12/05

Follow Us on:

Follow @HiModel

Tags: multi-rotor brushless motor ldpower

Specifications:

LD-Power MT3508 380KV Brushless Motor for Multicopter (5-6S)

Model	MT3508
Motor Diameter	42mm
Motor Length	27mm
Stator Diameter	35mm
Stator Length	8mm
Shaft	4mm
Weight	90
Batteries	3-6Cells
No Load Current	0.4A

Voltage(V)	Propeller (inch)	Throttle	Current (A)	Watts(W)	Thrust(G)	RPM (RPM/Min)	Efficiency (G/W)
18.5	APC12*3.8	50%	1.5	27.75	421	3486	15.17
		65%	2.3	42.55	567	4167	13.33
		75%	4.7	86.95	898	4770	10.33
		85%	6	111	987	5302	8.89
		100%	8	148	1180	5627	7.97
	APC14*4.7	50%	2.5	46.25	597	3009	12.91
		65%	4.1	75.85	809	3544	10.67
		75%	7	129.5	1004	4112	7.75
		85%	8.6	159.1	1123	4356	7.06
		100%	11.6	214.6	1356	4674	6.32
	DJI5*5	50%	2.5	46.25	537	3109	11.61
		65%	4.5	83.25	753	3874	9.05
		75%	7.5	138.75	1104	4452	7.96
		85%	9.6	177.6	1324	4856	7.45
		100%	12.6	233.1	1456	5174	6.25
22.2	APC11*4.7	50%	1.8	39.96	516	4268	12.91
		65%	2.5	55.5	689	4879	12.41
		75%	5	111	987	5656	8.89
		85%	6.7	148.74	1167	6442	7.85
		100%	8.4	186.48	1356	6789	7.27
	APC12*3.8	50%	2.3	51.06	521	4486	10.20
		65%	3.8	84.36	767	4667	9.09
		75%	6	133.2	1098	5770	8.24
		85%	8.1	179.82	1324	6122	7.36
		100%	10.5	233.1	1580	6627	6.78
	APC13*4	50%	1.5	33.3	458	4349	13.75
		65%	2.3	51.06	657	5190	12.87
		75%	4	88.8	940	5589	10.59
		85%	5.6	124.32	1121	6654	9.02
		100%	7.1	157.62	1446	7809	9.17

Includes/Requires:

Includes:
1 x motor
1 x prop adaptor
1 x prop holding down plate
4 x screws
